Fig. 7.

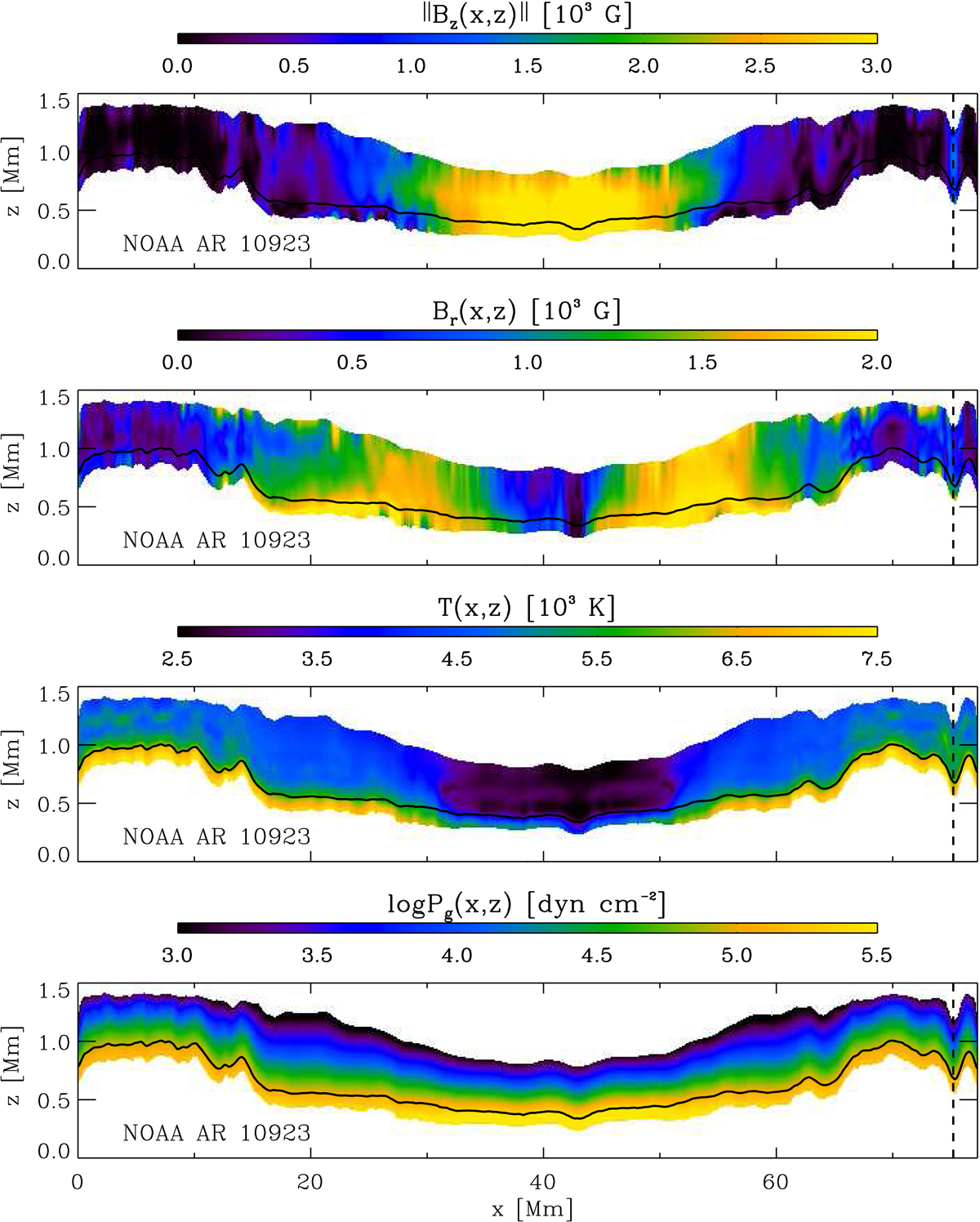

Physical parameters for the sunspot NOAA AR 10923 on a vertical slice (XZ-plane) along the blue line in Fig. 1 (left-hand panel). From top to bottom: vertical component of the magnetic field Bz, radial component of the magnetic field Br, temperature T, and logarithm of the gas pressure Pg. The solid black line indicates the location of the Wilson depression (z(τc = 1) level). See the text for more details.
