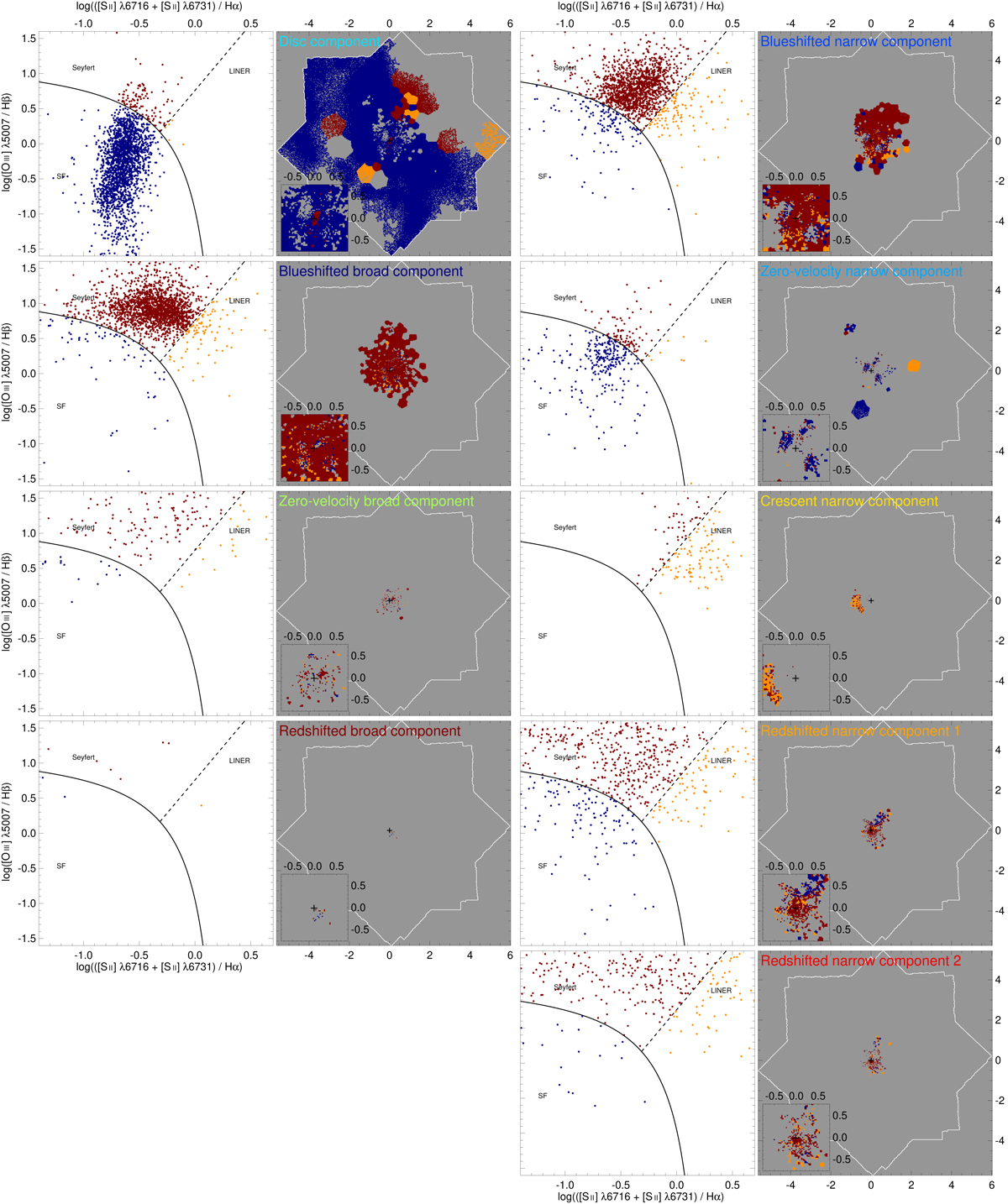

Nine sets of two panels are shown, one for each of the kinematic components. For each set, the left-hand panel corresponds to the [O III] λ5007/Hβ versus [N II] λ6563/Hα BPT diagram used to build the resolved BPT map in the right-hand panel. The colour coding indicates the η parameter defined in Erroz-Ferrer et al. (2019). The lines delimiting the regions in the BPT diagram are from Kewley et al. (2001, solid line) and Kauffmann et al. (2003, dashed line).
