Fig. 3

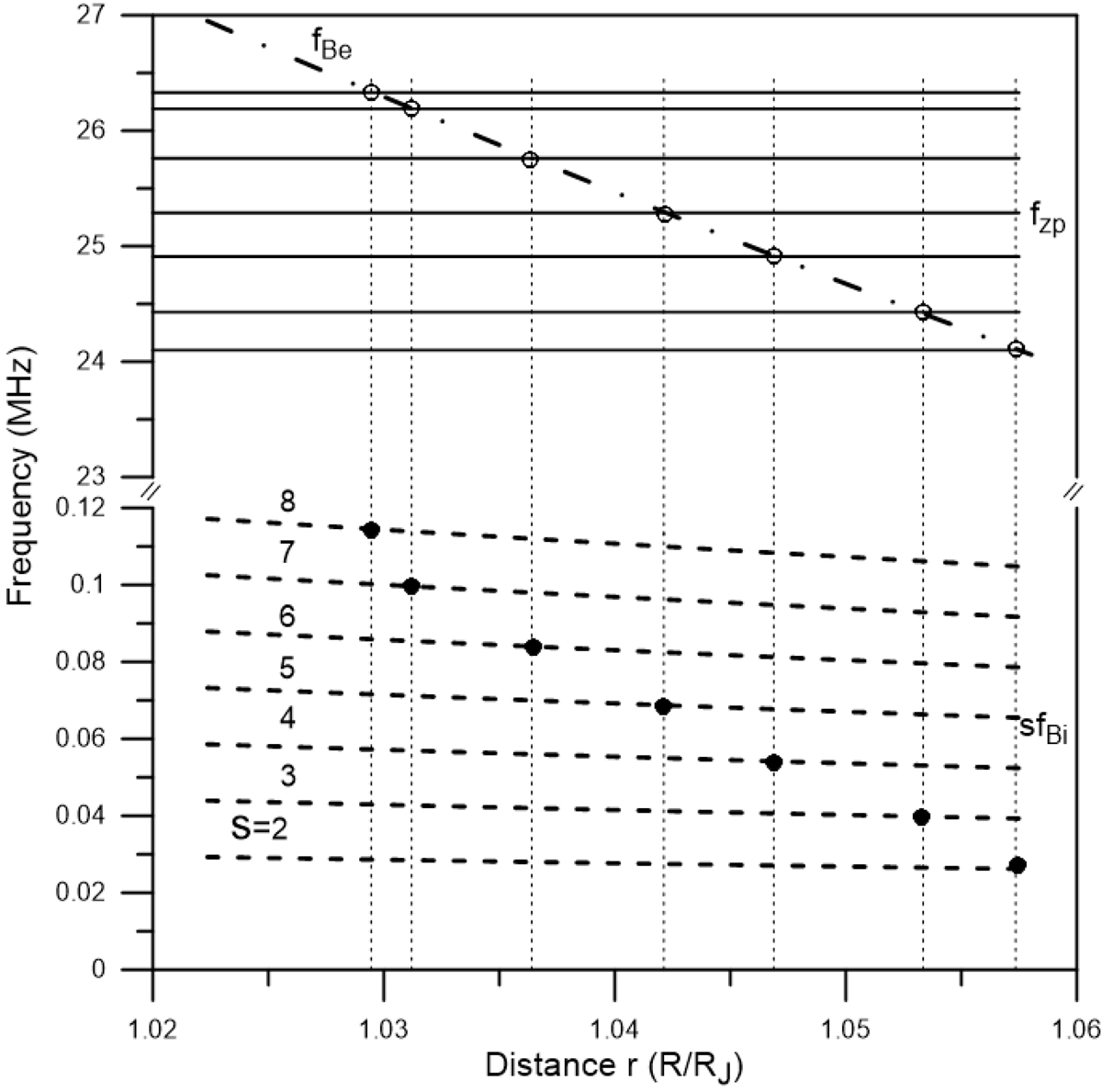

Scheme of generation of the radiation with ZS at the instant marked by a dashed line in Fig. 1. Electron cyclotron frequency fBe and harmonics of ion cyclotron frequency sfBi with harmonic s varying from2 to 8 as function of the distance r = R∕RJ from the planet center along the active magnetic tube (λIo = 117°) are shown. Horizontal solid lines denote the frequency of observed zebra stripes fzp. The regions where fBe = fzp are marked by circles on the fzp lines. The DPR regions are marked by filled circles on the sfBi curves. Starson the r axis show the distances at which the DPR regions at the harmonics s varying 2 to6 are located.
