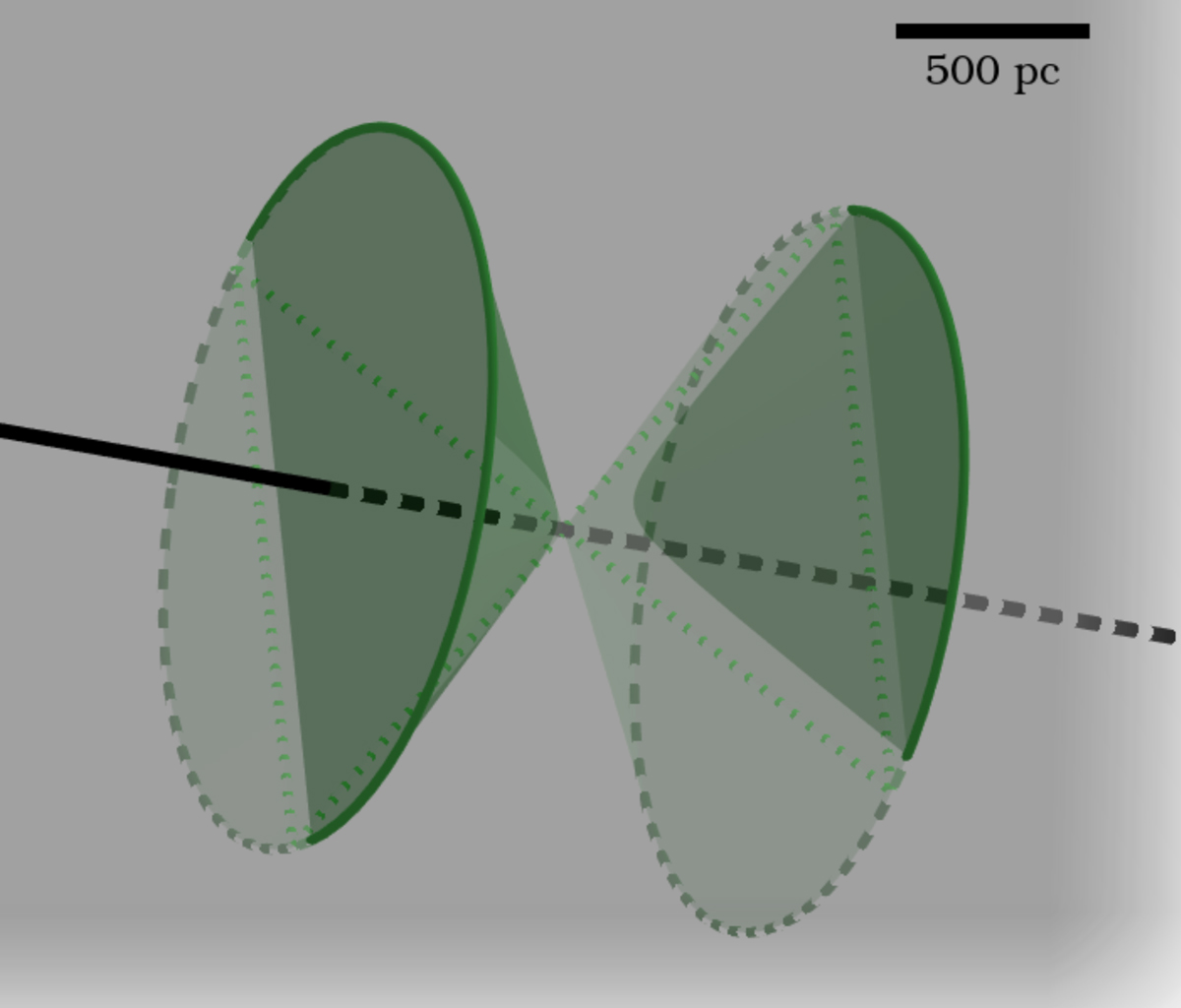

Fig. 5.
3D scheme for the geometry of NGC 5643 derived from the NLR modeling by Fischer et al. (2013). The green bicone indicates the AGN outflow, and its axis is illustrated as a black line. The gray plane corresponds to the disk of the host galaxy. Shaded dark and light green regions are in front of and behind the galaxy disk, respectively. North is up and east is left.
