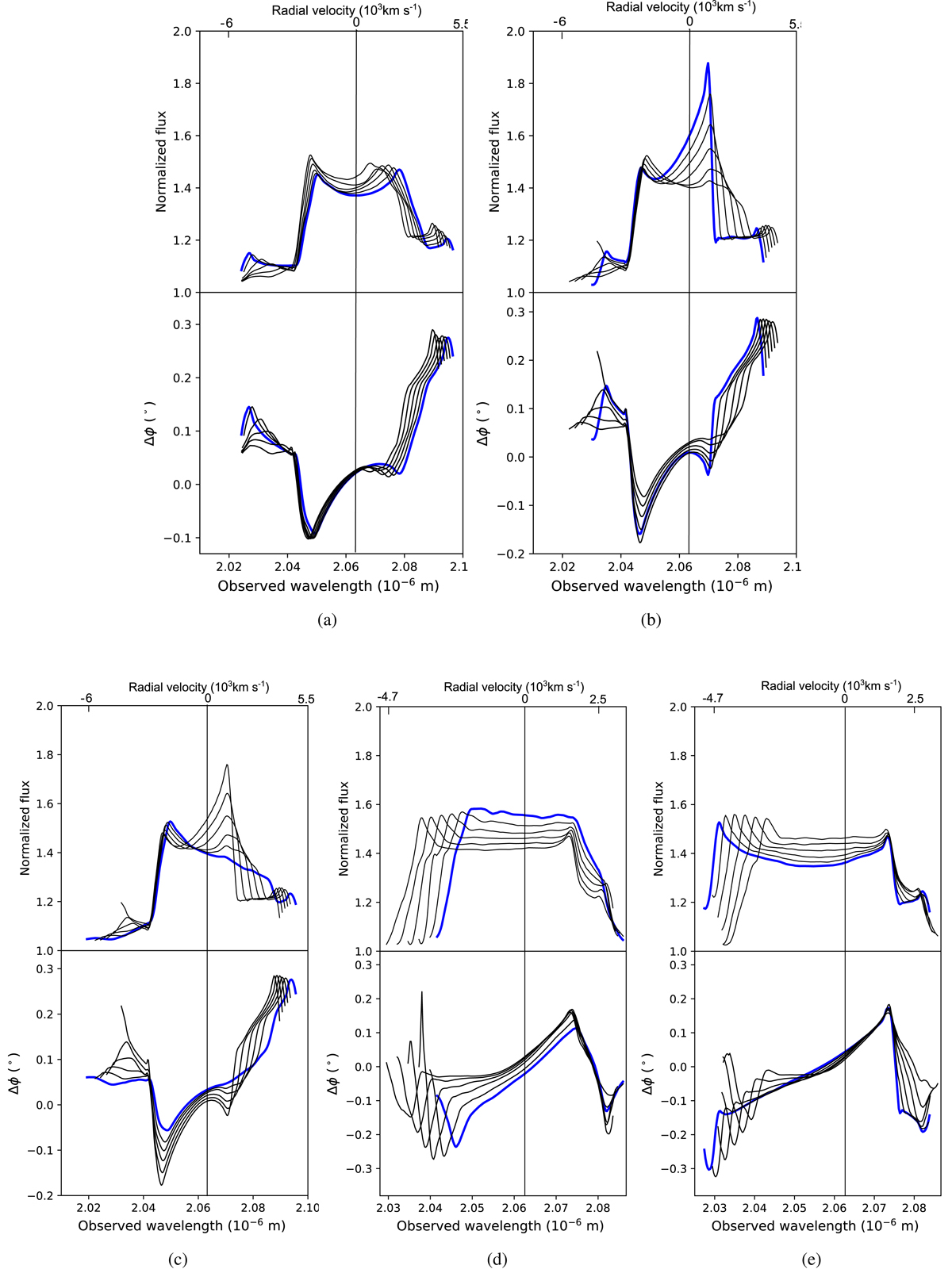

Fig. C.2.
Same as Fig. C.1 but for different SMBHs and clouds’ orbital parameters. Plot (c): rnd stands for randomly chosen samples of orbital elements. ℑ = 𝒰(l, r) stands for inclination ranges from 𝒰(−l, l) up to 𝒰(−r, r). (a) i0 = 45° ;ik = 𝒰(10° ,90° ), δik = 10°, Ωk = 200°, ωk = 210°, ek = 0.5, k = 1, 2; 𝒥 = 𝒰(5° ,45° ), δ𝒥 = 5°, Ωc = 200°, ωc1 = 290° ,ωc2 = 210°, ec = 0.5, (b) i0 = 45° ;ik = 𝒰(90° ,10° ), δik = −10°, Ωk = 200°, ωk = 210°, ek = 0.5, k = 1, 2; 𝒥 = 𝒰(5° ,45° ), δ𝒥 = 5°, Ωc = 200°, ωc1 = 290°, ωc2 = 210° ,ec = 0 : 5, (c) i0 = 45° ;ik = 𝒰(10° ,90° ), δik = −10°, Ω1 = 200°, Ω2 = 100°, ωk = 210°, ek = 0.5, k = 1, 2; Ωc = 200° ,ωc1 = 150°, ωc2 = 210° ,ic1 = rnd(5° ,45° ), ic1 = (5° ,45° ), ec = 0.5, (d) i0 = 45° ;ik = 𝒰(90° ,10° ), δik = −10° ,Ωk = 5°, ω1 = 5°, ω2 = 180°, ek = 0.5, k = 1, 2; 𝒥 = 𝒰(5° ,45° ), δ𝒥 = 5°, ec = 0.5, Ωc = 100°, ωc1 = 5°, ωc2 = 180°, (e) i0 = 45° ;ik = 𝒰(5° ,45° ), δik = 10°, Ωk = 5°, ω1 = 5°, ω2 = 180° ,ek = 0.5, k = 1, 2; 𝒥 = 𝒰(5° ,45° ), δ𝒥 = 5°, Ωc = 100°, ωc1 = 5°, ωc2 = 180°, ec = 0.5.
