Fig. 19.

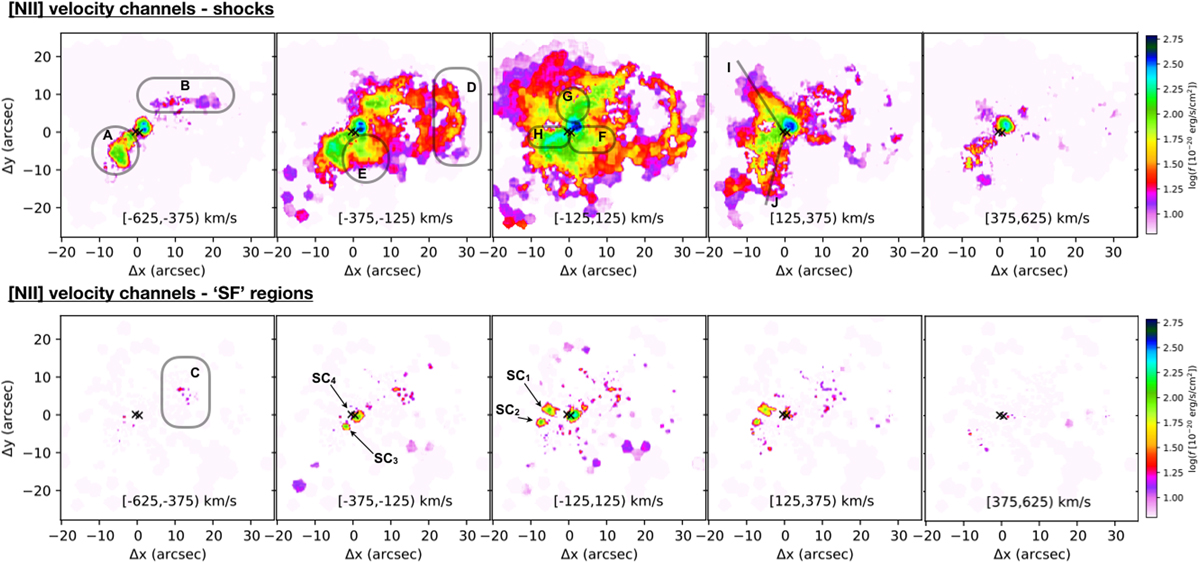

[N II] velocity channels extracted from the data cubes containing the best-fit profiles of shock (top) and SF-ionised (bottom) gas. Letters from A to J locate the main kinematic structures discussed in Sect. 10; in the bottom panels, we also mark the position of the four SCs.
