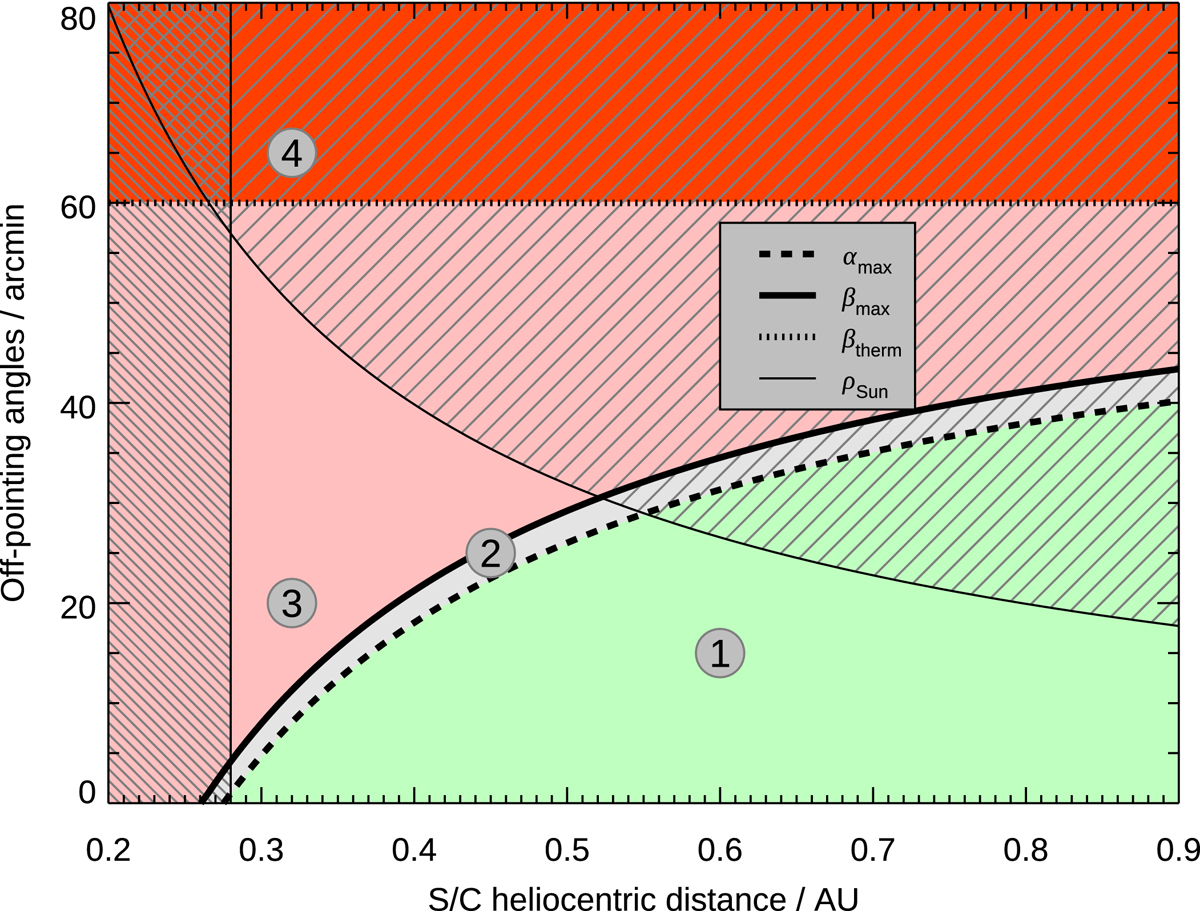

Fig. 38.


Spacecraft off-pointing angles (δ) most relevant for the Metis operations and safety. The Metis heat shield door operations are related to the four areas of the plot: (1) Metis science operations allowed, offset < αmax; (2) Metis external occulter cone is illuminated, αmax< offset < βmax, no harm to instrument, science data to be evaluated on ground; (3) Metis can stand indefinite off-pointing, βmax< offset < βtherm; (4) Metis is put on Safe mode and door closed, offset > βtherm. The descending solid curve represents ρSun, the angular size of the solar radius R.
