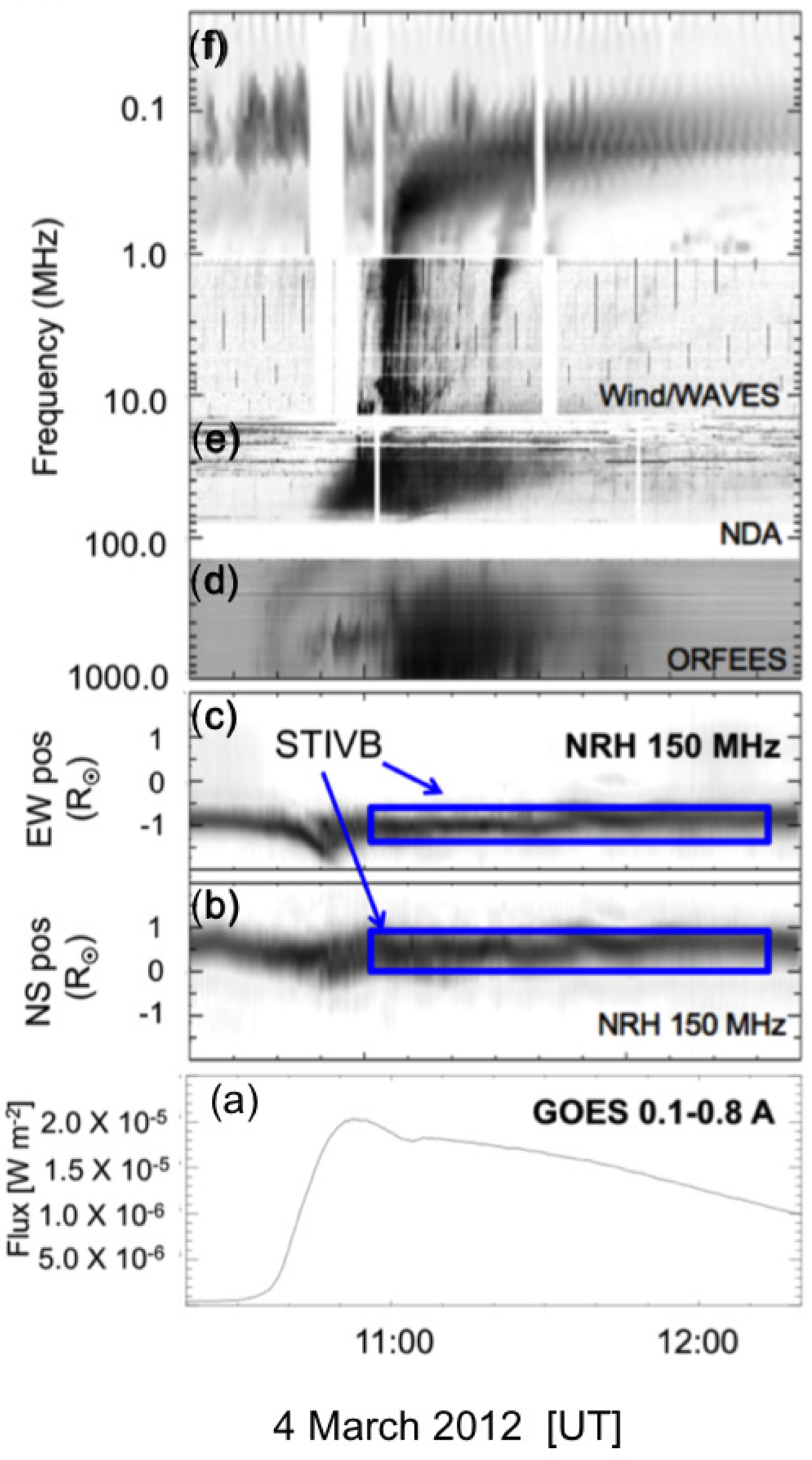

Fig. E.1.


Multifrequency plot of soft X-ray and radio emissions. Panels show: (a) soft X-ray profile; (b) 1D images projected on the solar north-south and (c) east-west directions (y axis graded in solar radii) at 150 MHz; the stationary type IV burst (STIVB) is enclosed by the blue rectangles. (d)–(f): dynamic spectra between 1000 MHz and 10 kHz.
