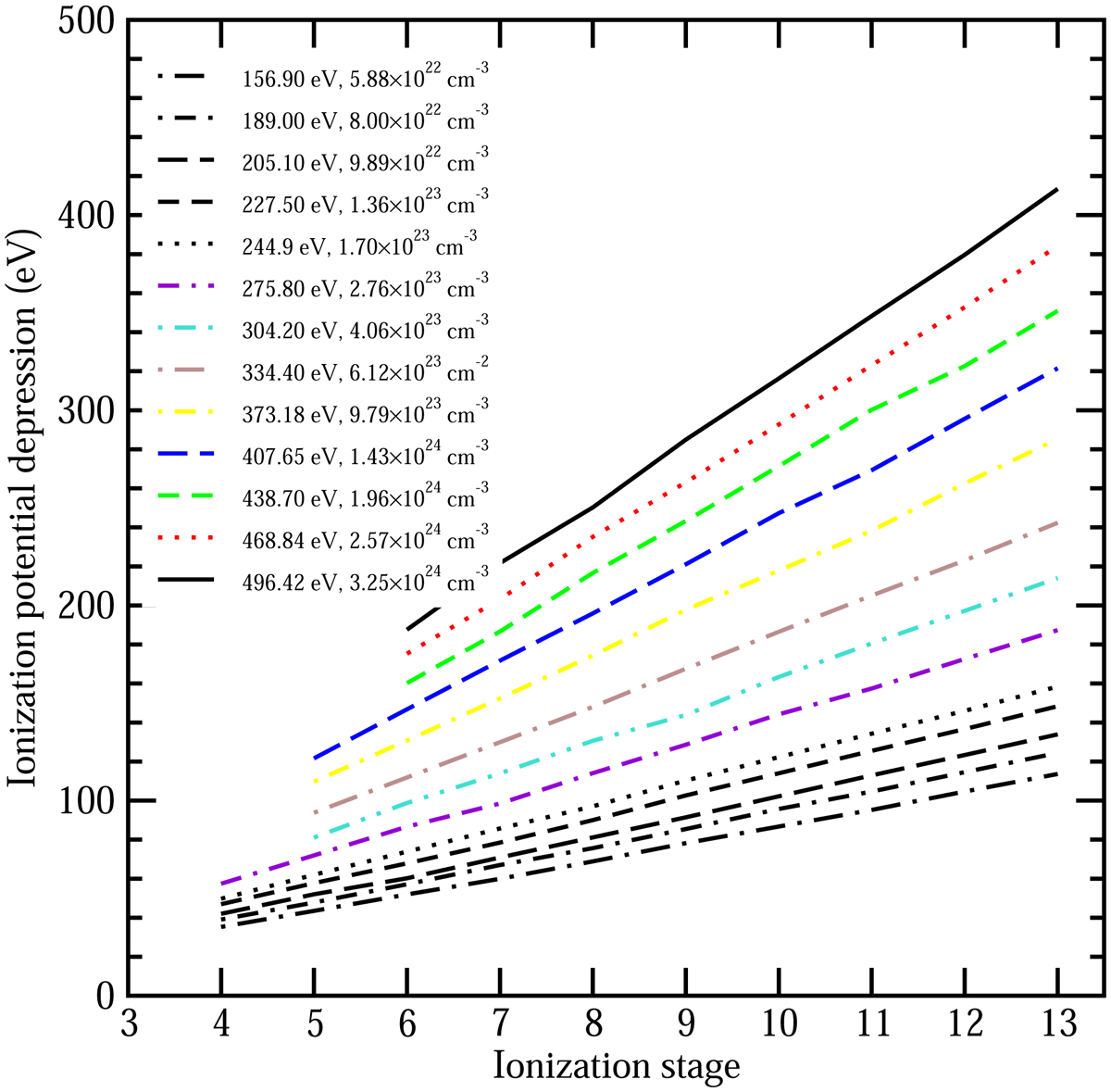

Fig. 3.

Ionization-potential depressions of Si plasmas at the electron densities of 5.88 × 1022 cm−3 (black long-dashed-dotted line), 8.0 × 1022 cm−3 (black short-dashed-dotted line), 9.89 × 1022 cm−3 (black long-dashed line), 1.36 × 1023 cm−3 (black short-dashed line), 1.7 × 1023 cm−3 (black dotted line), 2.76 × 1023 cm−3 (violet dashed-dashed-dotted line), 4.06 × 1023 cm−3 (turquoise dashed-dotted-dotted line), 6.12 × 1023 cm−3 (brown long-dashed-dotted line), 9.79 × 1023 cm−3 (yello short-dashed-dotted line), 1.43 × 1024 cm−3 (blue long-dashed line), 1.96 × 1024 cm−3 (green short-dashed line), 2.57 × 1024 cm−3 (red dotted line), and 3.25 × 1024 cm−3 (black solid line). They are taken from the standard solar model (Bahcall & Ulrich 1988; Guenther et al. 1992).
