Fig. B.1.

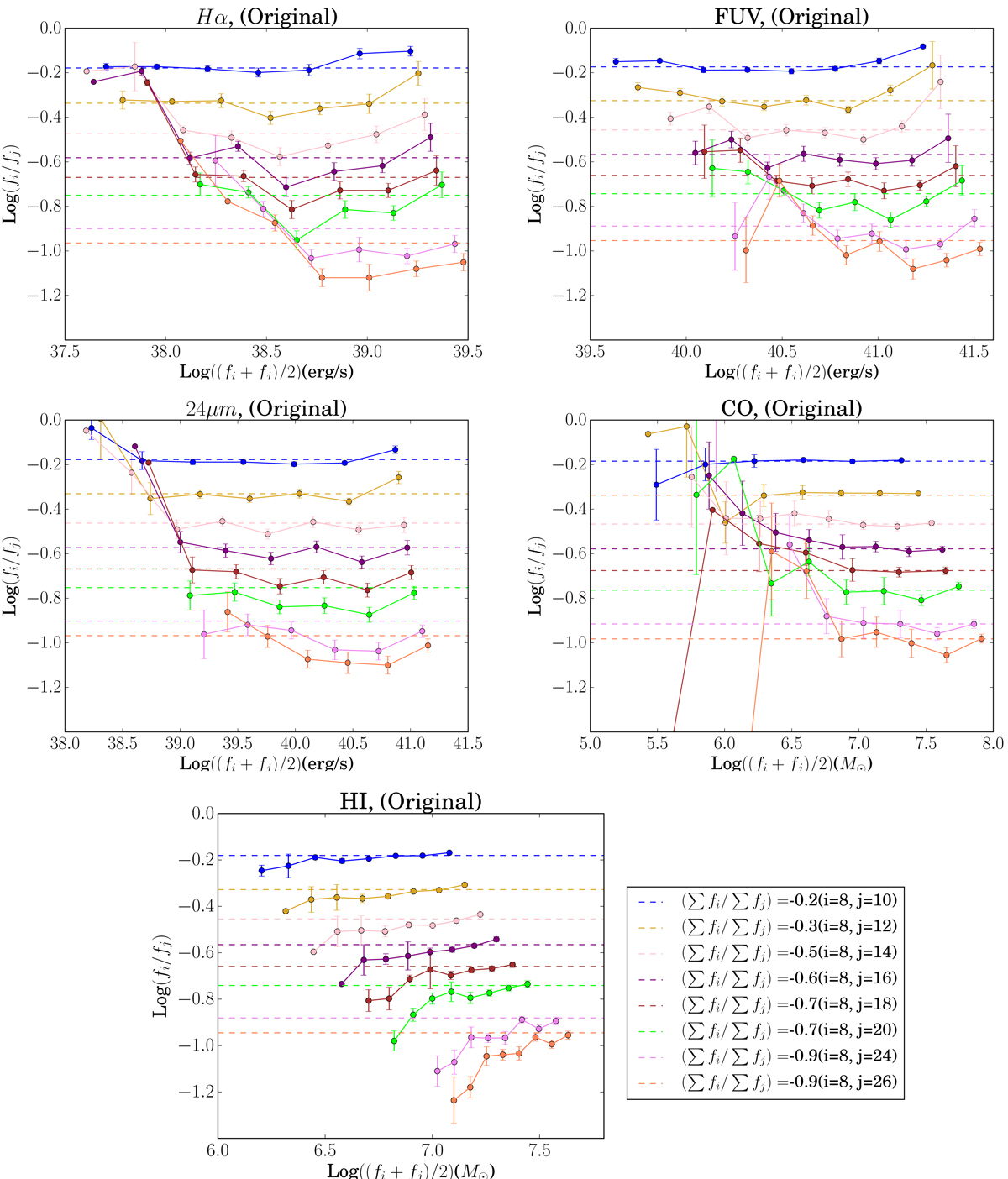

Flux (mass) in apertures of size varying from 0.6–2.0 kpc normalised by the flux (mass) in an aperture of size ∼500 pc compared to the average flux (mass) in the corresponding apertures. The solid colour lines show the normalised flux (mass) while the dashed colour lines show the ratio of the total flux in the apertures under study, where i and j denote the aperture radii in arcsec. These figures correspond to analysis of the galaxy NGC 0628, for which the minimum radius (8″) and maximum radius (26″) correspond to physical sizes of ∼600 pc and 2 kpc, respectively.
