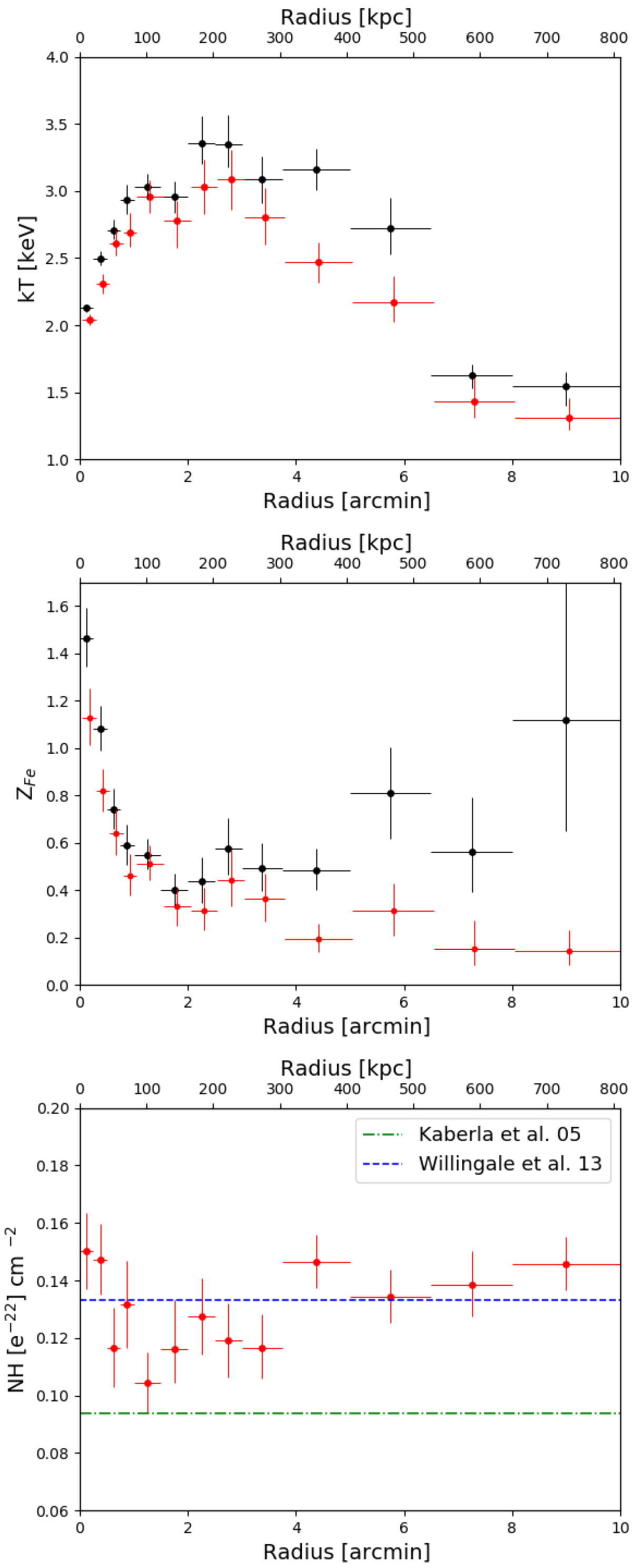

Fig. 10.

Radial temperature (upper panel) and metal abundance (middle panel) profiles of CIZAJ1824. Black points show the results from the standard analysis with NH fixed to the LAB value and energy band [0.5−10] keV and red points show the results with NH left free to vary in the fit (the points of each bin have been shifted slightly for visual clarity). Lower panel: galactic hydrogen column density profile of CIZAJ1824. The green dot-dashed line is the NH LAB value (Kalberla et al. 2005), and the blue dashed line is the total NH (NHI + NHII) value taken from Willingale et al. (2013).
