Fig. 10

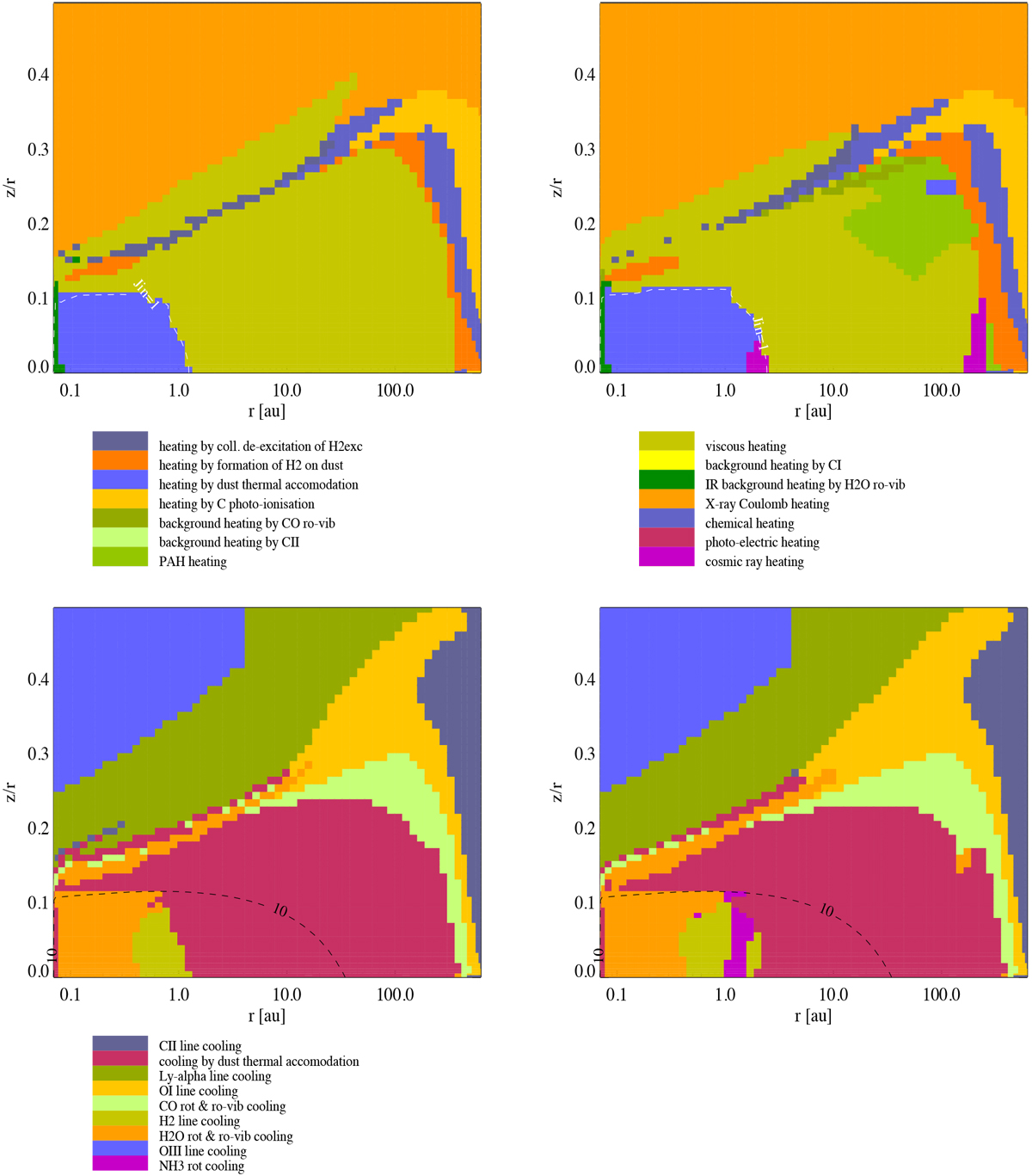

Main heating sources (upper panels) and main cooling sources (lower panels) at the different locations in the disk. Left panels: βmid = 104 disk model, while right panels: βmid = 106 disk model. Upper panels: the contour of the Jin’s criterion is shown in white contour. The black contours correspond to AV = 10 in all the panels.
