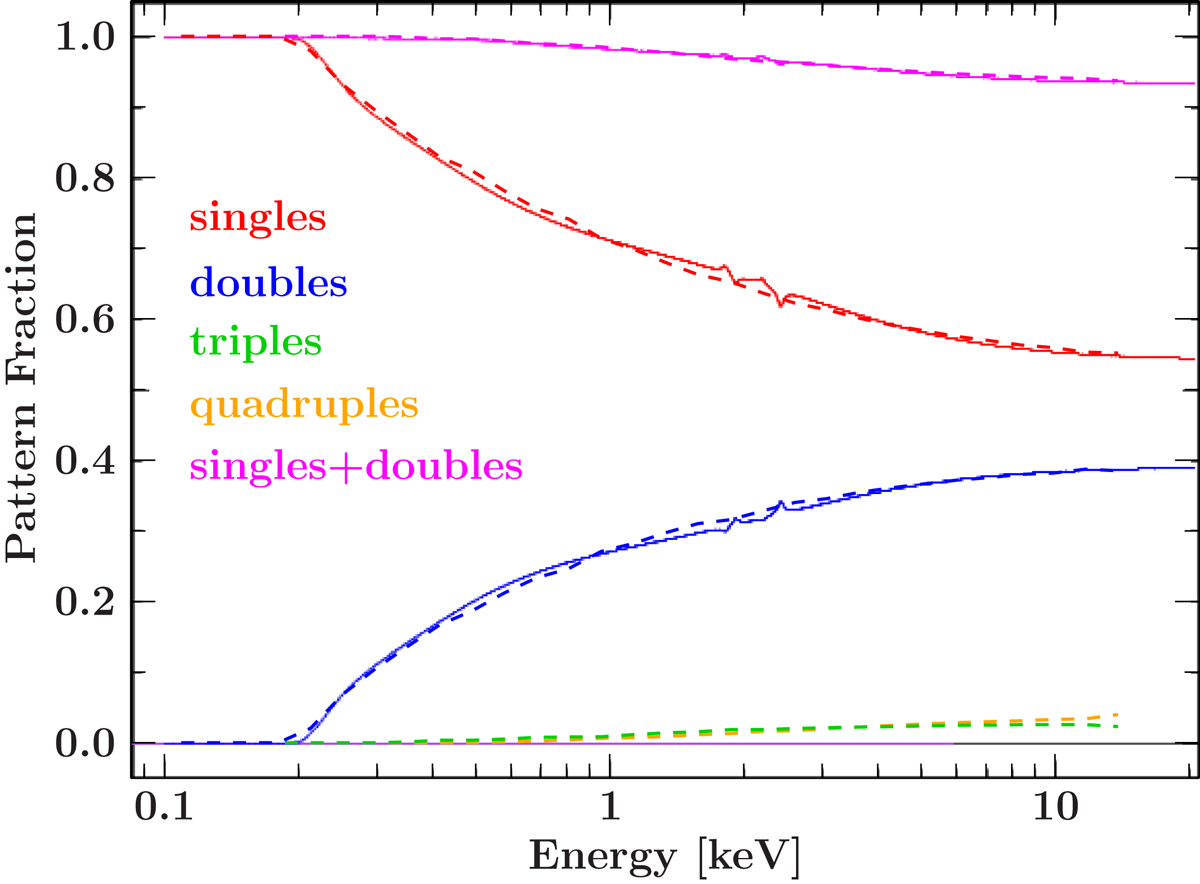

Fig. D.1.


Comparison of the Gaussian charge cloud model (dashed lines) with the distribution of pattern types obtained with the SAS task epatplot (solid lines) for an observation of Cen A with the EPIC pn camera on XMM-Newton operated in Small Window. The simulated distribution matches very well the values expected from the instrument model.
