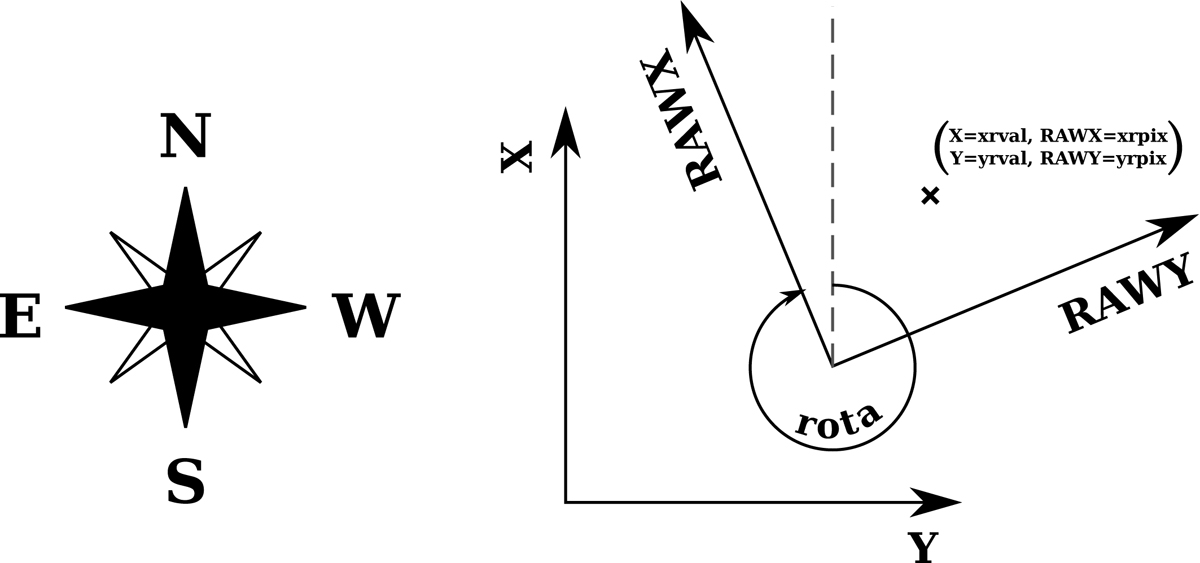

Coordinate systems as used by SIXTE, seen as projected onto the sky. In this figure, the X-axis points towards north. It can be realigned using an attitude file. The RAWX and RAWY axes can be rotated by the rota-key in the detector XML description. The angle is measured from the X- to the RAWX-axis clockwise when projected onto the sky.
