Fig. 6

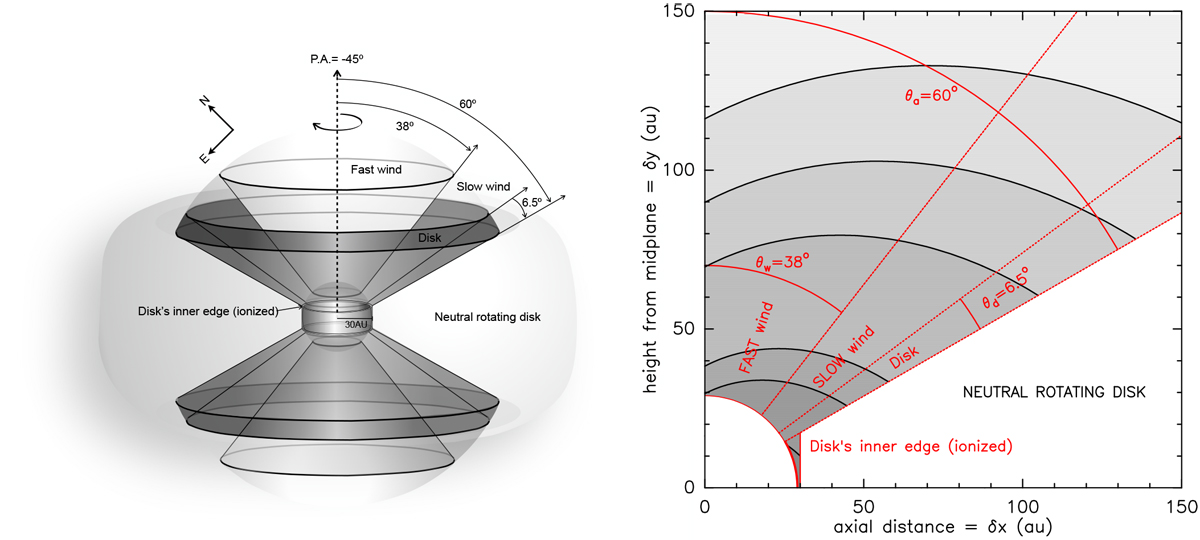

Left: sketch of the biconical geometry adopted in our model (Sect. 4). The equatorial plane is oriented in the sky along PA = 45° and is seen edge-on. Right: two-dimensional representation of the density law adopted (Table 2). Contour levels are 2.5 × 105, 5 × 105, 106, 5 × 106, 107, and 5 × 107 cm−3. Dotted linesdelimit the different model components. The neutral disk is not probed by our ALMA observations.
