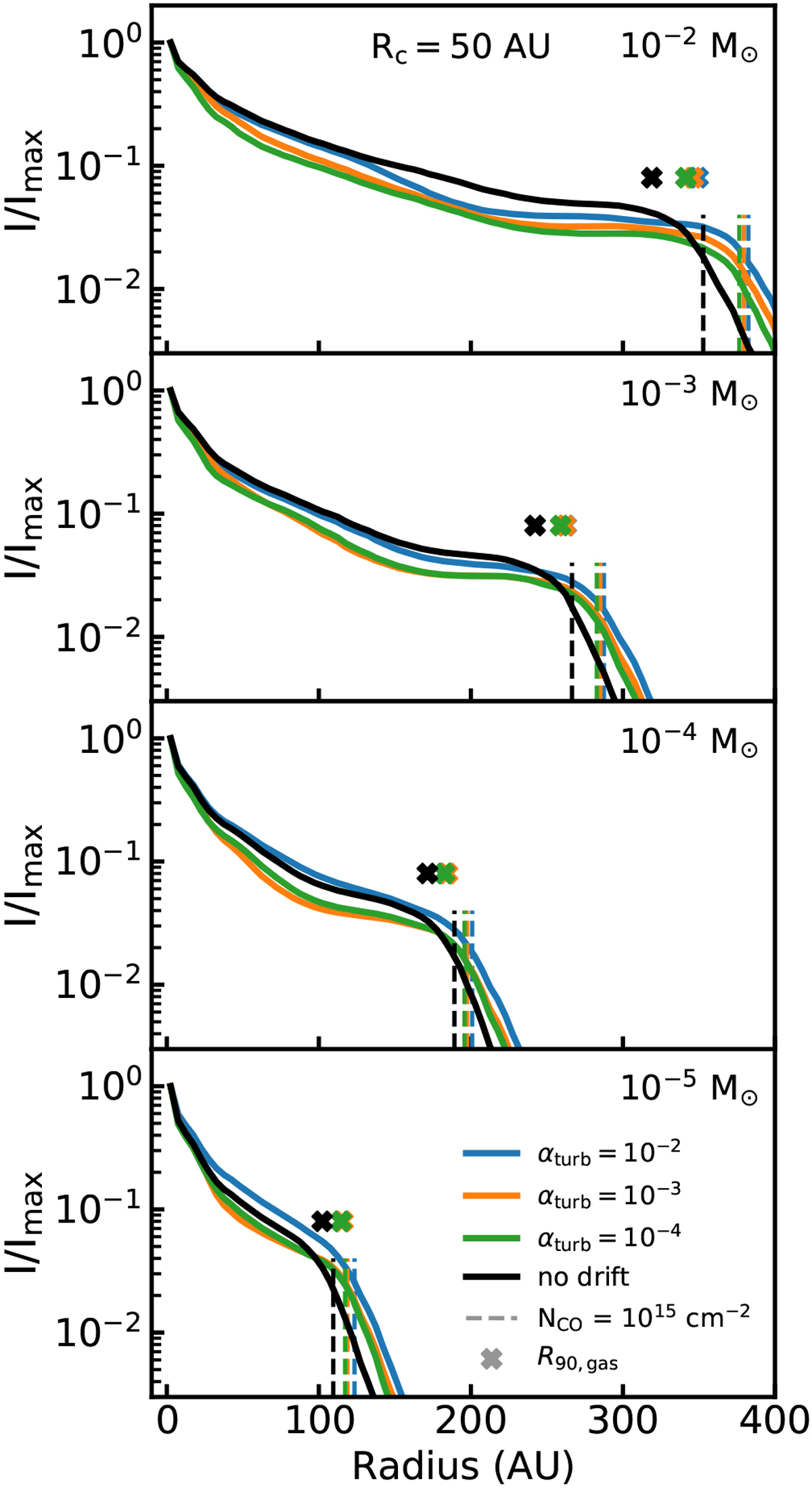

Fig. 2

Radial intensity profiles of the 12CO 2–1 line emission, normalised to the peak intensity, for models with Rc = 50 AU. Crosses above the line denote the dust outer radii, defined as the radii enclosing 90% of the total flux. Vertical dashed lines denote the radius at which the CO column density drops below 1015 cm −2, where it canbe photodissociated effectively.
