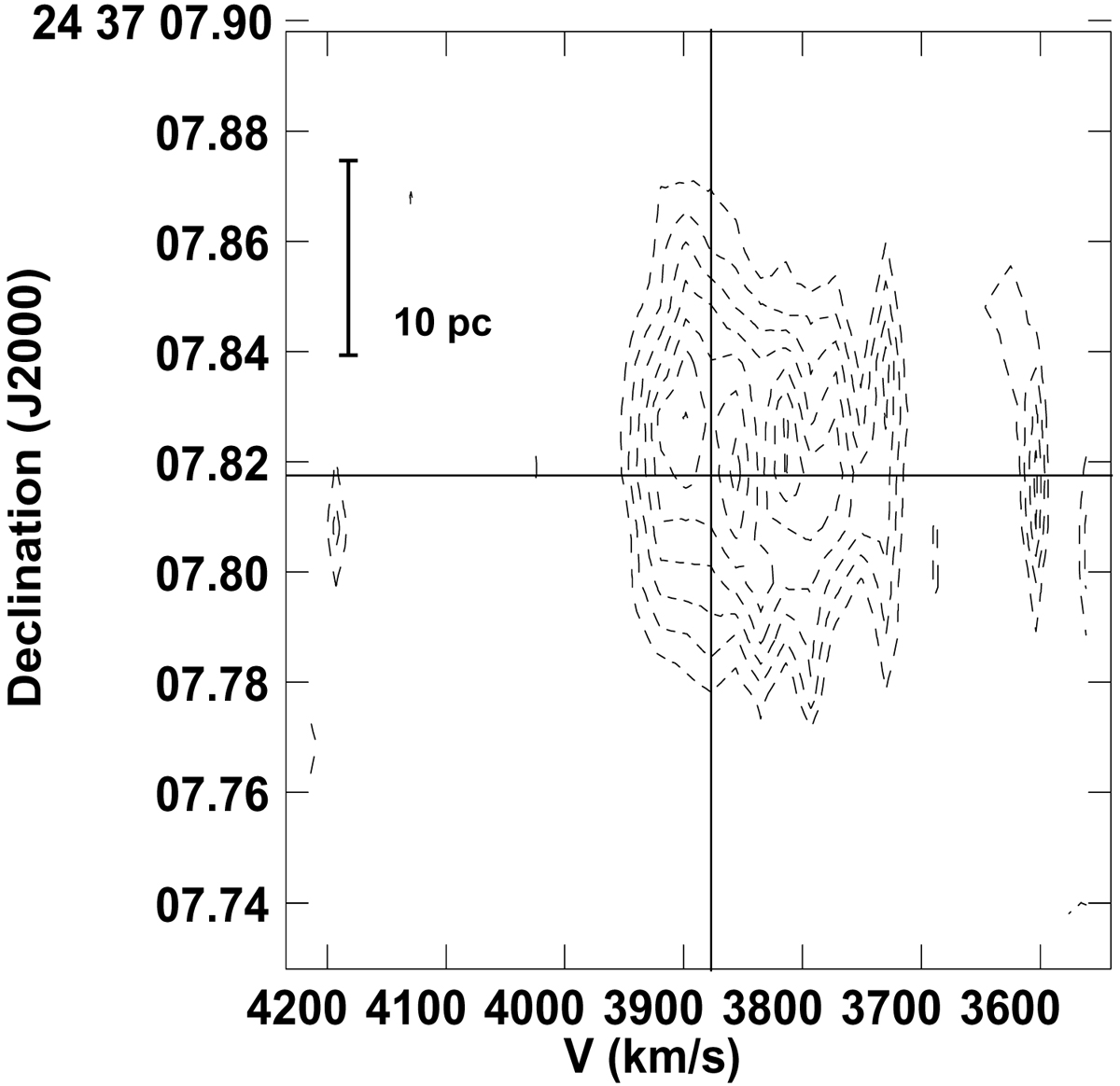

Fig. 8.
Position velocity (pV) diagram of CS 7–6 absorption, indicated by negative, dashed contour lines. The contours are 0.8 × ( − 8, −7, −6, −5, −4, −3, −2) mJy and the cut is along the north–south (PA = 0°) major axis of the nuclear disk. The νsys of 3880 km s−1 is indicated with a vertical black line. The position of the band 7 continuum is indicated by a horizontal black line.
