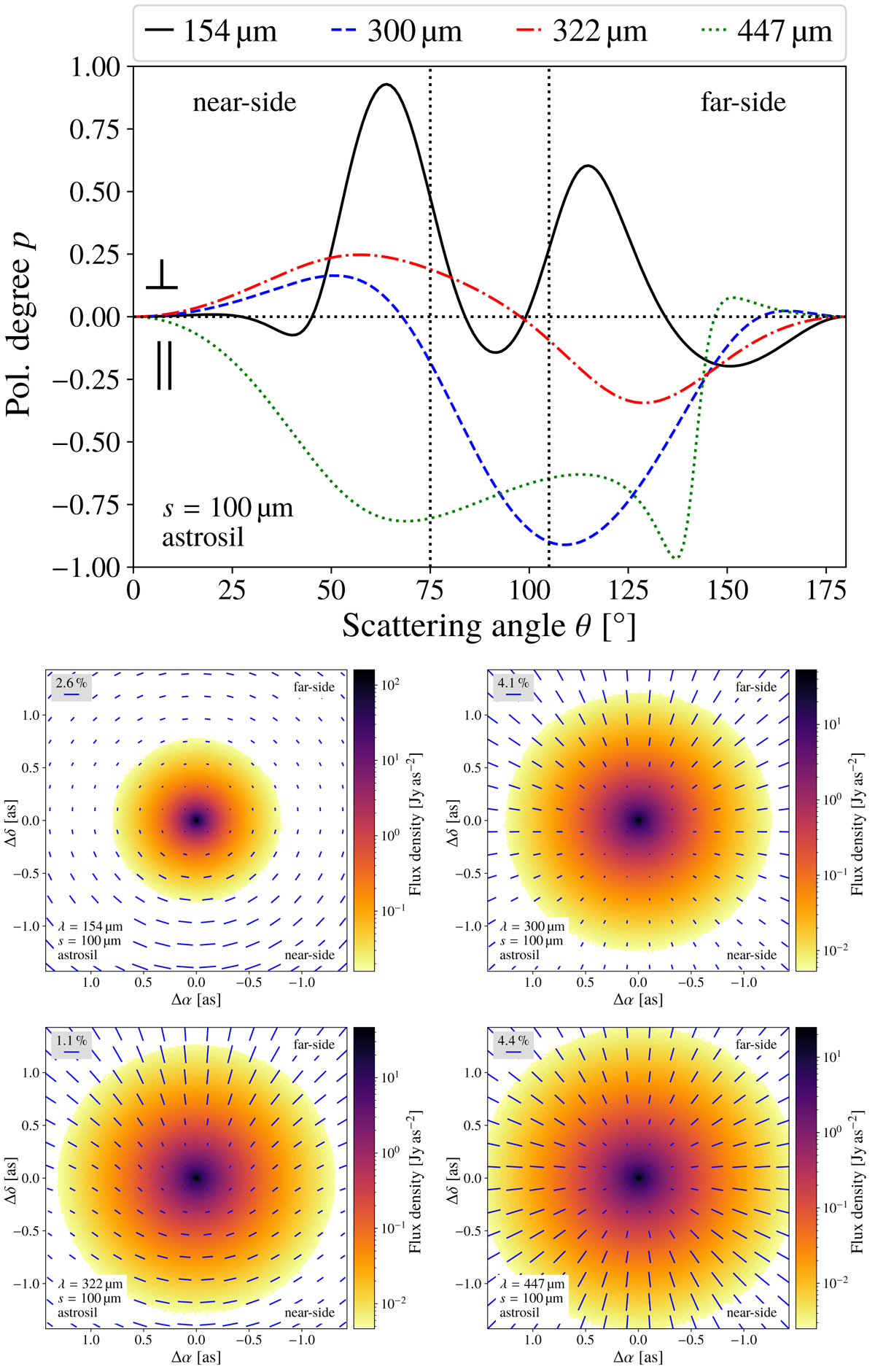

Top: maximum degree of polarization p of different wavelengths corresponding to the SOFIA/HAWC+ band D (λ = 154 μm), and the ALMA bands 10 (λ = 300 μm and λ = 322 μm) and 9 (λ = 447 μm). Middle and bottom: corresponding intensity maps with superimposed polarization vectors. The inclination for all four sub-plots is i = 15°. The lengths of the polarization vectors are scaled to the maximum polarization degree present in each figure. We note that the resolution of SOFIA/HAWC+ is not sufficient to spatially resolve the polarization pattern of protoplanetary disks.
