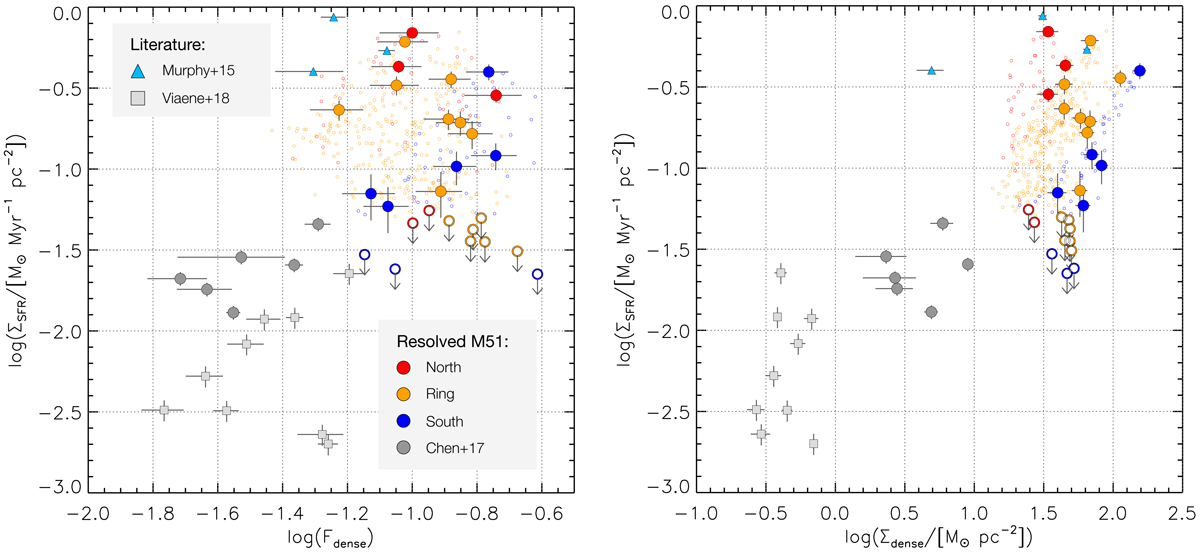

Fig. 7.


Star formation rate surface density at ∼100 pc scales as a function of dense gas fraction (Fdense = Σdensemol, left) and dense gas surface density (Σdense, right). The filled circles show results for 3″ apertures (∼100 pc) centred on HCN peaks, while the small open circles in the background represent all detections across our fields of view (above 3σ simultaneously for ΣSFR, Fdense, and Σdense). Open circles with a downward arrow indicate upper limits. The blue triangles and gray squares correspond to measurements at comparable scales for NGC 3627 (Murphy et al. 2015) and M 31 (Brouillet et al. 2005, and new SFRs described in the text).
