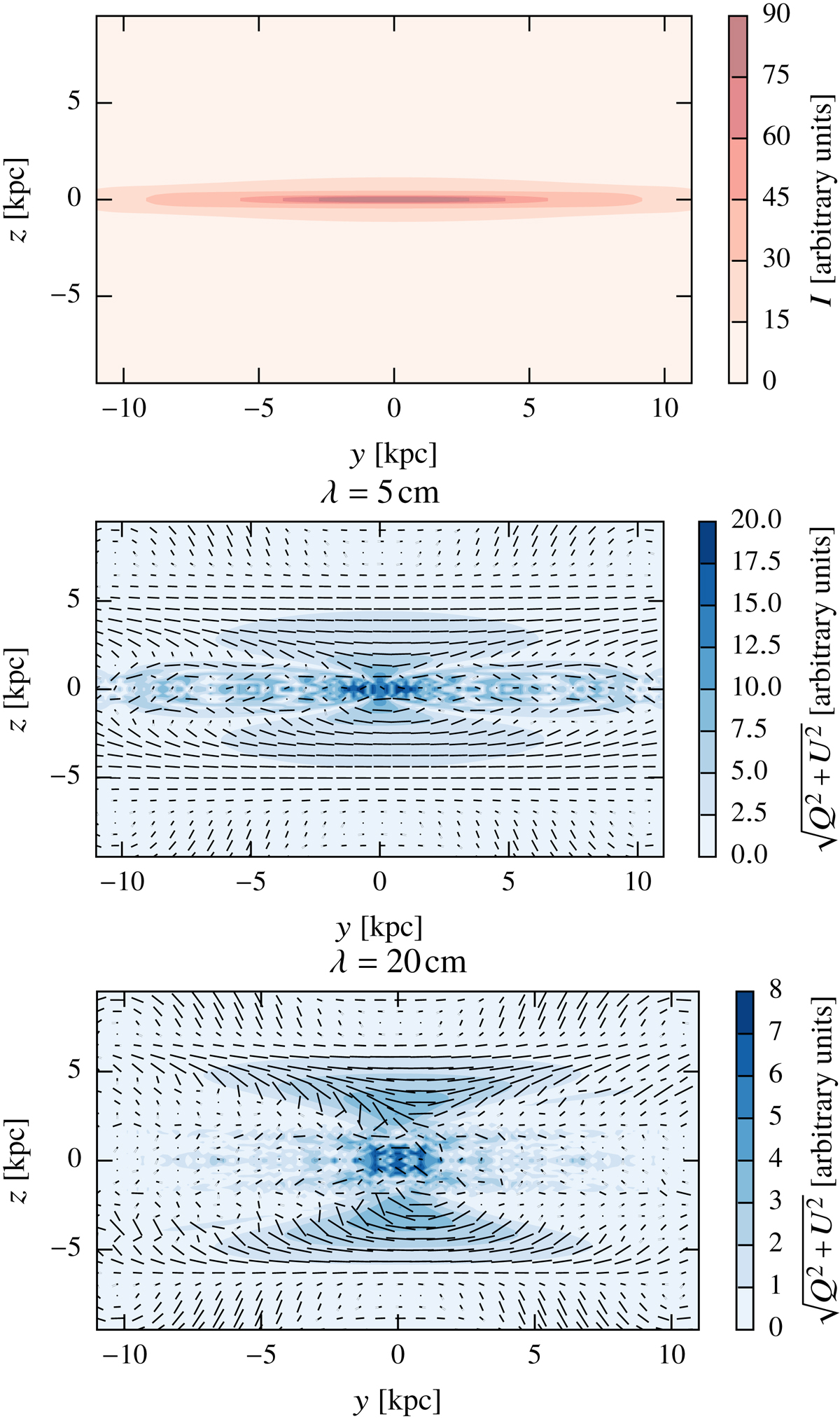

Fig. 13.
Synchrotron emission produced by the magnetic configuration shown in Fig. 11 with the disc seen edge-on (see the text for other assumptions). Top panel: the total intensity (Stokes parameter I). Middle and bottom panels: the polarised intensity at λ = 5 and λ = 20 cm, respectively. The dashes are perpendicular to the polarisation angle and their lengths are proportional to the fractional polarisation. No correction for random magnetic fields has been made in the fractional polarisation.
