Fig. 6.

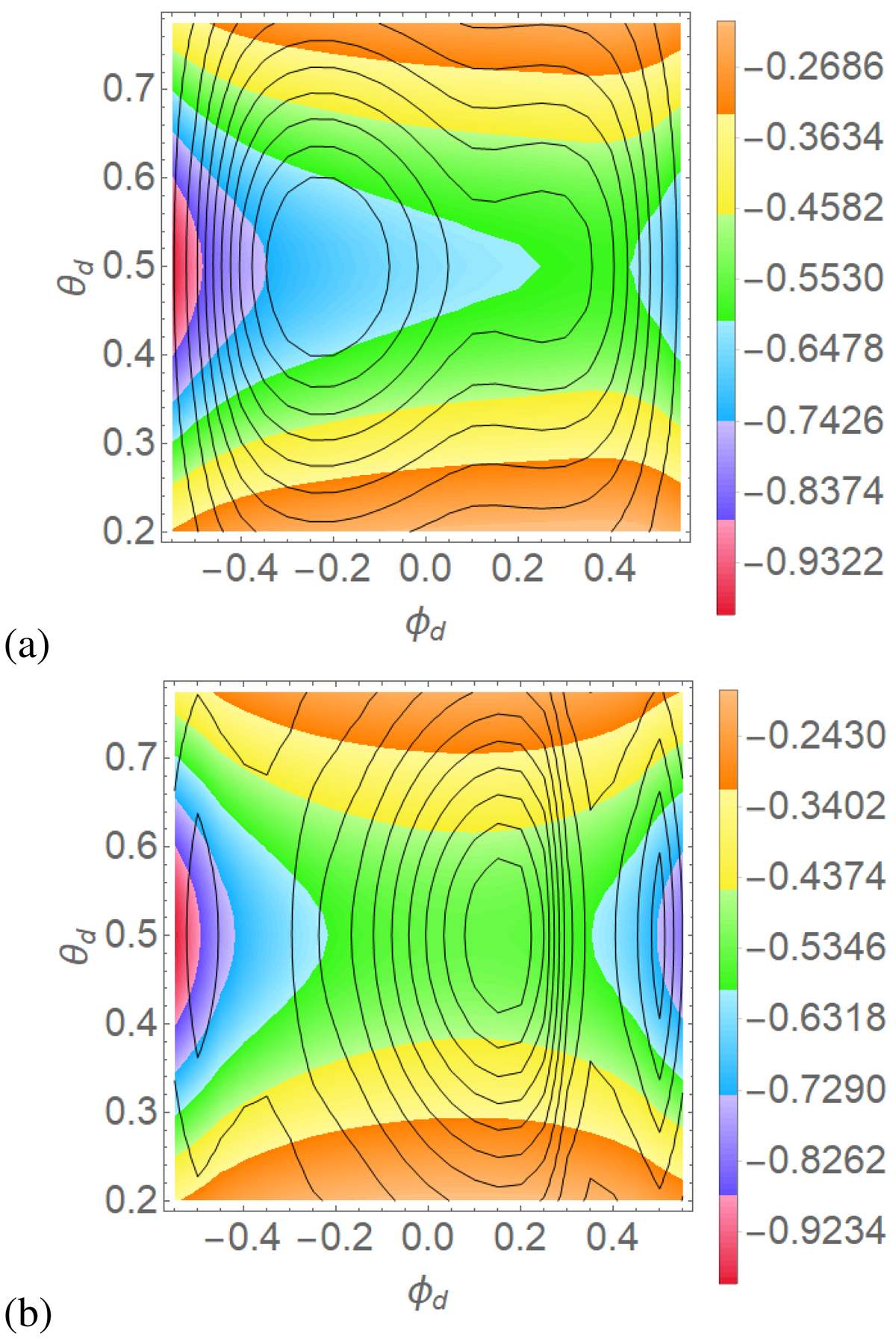

Contour plots of the intensity in black and the Faraday rotation profiles shown in colour of the two large scale helical fields for highly relativistic jets γ = 10 with viewing angle θj = π/3. Panel a: Rs, for the field Br, panel b: Rs, for the field Bc. The horizontal and vertical axes are scaled so that they they cover the extend of ϕd and θd as described in Sect. 2.1.
