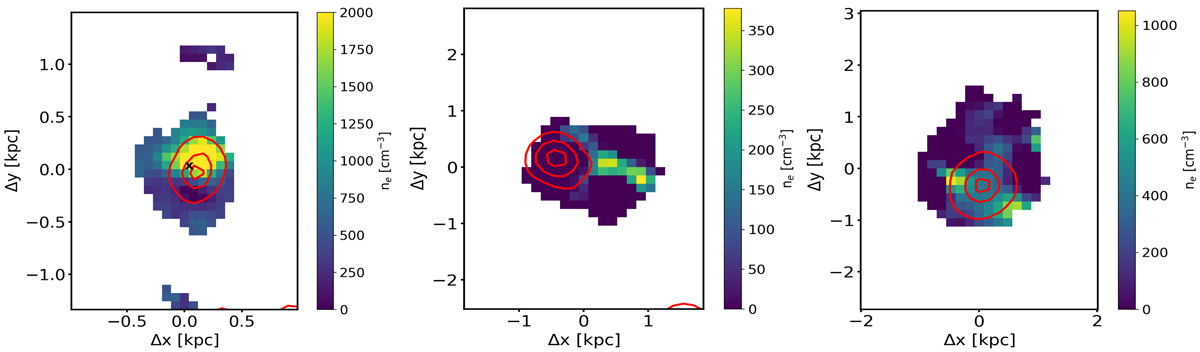

Fig. 9.

Electron density map in the outflowing broad component in NGC 1068 (left panel), NGC 1266 (middle panel), and NGC 2110 (right panel). The red contours show the location of the outflow as inferred from the broad component of [O III]. The density maps in this figure were obtained from the ratio of the flux of the broad components of the [S II] doublet, which is believed to trace the gas in the outflowing medium.
