Fig. 5

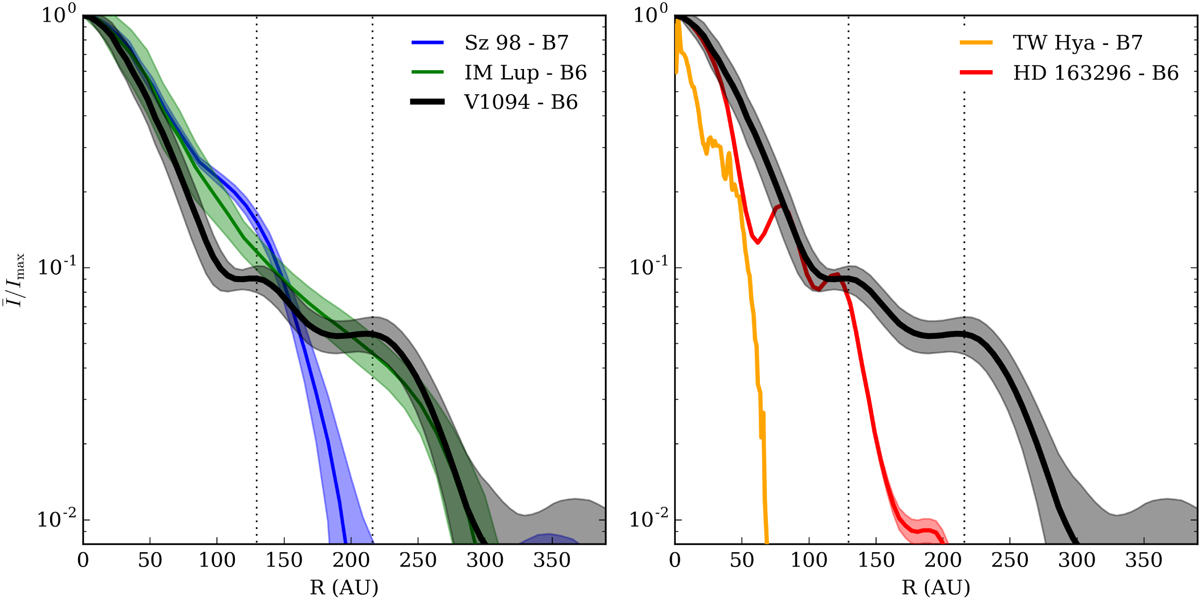

Normalized radial intensity profile of V1094 Sco compared to two large Lupus disks (IM Lup and Sz 98; Ansdell et al. 2016; Cleeves et al. 2016; left panel) and to two multi-ringed disks (TW Hya and HD 163296; Andrews et al. 2016; Isella et al. 2016; right panel). The locations of the rings of V1094 Sco are indicated with vertical dotted lines. For all Lupus sources, a 150 pc distance is assumed. The effective resolution of the Sz 98 and V1094 Sco disks is 38 AU; for IM Lup, 65 AU; for TW Hya,1.6 AU; for HD 163296, 27 AU.
