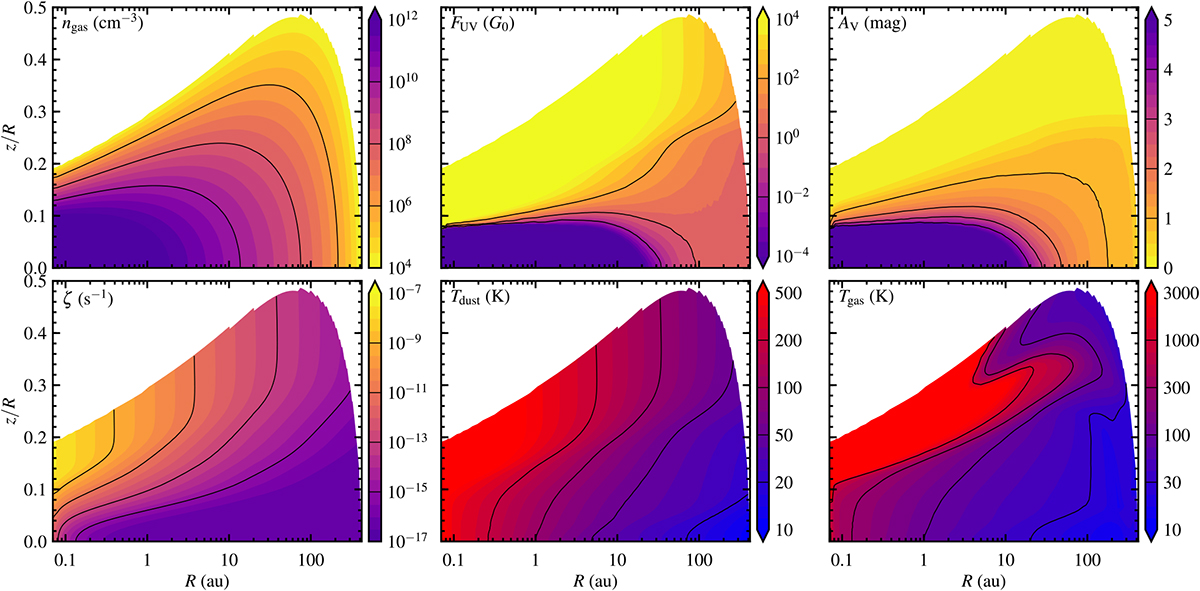

Fig. 2
Gas density, UV flux, visual extinction, ionization rate (sum of X-ray and cosmic ray contributions), dust temperature and gas temperature for a 10−3 M⊙ disk with 90% large grains, χ = 0.2 and ψ = 0.2, illuminated by a T Tauri stellar spectrum with a UV excess for 10−8 M⊙ yr−1. The FUV plot accounts for extinction. All panels are truncated at the 104 cm−3 density contour.
