Fig. 1

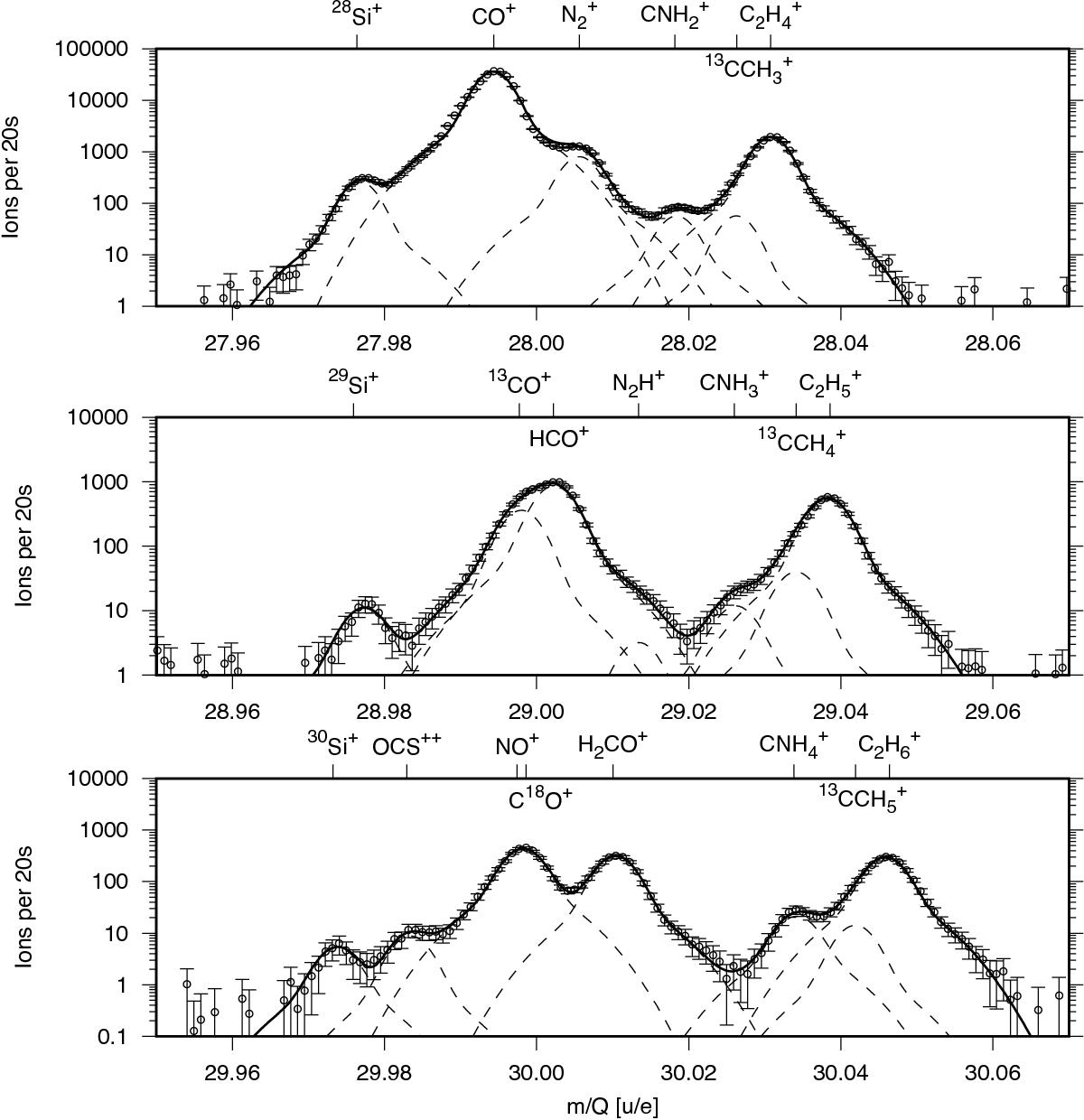

ROSINA DFMS mass spectra on mass-to-charge ratios 28 u/e (top), 29 u/e (middle), and 30 u/e (bottom) obtained during 20 s integration each. The ionized isotopes 28Si+, 29Si+, and 30Si+ have large mass defects and can be found below the corresponding unit mass-to-charge ratio on the left side in the spectra. Among other molecules also carbon monoxide, i.e., the corresponding ions 12C16O+ and 13C16O+ on mass-to-charge ratios 28 u/e and 29 u/e, respectively, can be identified in the exact same data. The dashed lines indicate fitted peaks containing the sum of two Gaussians each, while the black solid line shows the corresponding curve derived from the sum of the individual contributions. The error bars contain counting statistics.
