Fig. 3

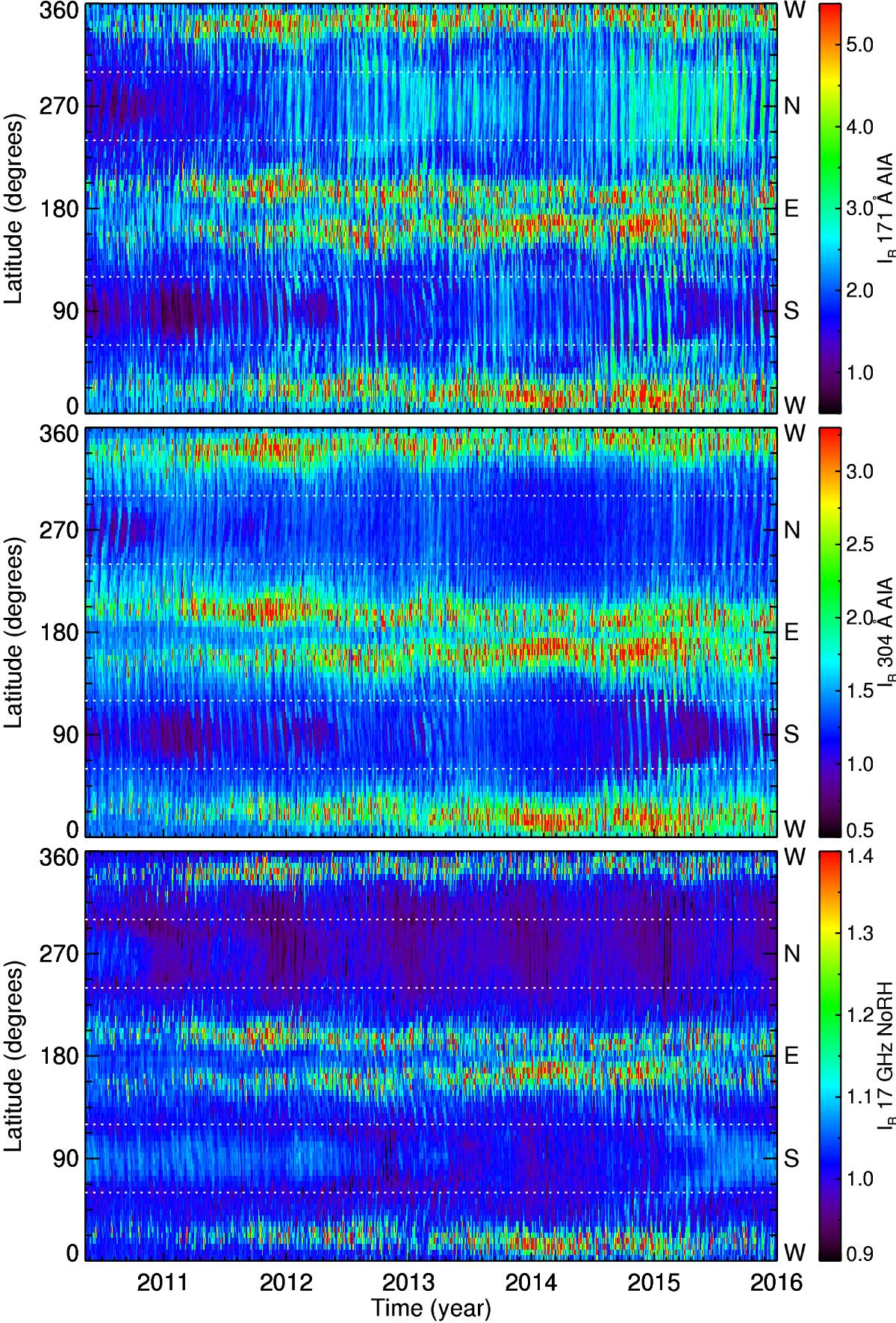

Synoptic limb charts obtained for 171 Å (top panel), 304 Å (middle panel) and 17 GHz (bottom panel). Running means of 3 days were applied in the synoptic charts of each wavelength. The minimum values of the color scales for the IR are 0.5 at the EUV (171 and 304 Å) lines and 0.70 at radio (17 GHz), while the maximum values are 5.50, 3.30 and1.40 at 171 Å, 304 Å and 17 GHz, respectively. The dotted lines delimit the south (60° and 120°) and north (240° and 300°) poles.
