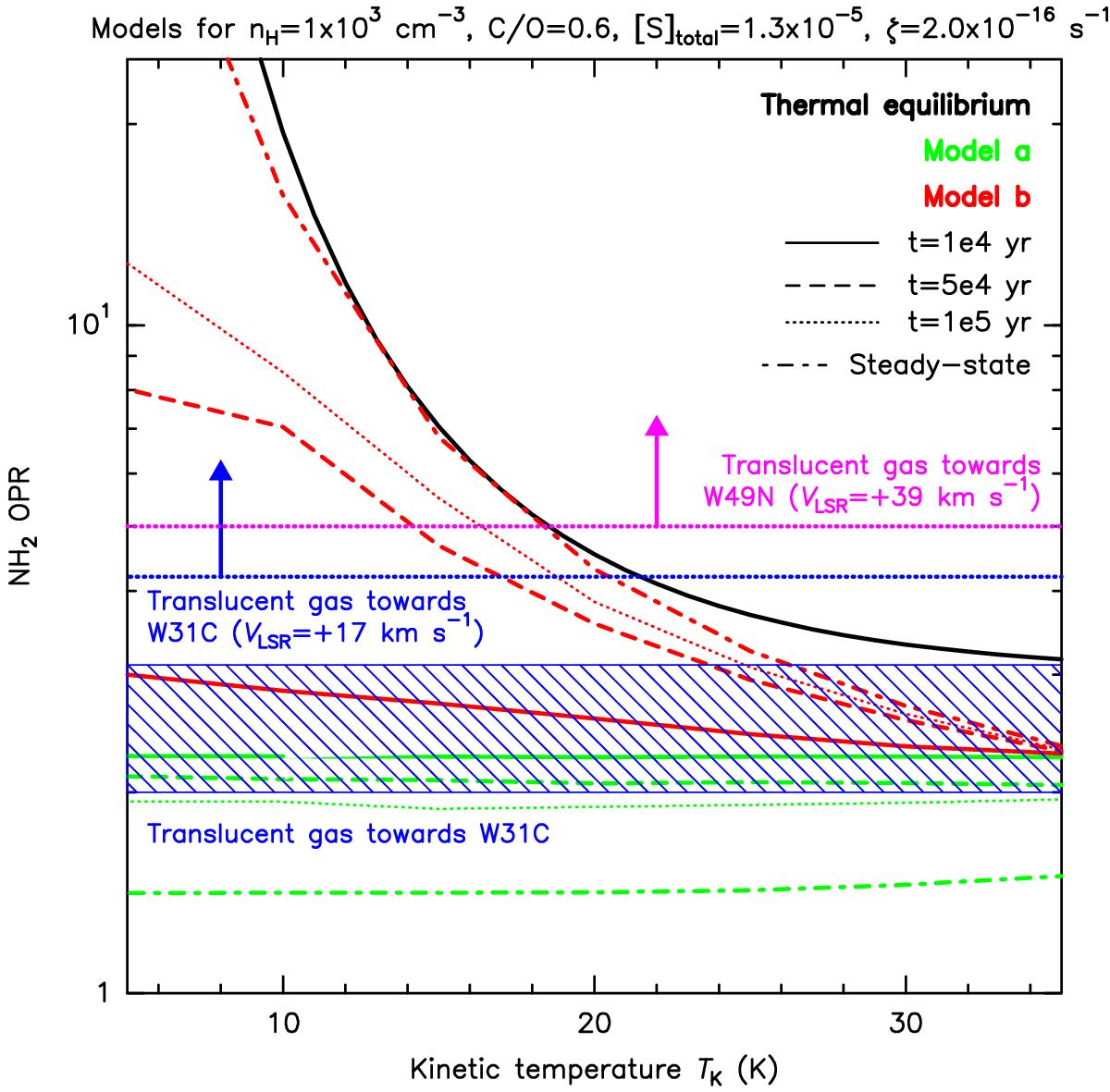

Fig. A.12

Calculated OPR of NH2 shown as a function of kinetic temperature for a density of nH = 1 × 103 cm-3: (i) at thermal equilibrium (black solid line), (ii) with model a (green, Sect. 4.2); and (iii) with model b (red, corresponding to model a plus the NH2 + H reaction, Sect. 4.3). The OPR is plotted for four different times for both models: 1 × 104 yr (solid lines), 5 × 104 yr (dashed lines), 105 yr (dotted lines), and steady-state (dashed-dotted lines). The hatched box represents our best estimates of the average OPR, including formal errors, for the translucent gas towards W31C at VLSR ~ 22,28 and 40 km s-1. The dotted horizontal lines with arrows mark the lower limits in the translucent gas towards W31C at VLSR ~ 17 km s-1 (blue) and W49N at VLSR ~ 39 km s-1 (pink).
