Fig. 12

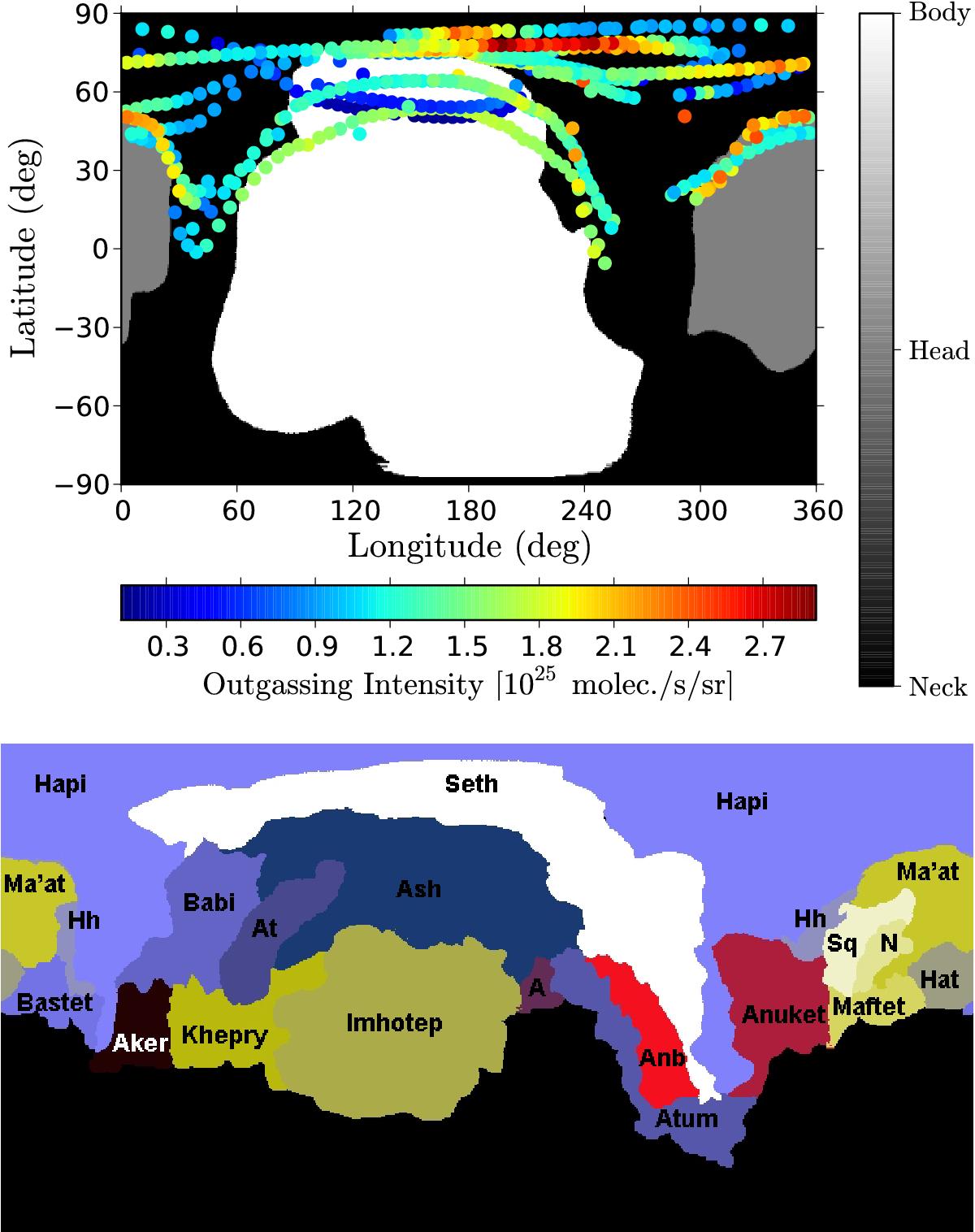

Top panel: retrieved outgassing intensity at the location of the MIRO beam on the nucleus of 67P with the background image of the three distinctive parts of the nucleus shape: body (white), head (gray), and neck (black). Bottom panel: nineteen regions on the nucleus of 67P defined in Thomas et al. (2015). For some of the regions, acronyms are used for readability: at for Aten, Hh for Hathor, A for Apis, Sq for Serqet, N for Nut, and Hat for Hatmehit.
