Fig. 14

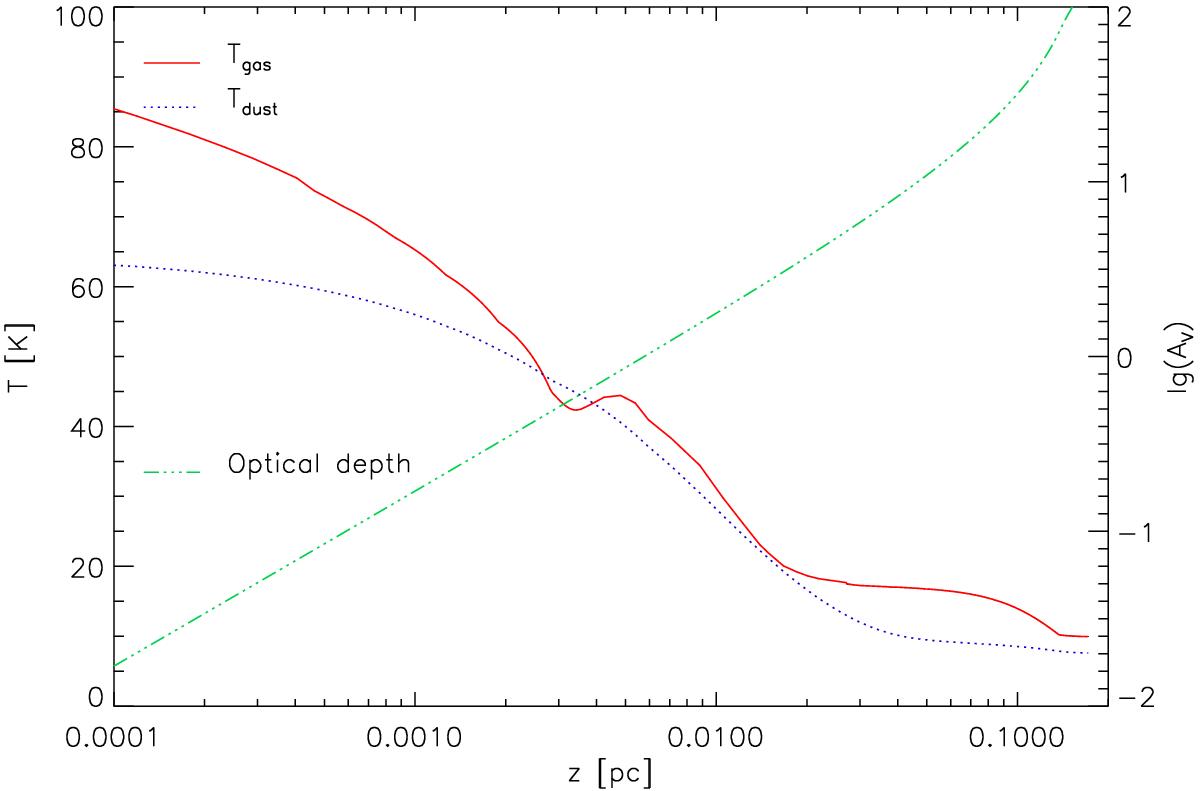

Dust and gas temperatures in a spherical PDR clump with a surface density of 105 cm-3 illuminated by an UV radiation field of 102 Draine fields. Gas temperatures generally exceed the dust temperatures (see Röllig et al. 2013, for a more general discussion). The green dash-dotted line shows the visual extinction AV as a function of the depth into the cloud.
