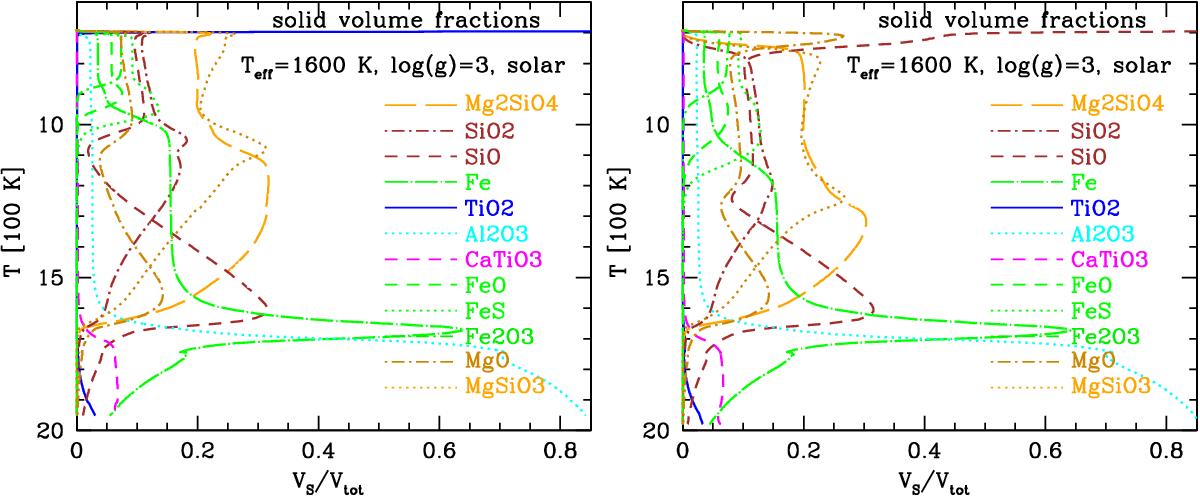

Fig. 9

Download original image
Differences in the cloud particle material compositions for TiO2 nucleation (left) and SiO (right). The nucleation species (TiO2 or SiO molecule) are also surface growth species (as in Table 1 in Helling et al. 2008a). The main differences occur in the uppermost part of the cloud, the haze layer: SiO[s]/MgO[s] with impurities of FeS[s], FeO[s], Fe2O3[s], and Al2O3[s] in the case of SiO nucleation (right), and MgSiO3[s]/Mg2SiO4[s] with impurities of all other solids plus a very thin TiO2[s] layer at the very top in the case of TiO2[s] nucleation (left).
