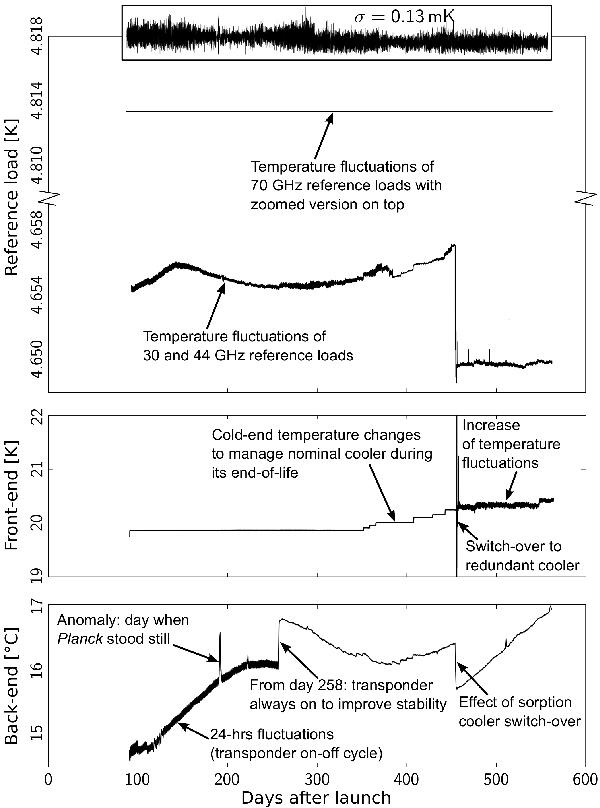

Fig. 7
Main temperatures in Planck-LFI. From top to bottom: 70 GHz reference loads, 30 and 44 GHz reference loads, 20 K FP (sensor placed on feed horn flange of LFI28) and 300 K back-end (sensor placed on the back-end electronics box). A brief description of the main operational events affecting the thermal behaviour is provided in each panel.
