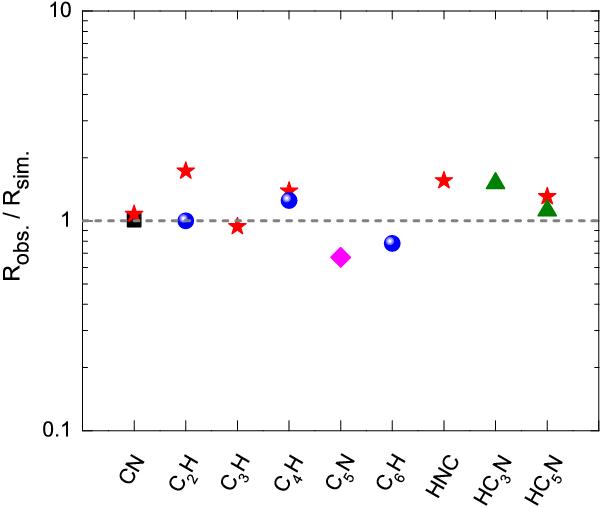

Fig. 13

Ratio of observed and simulated peak abundance radii (Robs. and Rsim.) for selected species. In all cases, Rsim. is obtained from our SS model. Robs. is estimated from the interferometric maps of Lucas et al. (1995; black squares), Guélin et al. (1998; pink diamond), Guélin et al. (1999; blue spheres), Dinh-V-Trung & Lim (2008; green triangles), and Guélin (2011; red stars). The dashed horizontal line indicates the position where Rsim.=Robs..
