Fig. 11

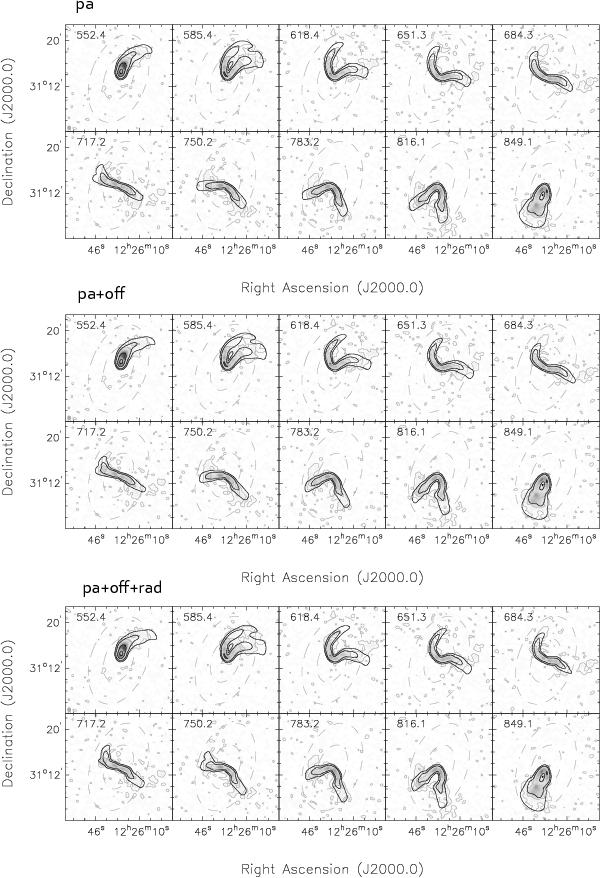

Overlay of the models on selected channel maps. Contour levels for both data and model are (2,10,50)·σ where σ = 0.23 mJy beam-1 or 0.8 × 1018 cm-2. The two dashed ellipses in each panel denotes the outer radii of the inner and outer disk. Details of the models are described in the text.
