Fig. 13

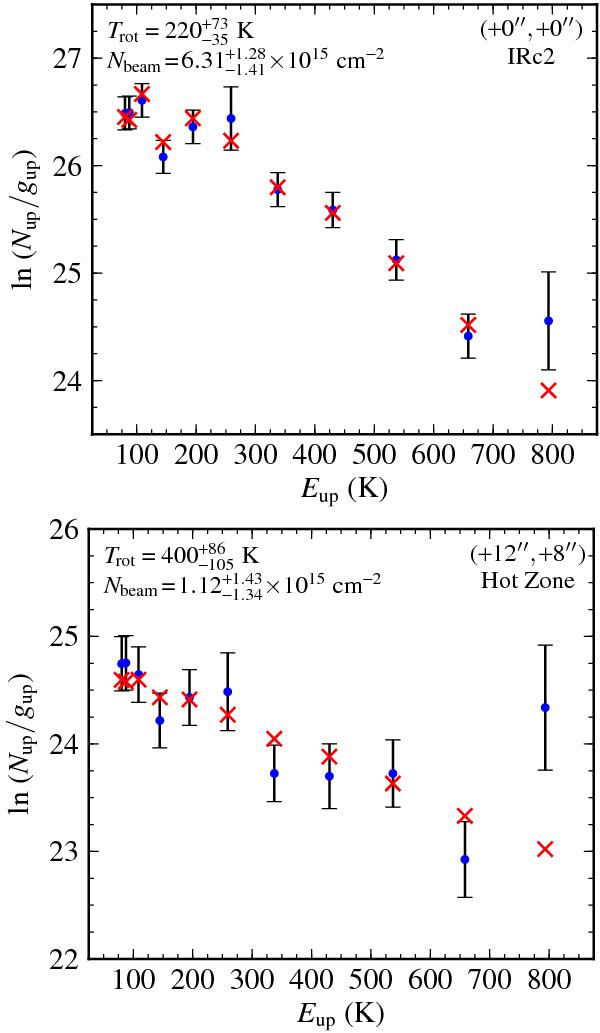

Population diagrams comparing observations (blue dots) and best-fit LTE model predictions (red crosses) for CH3CN J = 13K − 12K lines at the map centre (top), corresponding to the location of IRc2, and the offset position (bottom), corresponding to a temperature peak within the northeastern hot zone.
