Fig. 11

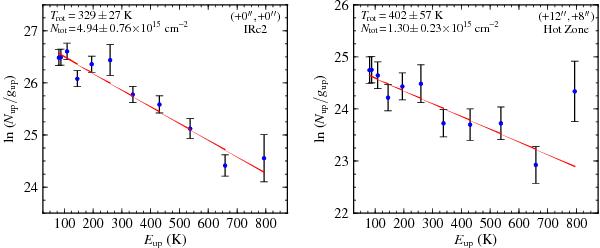

Rotation diagrams for the CH3CN J = 13K−12K lines observed at the centre of the map (left), corresponding to the location of IRc2, and an offset position (right), corresponding to a temperature peak within the northeastern hot zone.
