1. Introduction

The Sun occupies a very special place in stellar studies, still persisting as the most fundamental and dependable reference object in stellar astrophysics. It remains the one star for which extremely important parameters can be determined from first principles, such as the effective temperature Teff from directly observed irradiance (Neckel 1986), age from nucleochronology and/or undisturbed meteorite differentiates (Guenther 1989; Gancarz & Wasserburg 1977), and mass from planetary motion and asteroseismology. Nevertheless, to fully exploit the potential reference position of the Sun as a star, we need to know its place in the parameter space of stellar observations. This is no easy task: the extremely detailed observations available for the Sun are only tied with difficulty to the woefully less detailed stellar measurements. The main reasons for this in photometry and spectrophotometry are the difficulties in geometrically treating the solar image and scattered light; the immense flux difference between the Sun and stars, a factor of ~1011; and the impossibility of observing the Sun at night, which taxes the stability of instrumentation. The photometric properties of the Sun in the various photometric systems in use, thus, remain uncertain despite protracted efforts employing a variety of direct and indirect methods (e.g., Tüg & Schmidt-Kaler 1982; Hayes 1985; Saxner & Hammarbäck 1985; Neckel 1986; Friel et al. 1993; Gray 1992, 1994; Porto de Mello & da Silva 1997; Ramírez & Meléndez 2005b; Holmberg et al. 2006; Casagrande et al. 2006; Meléndez et al. 2010,and many others).

The identification of stars closely resembling the Sun plays an extremely interesting role in this task (Cayrel de Strobel 1996) and raises considerable interest on diverse astrophysical fronts. Solar twin stars were defined by Cayrel de Strobel & Bentolila (1989) as (non binary) stars identical to the Sun, within the observational uncertainties, in all fundamental astrophysical parameters, such as mass, chemical composition, Teff, surface gravity, photospheric velocity fields, magnetic activity, age, luminosity, and asteroseismological properties. Such stars should have spectra that are indistinguishable from the solar one. It is debatable whether such stars should be detectable, or even actually exist (Cayrel de Strobel et al. 1981). Even though uncertainties in determining fundamental stellar parameters have been decreasing steadily, minute differences from star to star may simply be too small to be distinguished. For instance, very slight variances in chemical composition or details of internal structure between two stars can lead to sizable disparities between their observable spectral properties and evolutionary states, and turn such stars into very dissimilar objects indeed.

Solar analogs, by contrast, are unevolved, or hardly evolved, solar-type stars that merely share the solar atmospheric parameters and are thus expected to have very similar colors and spectral flux distributions to the Sun. We feel the distinction between solar twins and analogs has not been stressed enough in the literature, and we thus take some time to point out some key issues. Solar twins, on the one hand, are expected to match every conceivable solar physical property, and therefore to materialize all the photometric and spectroscopic solar properties in a star, under the reasonable assumption that a perfect physical match would automatically lead to the same observables. Solar analogs, on the other hand, merely have atmospheric parameters that are loosely similar to the solar ones, to degrees of similarity that have been taken at distinct quantitative levels by different authors (alas, adding to the confusion). Such stars are expected to possess spectrophotometric quantities similar to the solar ones, but we note that, due to the various degeneracies of the problem, which we discuss below, stars with colors resembling the Sun may not turn out to be solar analogs.

Solar analogs and, of course, also solar twins may be very useful in providing a proxy for sunlight in the night sky specifically for spectrophotometry of solar system bodies and other calibration purposes. These solar surrogates are very important for those cases when techniques that can be applied in daytime, such as observing the clear blue sky or solar radiation reflected off telescope domes, are not an option. Ideally these solar analogs should be faint enough for adequate use by large telescopes and be observable with the same instrumentation as used for working with very faint targets, such as small and distant asteroids, besides being observable without the need for stoppers or neutral density filters, which always add some measure of uncertainty. Additionally, both solar twins and solar analogs are expected to help pin down the solar color indices better.

Moreover, solar twins may be expected to have followed an evolutionary history similar to that of the Sun. There is some evidence that the Sun may be metal-richer than the average G-type thin disk star in its neighborhood (Rocha-Pinto & Maciel 1996), though we note that recent data has cast doubt upon this claim, as judged by a revised solar (Asplund et al. 2009) and interstellar medium (Nieva & Przybilla 2012) composition, as well as results from nearby solar-type stars (Adibekyan et al. 2013). It also seems to be part of a stellar population that is heavily depleted in lithium (e.g., Pasquini et al. 1994; Takeda et al. 2007), and it may possess lower-than-average chromospheric activity for its age (Hall & Lockwood 2000; Hall et al. 2007), have more subdued photometric variability than stars with similar properties (Lockwood et al. 2007; Radick et al. 1998) (but see Hall et al. 2009), and have a slightly longer rotational period than stars of the same age (Pace & Pasquini 2004). In addition, the Sun seems to lead most of the local stars of similar age and metallicity in the velocity component toward the galactic rotation (Cayrel de Strobel 1996; Porto de Mello et al. 2006). Adding to these putative peculiarities (for an interesting review of this topic, see Gustafsson 1998), the Sun occupies a position very close to the Galactic corotation (Lépine et al. 2001), whereby the Sun shares the rotational velocity of the spiral arms and the number of passages through them is presumably minimized. These characteristics may have a bearing on the Sun’s ability to maintain Earth’s biosphere on long timescales (Leitch & Vasisht 1998; Gonzalez et al. 2001; Porto de Mello et al. 2009).

Is the Sun an atypical star for its age and galactic position? A sample of nearby solar twins may help gauge the solar status in the local population of middle-aged G-type stars better. And, last but not least, solar twin stars would be natural choices when searching for planetary systems similar to our own, as well as presenting interesting targets to the ongoing SETI programs (Tarter 2001) and the planned interferometric probes aimed at detecting life, remotely, in extra solar Earth-like planets by way of biomarkers (Segura et al. 2003).

The search for solar analogs was initially stimulated by Hardorp (1982, and references therein) when attempting to identify stars with UV spectra matching the solar one, as judged mainly by the CN feature around λ3870. Hardorp classed stars by magnitude differences of their spectral features to the Sun’s (represented by Galilean satellites), and his solar analog lists are still widely referred to nowadays (e.g., Alvarez-Candal et al. 2007; Milani et al. 2006). This prompted an effort by Cayrel de Strobel et al. (1981), Cayrel de Strobel & Bentolila (1989), and Friel et al. (1993) to check that Hardorp’s best candidates stood up to detailed spectroscopic analysis: this subject received a thorough review by Cayrel de Strobel (1996). Subsequently, Porto de Mello & da Silva (1997) used a detailed spectroscopic and evolutionary state analysis to show that 18 Sco (HR 6060, HD 146233) was a nearly perfect match for the Sun as judged by colors, chemical composition, Teff, surface gravity, luminosity, mass, and age, thereby confirming that the 16 Cyg A and B pair (HD 186408 and HD 186427), previously pointed to by the Cayrel de Strobel group as the best solar twins, were older, less active, and more luminous than the Sun, though possessing Teff and metallicity very near the Sun’s. Glushneva et al. (2000) analyzed the spectral energy distributions of solar analogs from Hardorp’s lists, concluding that 16 Cyg A and B are the closest matches to the solar distribution, followed closely by 18 Sco, but, as did Porto de Mello & da Silva (1997), they found the two former objects to be more luminous than the Sun, concluding that they are not true solar twins. Soubiran & Triaud (2004) have analyzed moderately high-resolution, homogeneous ELODIE spectra by comparing the stars with spectra of Moon and Ceres in an automated χ2 method measuring over 30 000 resolution elements. They confirm that HD 146233 is the best match for the Sun and conclude that both photometric and spectroscopic data must be assembled to find real solar twins. These authors also found a very large dispersion in the published atmospheric parameters of solar analog candidates. Galeev et al. (2004) have spectroscopically analyzed 15 photometric analogs of the Sun, presenting HD 146233 and HD 186427 as the best analogs, along with HD 10307 and HD 34411, also concurring that photometric and spectroscopic data must be merged for a precise determination of similarity to the Sun.

King et al. (2005) suggest that HD 143436 is as good a solar twin as HD 146233. Meléndez et al. (2006) present HD 98618 as another star as close to the solar properties as HD 146233, and Meléndez et al. (2007) claim that the best solar twins ever are HD 101364 and HD 133600, since they not only reproduce all the solar fundamental parameters but also have a similar lithium abundance (see also Meléndez et al. 2012). Takeda et al. (2007) draw attention to the importance of the lithium abundance as a record of the stellar history of mixing and rotational evolution, concluding that slow rotation induces greater depletion. Finally, do Nascimento Jr. et al. (2009) show that the lithium depletion history of solar analogs is critically mass-dependent and suggest that, among the proposed solar twins, the best match for the solar convective properties, including the Li abundance, is HD 98618. This star also seems to fit the solar mass and age very closely. Israelian et al.(2004, 2009) suggest that an enhanced depletion of lithium is linked to the presence of planetary companions; however, this claim has been questioned by Luck & Heiter (2006), Ghezzi et al. (2010), and Baumann et al. (2010). It is possible that the very low lithium abundance of the Sun and other stars may be yet another piece of the major observational and theoretical puzzle of planetary formation.

As part of an ongoing effort at a complete survey of solar analog stars nearer than 50 pc, this paper reports a volume-limited, homogeneous, and systematic photometric and spectroscopic survey of solar twin stars, approximately restricted to δ ≤ + 30° in what pertains to spectroscopic observations. It is, however, photometrically complete and all-sky within d ≤ 40 pc and VTycho ≤ 8, and partially complete (owing to lack of photometry) within 40 pc d < 50 pc and 8 < VTycho < 9. The best candidates will be subjected to detailed spectroscopic analysis that employs higher resolution spectra in a forthcoming paper. In Sect. 2 the selection of the sample is described. In Sect. 3 we describe the results of the photometric similarity analysis. In Sect. 4 the observational data are presented, and the spectroscopic analysis is described in Sect. 5. In Sect. 6 we discuss the spectroscopic results and obtain masses and ages in an evolutionary analysis, presenting the best candidates, and we draw the conclusions in Sect. 7. A new photometric calibration of Teff on colors and metallicity, based on IRFM data and tailored specifically to solar analog stars and MARCS model atmosphere analysis, is presented in the appendix.

2. Sample selection

In a solar-analog hunt, by the very nature of the objects, the selection of candidates must be initiated photometrically by colors and absolute magnitudes. The next step in the selection process must be spectroscopic, since atmospheric parameters and luminosities of the candidate objects will be compared to those of the Sun. An important question, therefore, is the availability of consistent Teff scales where the Sun may be accurately placed both photometrically and spectroscopically.

Porto de Mello et al. (2008) discussed, in their analysis of the atmospheric parameters of the α Centauri binary system, possible offsets between the various published photometric and spectroscopic Teff scales. While one conclusion was that there is no consensus as yet on the existence of inconsistencies between the two scales, there is evidence that for stars that are substantially cooler than the Sun, Teff≤ 5300 K, NLTE, and other effects may be precluding strict consistency between them (e.g., Yong et al. 2004). For stars with Teff that are not too dissimilar from the Sun, good agreement can be expected between photometric and spectroscopic Teff. This is an important issue, since the properties of solar twins and analogs must be equal to those of the Sun in a variety of contexts, such as in narrow and broad-band photometry and in low and high-resolution spectroscopy. On the other hand, a differential spectroscopic approach allows direct comparison between Sun and stars.

In the appendix, we present a new photometric calibration for solar-type stars for many colors in regular use, including the (B − V)Johnson, (B − V)Tycho, and Strömgren (b − y) indices, based on published Teff employing the infrared flux method. The Paschen continuum colors have been metallicity-calibrated using only spectroscopic metallicities from detailed analyses. Our solar twin selection process starts from the Hipparcos catalog (ESA 1997) photometry and is subsequently refined with (B − V) and Strömgren color indices. From the calibrations described in the appendix, solar color indices were derived and have been the basis for our selection of solar twin candidates.

From our photometric calibrations, adopting for the Sun Teff= 5777 K (Neckel 1986), we obtain These values are in good agreement, within quoted errors, with the determinations of Holmberg et al. (2006) and Casagrande et al. (2010), for all three colors, and with (b − y) as given by Meléndez et al. (2010).

For the m1 index, we adopted the same procedure as employed by Porto de Mello & da Silva (1997) to derive the solar (B − V) and (U − B) colors. A sample of nine stars, spectroscopically analyzed with homogeneous methods, with solar metallicity, and a narrow range of Teff around the Sun leads to, interpolating the solar Teff in an m1 versus Teff regression: This same procedure was applied to the Paschen continuum colors and led to , , and (b − y) = 0.406, in excellent agreement with the solar colors derived directly from the photometric calibrations. Our also agrees very well with the recent derivation of Meléndez et al. (2010).

The initial selection process sets up a 2σ box around the (B − V) and the solar absolute magnitude in the Tycho system, . To obtain the latter figure, we compared the Sun to the solar twin HD 146233 (18 Sco) (Porto de Mello & da Silva 1997), and set Regarding the similarity between the V and VTycho bands and the very slight absolute magnitude difference between the Sun and HD 146233 in the Johnson V band, this procedure should not introduce any systematic error. We take MV = 4.82 (Neckel 1986), and from the Hipparcos parallax obtain and , to derive , to which we formally attach the uncertainty of .

thumbnail Fig. 1

Uncertainties in the absolute magnitudes for stars of the final sample of 158 non-binary stars selected from the Hipparcos catalog. Outliers with large errors in absolute magnitude are identified by HD numbers.

Open with DEXTER

The widths of the 2σ (B − V)Tycho vs. box were arrived at by an iterative procedure. The uncertainties in (B − V)Tycho and , are obtained from the uncertainties of the BTycho and VTycho bands respectively, and the uncertainty in the parallax and the VTycho band. Experimentation with arbitrary widths revealed that the average uncertainties were a function of the magnitude limit, being independent of the absolute magnitude and color indices of the selected stars. The Hipparcos catalog is formally complete down to VTycho ~ 9.0, an apparent magnitude that translates to a distance of 67 parsecs for a star with the same luminosity as the Sun. The uncertainty in increases smoothly as magnitude increases, and there is a small discontinuity at VTycho ~ 8.0 (Fig. 1). At this magnitude, approximately, the completeness limit of the uvby catalogs also lies (Olsen 1983, 1993, 1994a,b); indeed, the completeness of these catalogs was lost at VTycho ~ 8.1, for the samples selected in the first iterative runs. Our sample was therefore divided at VTycho = 8.0. The 2σ limits of the box were chosen so that the box widths corresponded to the average uncertainties of the (B − V)Tycho and for the stars inside the box. This was satisfied by and σ⟩ ((B − V)Tycho) = 0.013, for VTycho ≤ 8.0 stars. The corresponding values for the 8.0 < VTycho < 9.0 stars are 0.013 and 0.020, respectively, but the figures for VTycho ≤ 8.0 stars were used to define both boxes. We chose to enforce strict consistency for the brighter sample, for which uvby photometry is complete and for which better spectroscopic data could be secured. After binary or suspected binary stars were removed from the list, 158 stars were retained, 52 having VTycho ≤ 8.0. The completeness of the availability of the (B − V)Tycho color in the Hipparcos catalog for VTycho ≤ 8.0 stars of all spectral types is 92%. This figure increases to 95% for G-type stars. A 2σ box is thus seen to be a practical limit that allows the working sample to be observed spectroscopically in a reasonable amount of time.

To this sample we added some stars selected in the Bright Star Catalog (Hoffleit & Jaschek 1991; Hoffleit 1991) solely for having both (B − V) and (U − B) colors similar to the solar ones, plus a few stars from Hardorp (1982). For the solar colors, we used (B − V) = 0.653 ± 0.003 (as above) and (U − B) = 0.178 ± 0.013 (the latter from Porto de Mello & da Silva 1997). Some of the former stars have also been considered by Hardorp (1982) to have UV spectral features very similar to the solar ones.

thumbnail Fig. 2

Left: color similarity index SC plotted versus the photometric Teff for the 52 stars with VTycho ≤ 8.0. The box contains, in the SC axis, stars with SC ≤ 1.00 within 2σ of the solar one (defined as zero) in the ordinate. The width of the box is set by the σ(Teffphot) = 65 K uncertainty in the photometric Teff. The dotted horizontal line defines the 3σ limit in SC. Stars are identified by HD numbers. Right: the same as the left panel, but for the 8.0 < VTycho ≤ 9.0 stars, only those observed spectroscopically. Below: same as above for stars selected by their UBV similarity to the Sun, presence in the lists of Hardorp (1982), or both.

Open with DEXTER

3. Photometric similarity index

The two-dimensional 2σ ((B − V)Tycho, ) box would automatically select solar twins were it not for the metallicity dimension, since surface gravity effects are negligible in the narrow color–magnitude interval involved here. Stars selected by means of color have a dispersion in Teff corresponding to a dispersion in [Fe/H]. We use throughout the notation [A/B] = log  N(A)/N(B)star − log  N(A)/N(B)Sun, where N denotes the number abundance of a given element. Thus, a metal-rich star cooler than the Sun may mimic the solar colors, as may a star hotter than the Sun but metal-richer. To narrow down further the candidate list to be observed spectroscopically, we defined a color-similarity index SC with respect to the Sun: (1)where Ci represents the color indices (B − V), (B − V)Tycho, (b − y), and m1, and α is an arbitrary normalization constant. The last color is essentially a photometric metallicity dimension, while the three previous colors are independent measurements of the stellar Paschen continuum. This index then simultaneously reflects the gradient of the Paschen continuum and the strength of metal lines. Attempts to employ the β and (V − K) colors in the definition of the index had to be abandoned owing to the large incompleteness of such data for the program stars. The index SC expresses a simple sum of quadratic differences with respect to the adopted solar colors, weighted by the average error of each color. The average color errors for the VTycho ≤ 8.0 stars are The (B − V)Johnson and (B − V)Tycho errors were directly obtained from the Hipparcos catalog, and the (b − y) and m1 errors are given by Olsen (1983, 1993, 1994a,b) for each object. For the 106 stars within 8.0 < VTycho < 9.0, uvby photometry is only available for 68 stars. The corresponding average color errors for the fainter targets are

Olsen (1993) discusses systematic discrepancies between the photometry of southern stars (which he calls the “F” catalog of Olsen 1983) and northern stars (Olsen 1993, 1994a,b, the “G” catalog), providing transformations for the homogenization of the photometry. We employed these transformations to convert all the (b − y) and m1 indices to the “F” catalog of Olsen (1983), since more than half of our prime targets, the VTycho ≤ 8.0 stars, have their photometry in this catalog. Since the color similarity index will be an important tool in the forthcoming discussion, it is very important that the reader keeps in mind that all the Strömgren photometry discussed here is compatible with the catalog of Olsen (1983).

The color-similarity index was computed for the sample taking the different color errors for the VTycho ≤ 8.0 and 8.0 < VTycho ≤ 9.0 stars into account. The solar colors obviously correspond to an index SC = 0.00, and the α constant was adjusted in each case so that a 2σ uncertainty in SC was equal to unity. This was obtained by inserting the solar color themselves into the index equation, added by twice their corresponding errors.

In Fig. 2 the color similarity index for the VTycho ≤ 8.0 stars with SC ≤ 2.4 is shown. The stars located inside the 2σ box are the best candidates, in principle, since they have the Tycho absolute magnitude and color compatible with the solar ones within a formal 2σ limit. A similar diagram was obtained for the 8.0 < VTycho ≤ 9.0 stars. The number of stars within the 2σ boxes for each case was 16 for the brighter and 28 for the fainter candidates. As an initial estimation of the atmospheric parameters, the m1[Fe/H] calibration of McNamara & Powell (1985), along with the photometric Teff calibrations for (B − V), (B − V)Tycho and (b − y) detailed in Appendix A, were used to obtain photometric Teff and [Fe/H] parameters. Though superseded by recent works, the relation of McNamara & Powell (1985) provides a simple linear m1[Fe/H] relationship for solar-type stars, which is very accurate in a narrow interval around the Sun and well linked to the Hyades iron abundance [Fe/H] = +0.12 (Paulson et al. 2003; Cayrel et al. 1985). These photometrically derived atmospheric parameters are plotted in Fig. 3 for all the sample stars for which uvby photometry is available and the SC defined. The solar colors, once entered into this set of calibrations, yields Teff = 5774 K and [Fe/H] = − 0.03, assuring us that no significant systematic error is incurred by the procedure. The photometrically derived [Fe/H], when compared with the final spectroscopic ones (see Sect. 4), define a linear regression with a low correlation coefficient of R = 0.32, but no systematic deviation from the identity line. Under the reasonable hypothesis of statistical independence, the total dispersion of the regression, σ = 0.16 dex, yields σ([Fe/H]phot) = 0.14 dex, when the errors of the spectroscopically determined [Fe/H] are taken into account (Sect. 4). When entered into the Teff calibrations, this uncertainty in [Fe/H]phot, along with the already determined errors in the colors, fixes the uncertainty of the photometrically derived Teff. We obtained σ(Teffphot) = 65 K, a value that surpasses the expected internal dispersion of Teff derived from the (B − V), (B − V)Tycho and (b − y) calibrations, as discussed in Appendix A. This can be explained by the larger errors in colors and [Fe/H] of the sample stars, as compared with the much brighter stars used to obtain the photometric calibrations. For stars not observed spectroscopically (Sect. 4), these are our final determination of the atmospheric parameters and absolute magnitudes. For all the sample, the colors, color similarity indices, along with the photometrically derived Teff, [Fe/H], and absolute magnitudes (in the VTycho band) are shown in Tables 1–3.

In Fig. 3, those stars with a 2σ color similarity with the Sun are clearly contained within the box that defines atmospheric parameters Teff and [Fe/H] within 65 K and 0.14 dex, respectively, from the solar values. It will be shown below that the color similarity index is indeed very efficient in selecting stars which not only are photometrically similar to the Sun, but also possess atmospheric parameters contained within a narrow interval of the solar ones, as determined from a spectroscopic model atmospheres analysis. This approach allows a fast and convenient photometric selection of stars resembling any desired set of colors and atmospheric parameters, expediently diminishing the necessity of spectroscopic follow-up, provided that the colors are sufficiently accurate.

thumbnail Fig. 3

Photometric Teff and [Fe/H], separated by the color similarity index SC. The gray box limits the 1σ errors in the photometric Teff and [Fe/H], and is centered on the solar parameters (the Sun is identified by its usual symbol). Black circles are those stars within a 2σ color similarity with the Sun.

Open with DEXTER

4. Observations and reductions

4.1. OPD optical spectra

Spectroscopic observations were performed with the coudé spectrograph, coupled to the 1.60 m telescope of Observatório do Pico dos Dias (OPD, Brazópolis, Brazil), operated by Laboratório Nacional de Astrofısica (LNA/CNPq), in a series of runs from 1998 to 2002. Spectra were obtained for 47 stars in 2 spectral ranges, ~150 Å wide, centered at λ6145 and λ6563 (Hα). The nominal resolution was R = 20 000, and the signal-to-noise ratio per resolution element ranged from 50 to 440, with an average value of 160. Four stars were only observed in the λ6145 range, and one star only in the λ6563 range. Three objects, HD 73350, HD 146233 (18 Sco), and HD 189625 were observed in separate epochs and reduced and analyzed separately as a procedure control. As proxies of the solar flux spectrum, the Galilean satellites Europa, Ganymede, and Callisto were observed in both spectral ranges; Io was only observed in the λ6563 range.

thumbnail Fig. 4

Left: sample of normalized OPD spectra in the λ6145 spectral range. The nominal resolution is R = 20 000, and the spectra S/N, from top to bottom, are 340 (HD 146233), 120 (HD 19518) and 100 (HD 191487). Some of the Fe i and Fe ii lines used in this spectral range for deriving atmospheric parameters are marked by the vertical dashes. The spectra are arbitrarily displaced on the vertical axis. Right: sample of normalized OPD spectra in the λ6563 spectral range. The nominal resolution is R = 20 000, and the spectra S/N, from top to bottom, are 230 (HD 146233), 200 (HD 159222), and 130 (HD 191487). The spectra are arbitrarily displaced on the vertical axis.

Open with DEXTER

thumbnail Fig. 5

Left: sample of normalized ESO/UV spectra in the λλ42204390 range, around the λ4310 CH bandhead. The nominal resolution is R = 800, and the spectra are arbitrarily displaced on the vertical axis. Right: sample ratioed ESO/UV spectra, normalized to the solar (Ganymede) spectra, in the λλ36004500 range. The spectra are arbitrarily displaced in the vertical axis, and the horizontal red lines mark the unitary flux ratios for each object. The dotted lines are, from left to right, respectively, the approximate central wavelength of the λ3870 CN bandhead, the central wavelengths of the K and H Ca ii lines, and the approximate central wavelength of the λ4310 CH bandhead. The 1σ flux ratio error bar is shown in red.

Open with DEXTER

Data reduction was carried out by the standard procedure using IRAF1. Bias and flat-field corrections were performed, background and scattered light were subtracted, and the one-dimensional spectra were extracted. The pixel-to-wavelength calibration was obtained from the stellar spectra themselves, by selecting isolated spectral lines in the object spectra and checking for the absence of blends, the main screen for blends being the Solar Flux Atlas (Kurucz et al. 1984) and the Utrecht spectral line compilation (Moore et al. 1966). There followed the Doppler correction of all spectra to a rest reference frame. Continuum normalization was performed by fitting low-order polynomials to line-free regions, and a careful comparison to the solar flux spectrum was carried out to ensure a high degree of homogeneity in the procedure. The equivalent widths (hereafter Wλs) of a set of unblended, weak, or moderately strong lines of Fe i and Fe ii were measured by Gaussian fitting in all stars, totalling 15 and 2 lines, respectively, for the best exposed spectra. Sample OPD spectra are shown in Fig. 4.

4.2. ESO/FEROS spectra

The FEROS spectrograph (Kaufer et al. 1999) was used to obtain data for 17 stars, in three runs from 2000 to 2002. Six stars are common between the FEROS and OPD data sets, as a homogeneity test: HD 19518, HD 73350, HD 98649, HD 105901, HD 115382, and HD 146233. A FEROS spectrum of Ganymede was also secured. The standard FEROS pipeline of spectral reduction was used, and the spectra were degraded to the same resolution of the OPD spectra, and clipped to the same wavelength range. The blaze curvature, unfortunately, precluded our use of the Hα profile of the FEROS data. The S/N of the degraded FEROS spectra ranged from 100 to 700, the average value being 400. After this procedure, the data reduction followed exactly the same steps as the OPD data.

4.3. ESO UV spectra

The Cassegrain Boller & Chivens spectrograph of the ESO 1.52 m telescope was used in two runs, in 1997 and 1998, to acquire low-resolution spectra for 37 stars, plus four proxies of the solar flux spectrum: Vesta, Ganymede, Callisto and Io. The useful spectral range was λλ36004600, and the nominal spectral resolution was R = 2000. The exposure times were set to obtain S/N around 100, and only a few cases fell short of this goal. All spectra were reduced in a standard way and wavelength-calibrated. Offsets in the wavelength calibration were corrected by shifting all spectra to agree with the wavelength scale of the Ganymede spectrum. Spectra were then degraded to a resolution of R = 800, and the resulting S/N is better than 200 in all cases. The spectra were normalized and ratioed to the Ganymede spectrum. We estimated errors in the flux spectra remaining from errors in the wavelength calibration as no larger than 1%. Errors due to the normalization procedure were estimated by comparing the ratio spectra of Vesta, Callisto, and Io to that of Ganymede, and attributing all fluctuations to random noise in the normalization: an average value of 1σ = 1.8% results. The Ganymede spectrum was chosen as the preferred reference solar proxy. A similar exercise with the spectra of five stars very similar to the Sun in their UV spectral features yielded 1σ = 1.6%. We estimate that 1σ ~ 2% is a conservative estimate of the flux ratio uncertainty of the spectral features in the UV spectra, between λ3700 and λ4500. Shortward of λ3700 the lower S/N and very strong blending introduce a larger uncertainty in the ratio spectra of strong-lined stars. Samples of the unratioed and ratioed spectra are shown in Fig. 5.

The main goal for the UV data is to verify to what extent, in the spectra of solar analogs, the strength of the CN and CH bands, both very sensitive to the stellar atmospheric parameters, remain similar to the solar ones. Also, the flux ratio at the core of the Ca ii H and K lines, at λλ 3968 and 3934, is very sensitive to the stellar chromospheric filling, and therefore to age, at least within ~2 Gyr of the ZAMS (Pace & Pasquini 2004).

There are 24 stars in our sample with VTycho ≤ 8.0, color similarity index SC < 1.50 (corresponding to a 3σ similarity) and accessible from the southern hemisphere. All of them were observed at either the OPD or FEROS/ESO, excepting HD 28471 and HD 88084. Actually, only four northern objects matching the above criteria, HD 70516, HD 98618, HD 139777, and HD 158222 are inaccessible from either the OPD or FEROS locations. In Tables 1–3, the available spectral data for each star is indicated. Quality checks were performed on the measured Wλs following the same procedure as discussed in detail by Porto de Mello et al. (2008). Saturated lines were eliminated by a 2σ clipping on the relation of reduced width Wλ/λ with line depth, and no lines were measured beyond the linearity limit. Also, no trend is expected in the relation of the line full-width-half-maximum and reduced width, since the line widths are defined by the instrumental profile. The measured Wλs were corrected to bring them onto a system compatible with the Voigt-fitted Wλs of Meylan et al. (1993). This correction is +5.0% for the OPD and +6.0% for the FEROS/ESO Wλs. In Table 4 we list the Fe i and Fe ii lines used with the corresponding excitation potentials and gf-values derived. The Wλs measurements of all analyzed stars are available upon request.

5. Results

5.1. Spectroscopic atmospheric parameters

For the determination of the atmospheric parameters Teff, log g and [Fe/H], we employed a strictly differential analysis with the Sun as the standard star. The expectation of this approach is that systematic errors in the measurement of line strengths, the representation of model atmospheres, and the possible presence of non-local thermodynamic equilibrium (NLTE) effects, will be greatly lessened, given the high similarity of all program stars and the Sun. For each spectroscopic data set, at least one point-source solar proxy was observed in a manner identical to that of the stars.

Solar gf-values were determined for the Fe i and Fe ii spectral lines, from solar Wλs measured off the Ganymede spectra (corrected to the Voigt scale), and an LTE, 1D, homogeneous and plane-parallel solar model atmosphere from the grid described by Edvardsson et al. (1993). The adopted parameters for the Sun were Teff = 5780 K, surface gravity log g = 4.44, [Fe/H] = + 0.00 and ξt = 1.30 km s-1. The adopted solar absolute abundances (which are inconsequential in a differential analysis) are those of Grevesse & Noels (1993), and gf values were independently generated for the OPD and FEROS data sets.

The atmospheric parameters of the program stars were determined by iterating the photometric Teff (calibrations which are described Appendix A) determined from the (B − V)Johnson, (B − V)Tycho, and (b − y) color indices, coupled to the spectroscopic metallicity derived from the Fe i lines. Model atmospheres were interpolated at each step, until the spectroscopic [Fe/H] agreed with the model input. Once the photometric Teff are fixed, the log g was varied until consistency was achieved between the Fe i and Fe ii abundances, to a tolerance of 0.01 dex. The microturbulence velocity in all steps was set by the relation of Edvardsson et al. (1993), as a function of Teff and log g. The photometric calibration and set of Fe Wλs of each star uniquely determines the atmospheric parameter solution.

It is noteworthy that excellent agreement was obtained for the control stars between the atmospheric parameters from two independent determinations based on OPD data, for three stars. The average differences, respectively, for Teff, log g, and [Fe/H] are 13 K, 0.06 dex and 0.03 dex, well within the errors of the analysis. Similarly, for seven stars in common between the OPD and FEROS/ESO data sets, the mean difference in the sense OPD minus FEROS, for Teff, log g and [Fe/H] is +19 K, +0.02 dex and +0.06 dex, respectively, also well within the errors of the analysis. We may thus regard the two data sets as homogeneous, and we show the spectroscopic parameters for all observed stars in Tables 57. For the control objects, we list the averaged values of all available determinations.

Table 5

Atmospheric parameters of the solar analogs with VTycho ≤ 8.0.

Table 6

Same as Table 5 for the 8.0 < VT ≤ 9.0 stars.

Table 7

Same as Table 5 for the solar proxies and stars with UBV colors similar to the solar ones.

5.2. Effective temperature from the Hα profile

Additional effective temperatures were determined for those stars observed in the OPD in the λ6563 range by fitting the Hα line profiles by Lyra & Porto de Mello (2005), so we refer the reader to this paper for details. For the Galilean satellites, no Teff determination from Hα was provided by Lyra & Porto de Mello (2005): for these objects and for some stars also not analyzed by these authors, we determined the HαTeff using exactly the same procedure. The Hα profile wings are very sensitive to Teff but barely respond to the other atmospheric parameters. They are particularly insensitive to metallicity (Fuhrmann et al. 1993), and therefore a robust independent check on Teff. The average uncertainty of the Teff(Hα) determinations is a direct function of the spectral S/N, given the very strong similarity in parameters of all the program stars. This was estimated by the error analysis provided by Lyra & Porto de Mello (2005), and σ(Teff(Hα)) = 50 K resulted. These Teff are very closely tied to the solar Teff zero point since a perfectly solar Teff is retrieved for the spectra of all the solar proxies (the Galilean satellites) (Table 7). The photometric and HαTeff scales therefore share the same zero point, and any systematic offset still to be gauged only remains in scale.

We note, however, that this good agreement should not be taken in an absolute sense. More sophisticated modeling of the solar Balmer profiles (Barklem et al. 2002) point to slight offsets between observations and theory, possibly due to both inconsistencies in the atmospheric models and the line broadening physics. Although very successful in recovering many observational features of the real Sun, even very recent 3D models (Pereira et al. 2013) still cannot reproduce the solar Balmer profiles perfectly. Our good internal consistency between photometric and HαTeff scale should thus be regarded only in a relative sense for solar-type stars in the context of classical 1D modelling.

5.3. Uncertainties in the atmospheric parameters

Formal errors are estimated as follows: for the metallicity [Fe/H], we adopt the average standard deviation of the distribution of abundances derived from the Fe i lines. This was σ([Fe/H]) = 0.08 dex, for the OPD spectra, and only σ([Fe/H]) = 0.04 dex, for the FEROS spectra (owing to the much better S/N of the latter). The error of the photometric Teff is affected by the metallicity error. For two stars with S/N that are representative of the sample, we estimated the Teff uncertainty due to the internal Teff standard deviation of the color calibrations, adding the metallicity error. The values were σ(Teff) = 50 K for the OPD spectra and σ(Teff) = 40 K for the FEROS spectra. The error in log g was estimated, for the same three representative stars, by evaluating the variation in this parameter which produces a disagreement of 1σ between the abundances of Fe i and Fe ii. The result was σ(log g) = 0.20 dex for the OPD and 0.15 for the FEROS data.

5.4. Masses and ages

For all stars with both a photometric and HαTeff determination, we obtained a straight average to produce an internally more precise value of Teff, where the errors of the determinations are very similar. A comparison of the two Teff scales (Fig. 6) reveals excellent internal consistency: nearly all stars are contained within 1σ, and only one object, HD 71334, deviates by more than 2σ of the expected identity relation. The internal compounded error of the average Teff for stars with both determinations is σ ~ 30 K and σ ~ 35 K, for FEROS and OPD stars, respectively. We adopt, conservatively, σ(⟨Teff⟩ ) = 40 K in the following discussion. For the stars with both Hα and photometric Teff, these averaged values were used to plot them in a grid of theoretical HR diagrams by the Geneva group (Schaller et al. 1992; Schaerer et al. 1993, and references therein). Only the photometric Teff were used for the other stars. Bolometric corrections were obtained from the tables of Flower (1996), and masses and ages were interpolated in the diagrams. Astrometric surface gravities were derived from the well-known equation: (2)In Tables 810 we list astrometric surface gravities and their uncertainties (compounding errors in mass, Teff, and luminosity in the equation above), along with bolometric magnitudes (and uncertainties), masses, and ages. It is seen that the internal errors of the astrometric surface gravities are much smaller than those of the ionization ones, and should be preferred in deciding the similarity of a given star to the Sun.

thumbnail Fig. 6

Photometric and HαTeff compared. The thin black line is the identity relation, the red line is a linear least-squares fit, the two dotted lines bound the identity relation by 50 K, and the two thick black lines are the 95% confidence limits of the fit. The only star to deviate significantly from the identity is HD 71334.

Open with DEXTER

5.5. UV spectra

All stars observed in the UV at low resolution had their atmospheric parameters obtained from spectroscopic [Fe/H]s but HD 6512 and HD 28068. We performed a qualitative analysis of the UV stellar spectra divided by that of the solar proxy Ganymede. Our analysis was limited to verifying any significant structure in the ratio spectra differing from unity above the photon noise and normalization uncertainties (Sect. 4.3), and we defer a more complete quantitative investigation to a forthcoming paper. In Table 11 we list all results of this analysis, focused on the behavior of the CN and CH bandheads, respectively centered roughly at λ3870 and λ4310, and the Ca ii H and K lines. It is apparent that nearly all analyzed stars have detectable or strong differences with respect to the solar spectrum. Particularly significant are the differences in the CH and CN bands, which are very sensitive to the stellar atmospheric parameters. Differences in the H and K line cores can be ascribed to different levels of chromospheric filling-in at the epoch of the observations and is not a direct flag of atmospheric parameters differing from the Sun’s.

These data are particularly useful for selecting good UV analogs of the Sun. Such stars are desirable as solar proxies for observing comets, which generally have strong emission in the CH and CN transitions (e.g., Feldman et al. 2004; Grudzińska & Barbon 1968). In the case of cometary observations concentrated in the UV, the real issue is not whether the solar proxy has a strong color similarity to the Sun in the visible, but rather if its CH and CN features reproduce the solar ones well. Cometary emission usually has weak continua, and a good representation of the solar UV flux around the key molecular emission wavelengths is a necessity. Our list contains four stars that reproduce the solar CH and CN strengths very well, but not the solar fill-in in the H and K lines; and two additional stars that are indistinguishable from the Sun, within the errors, in the CN/CH and H and K wavelengths, a fact of some importance since the latter transitions lie in the wings of the λ CN and λ4056 C3 cometary emission lines for low-resolution observations. We discuss these objects in the next section, along with the solar analog and solar twin candidates.

Table 8

Parameters derived from the HR diagram analysis for the VTycho ≤ 8.0 stars.

Table 9

Same as Table 8 for the 8.0 VTycho 9.0 stars.

Table 10

Same as Table 8 for the stars with UBV colors similar to the solar ones.

6. Discussion

6.1. Different ways of masquerading as the Sun

Our spectroscopic analysis revealed a number of stars that possess a strong photometric similarity with the Sun pertaining the Paschen colors and the m1 index, but not necessarily in the UV, as we discuss below. Many of these also have atmospheric parameters, Teff, log g, and [Fe/H] which are very similar to the solar ones within the errors. These objects can be considered as excellent solar analogs, are expected to have a spectral flux distribution very similar to the Sun’s in the blue and red spectral range, and can be used for any observational procedure that requires removal of the solar spectrophotometric signature. The inferred masses cluster tightly around the solar value: indeed, in Tables 8 and 9, corresponding to our Hipparcos sample, only two stars have masses differing from solar by more than 0.1 M, and 74% of the objects have masses within ±0.05 M of the solar value. In Table 10, however, corresponding to stars selected solely by UBV similarity and presence in the lists of Hardorp (1982), various objects differ in mass from the Sun by more than this amount, illustrating the drawbacks of purely photometric criteria in identifying solar twins. On the other hand, the ages of all analyzed stars range very widely, from the zero-age main sequence (ZAMS) to values twice as old as the Sun. It is clear that stars with atmospheric parameters similar to the solar ones span a wide range of evolutionary states, a fact further stressing the differences between solar analogs and solar twins, and the importance of accurately determining atmospheric parameters and luminosities in order to successfully identify the latter.

Cross-checking the color similarity indices of Tables 1 and 2 with the spectroscopic parameters from Tables 57, one gleams that a number of stars that are photometrically similar to the Sun appear so due to a combination of atmospheric parameters: they are either hotter/metal-richer or cooler/metal-poorer than the Sun. The most noteworthy of such objects among the brighter (VTycho ≤ 8.0) sample stars are HD 9986, HD 66653, HD 73350, HD 117939, HD 134664, HD 187237, HD 189625, HD 190771. Examples among the fainter (8.0 < VTycho ≤ 9.0) sample stars are HD 153458 and HD 157750. They can be successfully employed as photometric solar matches in a broad sense, for low-resolution spectroscopy of solar system objects, but any analysis that can be influenced by subtle differences in the strength of metal lines should avoid these stars as solar proxies. They are well spaced in right ascension and span declinations from 64 to +30.

We divide our discussion of specific solar analogs and twins as follows. Purely photometric matches of the Sun, for which we could secure no spectroscopic data; solar analogs for which spectroscopic data are available, some of them qualifying as solar twin candidates; stars selected solely from UBV colors and presence in the Hardorp lists; and, lastly, stars matching the low resolution UV spectrum of the Sun. We close this section by presenting a new list of solar twin candidates having a high degree of photometric and spectroscopic resemblance to the Sun.

6.2. Purely photometric matches to the Sun

Stars for which no spectroscopic observations are available can be judged as good photometric analogs to the Sun solely by the SC color similarity index and photometric atmospheric parameters, besides the Tycho absolute magnitude. In this way stars matching the solar colors can be revealed but not true solar analogs and twins. Considering only stars with SC ≤ 1.50, there are seven stars in the VTycho ≤ 8.0 sample and 30 in the VTycho > 8.0 sample. In the brighter sample, one such object is the well-known solar twin HD 98618 (Meléndez et al. 2006), which is reliably recovered in our procedure. The other six stars are HD 28471, HD 70516, HD 88084, HD 139777, HD 158222, and HD 222143. Hardorp (1982) considered HD 70516 and HD 139777 as poor UV matches to the Sun. Further data may decide if they are good solar analog or twin candidates. All are good photometric matches to the Sun, and are also probable solar analogs except for HD 139777, which is probably less luminous and cooler than the Sun, as well as poorer in metals. Particularly, HD 70516, HD 88084, HD 158222, and HD 222143 should be further investigated since their SC plus the photometric Teff and [Fe/H] suggest a strong likeness to the Sun.

Table 11

Qualitative assessment of the stellar spectral feature deviations from the solar spectrum, expressed as measured in the ratio spectra between the stars and Ganymede.

In the fainter sample, errors in the absolute magnitudes are greater and the objects correspondingly less interesting. Thirty stars are eligible as good solar photometric matches by having SC ≤ 1.50: HD 6512, HD 7678, HD 15632, HD 26736, HD 27857, HD 28068, HD 31130, HD 34599, HD 36152, HD 45346, HD 76332, HD 78660, HD 81700, HD 90322, HD 90333, HD 110668, HD 110869, HD 110979, HD 111938, HD 129920, HD 134702, HD 158415, HD 163441, HD 163859, HD 183579, HD 188298, HD 200633, HD 209262, HD 214635, and HD 215942. Most of the listed objects, additionally, have Tycho absolute magnitude in agreement with the solar one under a 2σ criterion, but for only three objects: HD 15632, HD 34599, and HD 36152. Two stars in this list have UV data, HD 6512 and HD 28068: they are very unlike the Sun in this wavelength range. This sample of 37 photometric matches to the Sun is widely scattered across the sky, has conveniently faint magnitudes, except perhaps for 10 m-class telescopes, and may advantageously substitute Hardorp’s lists in many useful contexts.

6.3. Solar analogs spectroscopically analyzed

Solar twins are automatically solar analogs, but not the other way round: bona fide stars successfully reproducing not only the solar spectrophotometric properties but also its atmospheric parameters and state of evolution must be gauged through spectroscopic analyses, to which we now turn. In the following discussion, it is important to keep in mind that: the [Fe/H] uncertainty of the FEROS data is 0.04 dex, in contrast to 0.08 dex for the OPD data; that the 1σ internal uncertainty in Teff is, approximately, 40 K for stars with both photometric and Hα determinations, but 50 K if only one Teff determination is available; and that the spectroscopic (ionization) log g (Tables 57) is not a good discriminator between unevolved and evolved stars, but the astrometric log g (Tables 57) is.

6.3.1. Brighter HIPPARCOS sample

The metric we adopt to judge a star as a good photometric match to the Sun is SC ≤ 1.50, a 3σ match. When available, we also consider activity data from the UV spectra (Table 11), as well as Hα radiative losses from Lyra & Porto de Mello (2005): on their scale, the value of the solar flux is (1σ), in 105 erg-1 cm-2 s-1. We discuss first those stars with only one Teff determination, for which conclusions carry less weight. In the brighter Hipparcos sample, there are four stars in this situation, all of them analyzed with FEROS data and all without a HαTeff determination:

HD 9986 matches the Sun splendidly in its SC index, but probably has higher metallicity than the Sun, [Fe/H] = +0.09 ± 0.04 dex. Its absolute bolometric magnitude agrees with the solar one only very narrowly in a 2σ sense. It is a fair solar analog candidate, although not a clear solar twin candidate, yet it retains some possibility of a solar twin candidacy and should be further investigated.

HD 66653 is very probably metal-richer at [Fe/H] = +0.15 ± 0.04 dex, but probably also hotter, which could explain its very good photometric similarity to the Sun. Its UV spectrum (see Sect. 6.5) supports just such a Teff and [Fe/H] match, balancing the spectroscopic and photometric properties to resemble the Sun’s. Its chromospheric activity, judged by the H and K fill-in (Table 11) is equal to the solar one, and its absolute magnitude agrees with the solar one to nearly 1σ. It is thus a good photometric and UV match to the Sun, but not a real solar analog.

HD 88072 excellently matches the Sun in the photometric sense, but its absolute bolometric magnitude points to a more luminous and evolved star. Since its atmospheric parameters match the solar ones very closely, it appears to be a good solar analog candidate but not a solar twin case, but it is a close enough match to warrant further study.

HD 187237 is a very good solar photometric match, but it is very likely richer in metals than the Sun, at [Fe/H] = +0.16 ± 0.04 dex. Its bolometric magnitude agrees well with the Sun’s; yet its Teff is probably hotter, explaining its position in the HR diagram very close to the ZAMS. A good photometric match, but neither a solar analog nor a solar twin candidate.

Concerning those stars in the brighter Hipparcos sample now with two Teff determinations and therefore more reliable data, still adopting SC ≤ 1.50, as a metric and considering Hα radiative losses from Lyra & Porto de Mello (2005), we have the following for each.

HD 24293 photometrically matches the Sun well, but it is possibly cooler than the Sun with its lower average Teff = 5735 K; its absolute bolometric magnitude is marginally solar at 2σ. Its UV data show the same chromospheric activity level as the Sun, a similar CN feature but a weaker CH feature, and its activity as judged by the Hα line agrees with the solar level. We conclude that it is a possible solar analog but an unlikely solar twin candidate.

HD 25874 has atmospheric parameters that are indistinguishable from solar besides a good SC index, so it is an excellent solar analog. Its luminosity is higher than solar, reliably established with σ(Tycho Mbol) = 0.03 dex. Activity as judged by the Hα line agrees with the solar level. Our conclusion is that it is not a solar twin candidate, but a prime solar analog.

HD 71334 is an excellent photometric match to the Sun and also has atmospheric parameters very close to solar. Its FEROS data and additional HαTeff determination establish it as a good solar twin candidate since its luminosity matches the Sun’s and it appears more inactive than the Sun in its H and K fill-in, while its activity level as judged by the Hα line agrees with the Sun’s. Its CH feature matches the Sun’s, but the CN band is much weaker. This object warrants closer study.

HD 73350 photometrically matches the Sun very closely, but is probably richer in metals. It has both FEROS and OPD data, so this is probably a robust result. Teff is solar but luminosity is lower with 2σ reliability. It lies close to the ZAMS and is a well known very active star (Lyra & Porto de Mello 2005) with much higher activity than the Sun, so it is a good photometric match but not a solar analog or twin candidate. We note that Hardorp (1982) did not consider it as a good UV match to the Sun.

HD 117939 is an excellent photometric match for the Sun and also has atmospheric parameters very close to solar. Since its luminosity also matches the Sun, it is a good solar twin candidate and deserves additional analysis, but its activity level from the Hα line is higher than solar, (1σ).

HD 134664 is a close solar photometric match, but its metallicity [Fe/H] = +0.13 ± 0.08 dex is not as good a match. Teff is solar within the errors and the luminosity also matches the Sun’s within 1σ, yet this star has the largest parallax error in the brighter Hipparcos sample. Its activity level from the Hα line is lower than solar, (1σ), and we conclude it is a probable solar analog but only a marginal solar twin candidate.

HD 138573 matches the Sun both photometrically and in its atmospheric parameters. Its luminosity also agrees with the solar one, so we conclude it is a good solar twin candidate, but for a much enhanced radiative loss in the Hα line, (1σ), a value compatible with the Hyades cluster (Lyra & Porto de Mello 2005). We note that Datson et al. (2012, from photometry only) and Takeda et al. (2007, from spectroscopy) mention it as a possible solar twin

HD 146233 is the well known solar twin 18 Sco, HR 6060 and the only star in our Hipparcos sample brighter than VTycho = 6.0 (besides HD 30495). It is an excellent photometric match in the SC index, its atmospheric parameters are solar within 1σ, and luminosity, mass, and age are all very close to solar. Our method establishes it firmly as a good solar twin candidate, lending confidence that additional candidates can be thus revealed. Nevertheless its UV features are not exactly solar: the CN band is weaker, and it appears slightly less active than the Sun in the H and K chromospheric fill-in. Its activity level from the Hα line is slightly lower than solar, (1σ). We note that Hardorp (1982) did not consider HD 146233 as a close UV match to the Sun.

HD 150248 is an excellent photometric match to the Sun, and its atmospheric parameters and luminosity are sunlike within 1σ. Mass and age also agree very well, the Hα radiative loss is solar within the errors, and thus it is still another very good solar twin candidate.

HD 164595 is also a good photometric match and has atmospheric parameters and luminosity within 1σ of the solar ones, the Hα radiative loss is solar within the errors, and this star is another excellent solar twin candidate. Interestingly, Fesenko (1994) mentions this star as the one most resembling the Sun, photometrically, in his survey of 10 700 stars with WBVR magnitudes in the Moscow Photometric Catalog.

HD 189625 is a good photometric match but is probably metal-richer than the Sun, with [Fe/H] = +0.27 ± 0.08 dex. It is also possibly hotter with Teff⟩ = 5840 K, a likely explanation for its good photometric similarity. Absolute magnitude is marginally solar within 2σ, and mass is probably higher than solar. The Hα radiative loss is slightly enhanced relative to solar, (1σ). It is neither a solar analog nor a solar twin case.

HD 190771 is probably hotter and more metal-rich than the Sun, but a good photometric match. Its UV data point to different CN and CH features and a much stronger chromospheric fill-in in the H and K lines, which agrees with its evolutionary position close to the ZAMS, despite absolute magnitude agreeing with the solar one. This is confirmed by a much higher chromospheric flux in the Hα line, (1σ), a value compatible with the Hyades cluster or the very young Ursa Major moving group (Lyra & Porto de Mello 2005). Neither a solar analog nor a solar twin.

HD 207043 matches the Sun well photometrically and has atmospheric parameters within the Sun’s at the 1σ level, and yet its absolute magnitude and evolutionary position point to a younger star that is much less evolved than the Sun, which is confirmed by its higher Hα radiative loss, (1σ). Hence, a very good solar analog but no solar twin candidate.

The analysis of the atmospheric parameters, photometric similarities, and the evolutionary state of the brighter stars in the Hipparcos sample yields, therefore, three possible solar analogs, HD 9986 and HD 88072 (with only one Teff determination) and HD 24293 (two Teff determinations), as well as two definite very good solar analogs, HD 25874 (with higher luminosity than the Sun) and HD 207043 (with lower luminosity). The real bounty, however, is three possible solar twin candidates, HD 71334, HD 117939, and HD 134664, and three new excellent solar twin candidates: HD 138573 (more active than the Sun, though), HD 150248, and HD 164595, besides a confirmation by our method of the known twin HD 146233, 18 Sco. Existing data for Hα radiative losses, however, point to HD 117939 and HD 138573 having more enhanced chromospheric activity than the Sun.

6.3.2. Fainter HIPPARCOS sample

The stars of the fainter Hipparcos sample with SC ≤ 1.50 all have two Teff determinations, and there are eight cases to discuss. Errors in absolute bolometric magnitude in this sample range from 0.10 to 0.15, and conclusions concerning solar twin candidacy carry correspondingly less weight than in the brighter Hipparcos sample.

HD 12264 is a good photometric match and has atmospheric parameters that all match the Sun’s within 1σ. The absolute bolometric magnitude also matches the solar one, but its UV spectrum is very unlike the solar one, also presenting much stronger fill-in in the H and K lines, confirmed by a much higher chromospheric flux in the hα line, (1σ). Thus, it is a good solar analog but an unlikely solar twin candidate: the higher errors in luminosity could have masked an evolutionary state close to the solar one, but existing data on activity points toward a much younger star.

HD 98649 closely matches the Sun in photometry, atmospheric parameters, and absolute magnitude. It has no UV data, but the chromospheric flux gauged by Hα is solar within 1σ. It is an excellent solar analog and a clear case for solar twin candidacy, besides one of the lowest errors in absolute magnitude in the fainter Hipparcos sample.

HD 115382 is a good photometric match and has atmospheric parameters very close to solar. Its Hα chromospheric flux also matches the Sun’s, and the absolute magnitude agrees with the solar value though only within a large error of 0.16. Thus it is a good solar analog and still a solar twin candidate.

HD 118598 is a nearly perfect photometric match to the Sun, besides having atmospheric parameters and absolute magnitude closely solar. Its Hα radiative loss also agrees with the Sun’s, and its absolute magnitude error of 0.12 dex is at the lower end in the fainter Hipparcos sample. We conclude it is a good solar analog and a solar twin candidate.

HD 140690 is an interesting case in that it was selected only in an incipient version of our Hipparcos color-absolute magnitude boxes. It is more luminous than the Sun, a good photometric match to it, and has atmospheric parameters that are indistinguishable from solar. It is clearly a very good solar analog but not a solar twin. In the UV, however, it is the closest match to the Sun in our sample, indistinguishable in the CN and CH features and also in the chromospheric fill-in in the H and K lines. Its Hα radiative loss also matches the Sun’s, and it is therefore a very good solar analog and a perfect UV analog. It is a very interesting spectrophotometric proxy of the Sun in a very wide wavelength range.

HD 153458 is an excellent photometric match to the Sun but is without doubt hotter and richer in metals, with Teff⟩ = 5830 K and [Fe/H] = +0.20 ± 0.08 dex. Its absolute magnitude agrees very well with the Sun’s, and the Hα radiative loss is much higher than solar, (1σ). A good photometric match, but neither a solar analog nor a twin.

HD 157750 is a fair photometric match but is another case of a star hotter and richer in metals, with Teff⟩ = 5845 K and [Fe/H] = +0.21 ± 0.04 dex. Its absolute magnitude agrees very well with the Sun’s, and the Hα radiative loss is much higher than solar, (1σ). In the UV it has a solar CN feature but a weaker CH one, besides much stronger fill-in in the H and K lines, in good agreement with the Hα data and an inferred evolutionary position close to the ZAMS. We deem it a reasonable photometric match, but neither a solar analog nor a twin.

Lastly, HD BD+15 3364 is a fair photometric match with atmospheric parameters, and absolute magnitude (with an error of 0.16) in very good agreement with the solar ones, and also a solar level of radiative losses in Hα. This object is clearly a good solar analog, and also a solar twin candidate: Hardorp (1982) mentioned it as a close match to the solar UV spectrum.

thumbnail Fig. 7

Left: color similarity index SC plotted versus the final photometric Teff (obtained from the spectroscopic [Fe/H]) and the spectroscopic [Fe/H] for all spectroscopically analyzed stars. The vertical colored bar is coded by the SC values: note that the scale of the coding is different between the two plots. Right: same as the left panel, but for the stars with SC ≤ 3.0. It is clear that a combination of hot/metal rich and cool/metal poor parameters defines an area of good photometric similarity to the Sun, and also that the stars with the highest color similarity to the Sun have atmospheric parameters more tightly clustered around the solar values.

Open with DEXTER

6.4. UBV similarity and Hardorp list stars

These stars were only selected on the basis of UBV similarity to the Sun and presence in Hardorp’s lists, and are therefore not expected to have much resemblance to the solar atmospheric parameters and state of evolution. Five stars from Hardorp’s lists were spectroscopically analyzed. HD 105590 has atmospheric parameters close to solar (but only one Teff determination) but a very unsolar-like SC index: Hardorp (1982) regarded it, though, as a solar analog. HD 186408 was not considered by Hardorp as a close case as solar analogs go, but it is photometrically very similar to the Sun in the SC index: its Teff is close to solar (but this is judged from a single determination) and its [Fe/H] appears higher than solar within the uncertainty. Previous analyses (Friel et al. 1993; Porto de Mello & da Silva 1997) confirm this star as a good analog but not a solar twin. Two other Hardorp stars with SC indices close to solar turn out not to be solar analogs at all: on the one hand, HD 159222, considered a close solar UV match by Hardorp, is hotter, richer in metals, and more evolved than the Sun; on the other hand, HD 101563, considered by Hardorp as a bad UV match to the Sun, is much more massive, more evolved, and poorer in metals. One more Hardorp star, but only judged by its UV spectroscopy, is HD 28255: it does not resemble the Sun in either its CN and CH features or its SC index.

Eight stars were selected by having solar UBV colors within the adopted errors. Four of these have only UV spectroscopy, and only one, HD 16141, turns out to have CN and CH features resembling the Sun’s (but a weaker chromospheric fill in the Ca ii H and K lines; we also note that Hardorp 1982 found it to be a bad UV match to the Sun, at variance with us). Its SC index is, however, very non-solar. The remaining four stars with solar UBV colors were spectroscopically analyzed, but none is photometrically similar to the Sun or has a strong resemblance in atmospheric and/or evolutionary parameters.

The results for these stars further illustrate the danger of choosing solar analogs from scarce data.

Table 12

New solar twin candidates identified in this work.

6.5. Ultraviolet matches to the solar spectrum

There are 37 stars that could be compared to the Sun in the UV range at low resolution (Table 11). Still undiscussed are HD 26767 and HD 43180 from the fainter Hipparcos sample, and for which no additional data is available but for the UV spectroscopy: none of them closely resemble the Sun in their UV features or have a sunlike SC index. We found four stars with both a strong SC similarity to the Sun and solar-like CN/CH features. Two of these have already been discussed above: HD 66653 is photometrically similar to the Sun, but this is probably owing, as seen above, to a combination of higher Teff and [Fe/H]. Its UV features are very similar to the Sun, including the chromospheric fill-in in the HK lines, and it is proposed as a good solar proxy in the UV. The other one, HD 140690, is a very good solar analog strongly resembling the Sun in its SC index, besides having the UV spectrum indistinguishable from the solar one. It is a rare case in which the atmospheric parameters, the Paschen colors, and the UV spectral features are very solar-like, and it can therefore be proposed as an excellent photometric analog of the Sun in a wide wavelength range, a very interesting object indeed. Nevertheless it is not a solar twin candidate, since it is more luminous and probably more evolved than the Sun.

There are two other stars with SC ≤ 1.50 and very solar-like UV features. The first is HD 159656. It was selected from Hardorp’s lists, is a good photometric match to the Sun, but is definitely hotter than the Sun, as well as probably being richer in metals. Hardorp (1982) did not mention it as a good solar match in the UV. Its chromospheric H and K fill-in is also much stronger than the Sun’s. Second, we have HD 221343: it is not a good photometric match, its atmospheric parameters are determined from poor S/N data, and its H and K emission is much stronger than solar. Our results suggest it is probably hotter and richer in metals than the Sun. Our analysis thus presents only HD 140690 as a truly good photometric analog to the Sun also with a UV spectrum that is strongly solar-like.

Two other objects merit comment: HD 16141, already discussed above, is a very poor photometric match to the Sun, and it only has UV spectroscopic data, but its CN and CH features are indistinguishable from solar. Its H and K emission is weaker than solar. Its purely photometric Teff and [Fe/H] point to its being cooler and metal-poorer than the Sun. Finally, HD 68168 is not a good photometric solar match, but again it has very sun-like CN and CH features, yet weaker H and K fill in. Our spectroscopic analysis suggests it is richer in metals than the Sun but it possesses solar Teff within errors, based on only one Teff determination.

The UV wavelength range is thus a very fine discriminator of solar analogs and it is apparent that the CN and CH features, even in low resolution, can bring out differences in Teff and [Fe/H] between stars and the Sun, which are, at best, very hard to reveal by spectroscopic analyses. The UV approach clearly warrants deeper analysis with more data, which we plan to present in a forthcoming paper.

Good solar twins appear unequivocally linked to a fair photometric similarity to the Sun as inferred from our SC index. In Fig. 7 we plot our Teff versus the spectroscopic [Fe/H]s, shown as SC contours, for two different regimes of color similarity to the Sun: all analyzed stars and only those with SC ≤ 3.0. This plot illustrates in greater detail what has already been gleamed from Fig. 3: stars with atmospheric parameters very similar to the Sun’s automatically produce high similarity in SC as well, but there is a locus in which stars with Teff and [Fe/H] values quite different from solar may mimic a high degree of similarity to the Sun. Roughly, for every +0.1 dex increase in [Fe/H], a parallel +36 K increase in Teff leaves SC unchanged. A spectroscopic analysis is then needed to remove the degeneracy and separate true solar analogs from stars merely mimicking a strong spectrophotometric similarity to the Sun.

6.6. New solar twin candidates

In Table 12 we list ten stars pointed out by our survey as interesting new solar twin candidates, along with the Sun and the known twin HD 146233 (a.k.a. 18 Sco) for comparison. At the top of the list there are six stars from the brighter Hipparcos sample, three of them “probable” twins, and three only “possible” twins, with weaker claims. The atmospheric and evolutionary parameters are shown with their errors (excepting mass, for which errors are usually 0.020.03 solar masses, and age, for which errors are generally so large as to preclude definite conclusions), and we also provide comments on the chromospheric activity level. The last four entries in the table correspond to stars from the fainter Hipparcos sample, two of these being “probable” solar twins, and two more classified as “possible” twins. The very best candidates are HD 150248 and HD 164595, which match the Sun well in every parameter plus the level of chromospheric activity and which belong to the brighter Hipparcos sample, so have reduced errors in parallax and luminosity. In the fainter Hipparcos sample, HD 98649 and HD 118598, which also match the Sun perfectly, have reasonable uncertainties in luminosity, and are also chromospherically inactive. These stars will be subjected to a more detailed scrutiny, including the lithium abundance and additional chromospheric activity indicators, in a forthcoming paper.

HD 146233, 18 Sco, remains the only one bright (VTycho ≤ 6.0) solar twin candidate or confirmed solar twin known so far. We may ask, given the completeness of the data used as input in our survey, what the probability is of finding still other solar twin candidates among the VTycho ≤ 8.0 stars. This can be roughly estimated as follows. Among the G-type, VTycho ≤ 8.0 stars in the Hipparcos catalog, completeness in the (B − V)Tycho color is 95%. We selected 52 stars for our survey within this magnitude limit, and supposing that 5% are missing, there are 2.6 stars we failed to select. We spectroscopically analyzed 30 stars among the 52 star sample, and found four “probable” solar twin candidates, which, plus the previously know solar twins HD 146233 and HD 98618, gives a total of six solid twin candidates. Thus, among 30 analyzed stars, we have six twin candidates, a rate of 20%. There are, as a consequence, 2.6/5 ~ 0.5 stars missing from our survey, owing to incompleteness, which are probable twin candidates. Now, because there are seven stars in our brighter sample for which we could not secure spectroscopic data (leaving aside HD 98618, accepted as a known twin) and which have SC ≤ 1.50, there remains a possibility that ~1.4 of these are probable twins that we have so far failed to identify. Given that among 52 stars selected for the brighter Hipparcos sample, only two, or 3.8%, are brighter than VTycho = 6.0, there is at best (1.4 + 0.5) times 0.038 ~ 0.076 stars with VTycho ≤ 6.0, which are probable solar twin candidates, and we failed either to select in the first place or to analyze specotroscopically. This figure is probably overestimated since completeness in the Hipparcos catalog falls off between VTycho ≤ 6.0 stars and our magnitude limit VTycho = 8.5, meaning that it is very unlikely that solar twins any brighter than HD 146233 remain undetected.

7. Conclusions

We have reported a photometric and spectroscopic survey of solar twin stars that is photometrically all-sky, complete out to 40 pc, and partially complete out to 50 pc, and involving 136 solar-type stars. We derived photometric Teff and photometric metallicities [Fe/H] for the whole sample and ranked these stars relative to the Sun by means of a photometric similarity index. Spectroscopic parameters based on moderate-resolution, high-S/N spectra were also derived for a subsample of 55 stars, and for these we derived spectroscopic metallicities, photometric Teff based on the spectroscopic metallicities, and Teff derived from the fitting of Hα profiles. Masses and ages were also provided for the spectroscopically analyzed stars. Low-resolution UV spectra are available for a subsample of 37 stars, allowing the evaluation of their relative similarity with respect to the Sun in the CH and CN molecular features, as well as the chromospheric fill-in in the Ca ii H and K lines. Our conclusions are as follows.

  • 1)

    The color-similarity index is very successful in selecting stars having colors and atmospheric parameters that are very similar to the solar ones. A large number of new solar analogs were identified, and these objects proposed as useful spectrophotometric proxies of the Sun, satisfying various degrees of accuracy and covering essentially all of the sky with a magnitude limit VTycho ≤ 8.5. They should be particularly useful as solar proxies for photometry and/or low-resolution spectroscopy of solar system bodies.

  • 2)

    Two stars were also shown to have all the near UV spectral features indistinguishable from solar and were suggested as solar UV templates. Only one, however, HD 140690, possesses atmospheric parameters equal to the Sun’s, making it a solar analog, and it also photometrically matches the Sun well in the Paschen continuum colors and the Strömgren m1 index. It was therefore proposed as a prime solar analog from the UV out to the visible wavelength range. Other stars were shown to resemble the Sun in the UV owing to a fortuitous composition of atmospheric parameters, and care should be exercised in selecting stars to represent the Sun both in the UV and visible ranges. Good UV solar proxies may be particularly important for observing UV emission lines in comets.

  • 3)

    The spectroscopic and evolutionary analysis revealed five new “probable” solar-twin candidates, plus five new “possible” twin candidates, besides successfully identifying two previously known solar twins, HD 146233 and HD 98618. The four probable new solar twin candidates, HD 98649, HD 118598, HD 150248, and HD 164595, have atmospheric and evolutionary parameters indistinguishable from the solar ones within the uncertainties, besides a low level of chromospheric activity, so they clearly warrant closer scrutiny.

In a forthcoming paper, we will discuss these objects in more detail, including a multi-element abundance analysis, additional criteria to determine Teff, a deeper study of their spectroscopic chromospheric indicators, the determination of their kinematics, and a more detailed evolutionary analysis.

Appendix A: Metallicity-dependent IRFM Teff calibration for solar-type stars

Theoretical calculations in stellar modeling predict relations between structural quantities that see little change during stellar evolution, such as mass and metallicity, and others that vary extensively, such as effective temperature, radius, and luminosity. These quantities are not straightforward to determine, and their match to accessible observational data such as colors lies at the heart of stellar astrophysics. The effective temperature is the most basic stellar parameter that affects the model atmosphere abundance analysis of stars. Moreover, at least for nearby stars for which very precise parallaxes are presently available (ESA 1997), the Teff is now the single most important source of error in placing stars in theoretical HR diagrams.

The aim of the Teff calibrations presented here is not to emulate or be an alternative to the many excellent resources available nowadays (e.g., Casagrande et al. 2010, 2006; Masana et al. 2006; Ramírez & Meléndez 2005b), but to provide, in the context of a solar analog search, a solid base for comparing photometric Teff to those inferred from spectroscopy and Balmer line profiles with the specific aim of better distinguishing small Teff differences between the Sun and candidate solar analogs and twins. To apply differential philosophy to the greatest possible extent and to ensure maximum homogeneity, it is desirable that all Teff scales employed in the present study be tied to a similar suite of model atmospheres, in our case the MARCS system of model atmospheres, as described by Edvardsson et al. (1993, see http://marcs.astro.uu.se; Gustafsson et al. 2008).

An “ideal” direct Teff calibration should be based on an extensive set of precise measurements of bolometric fluxes and angular diameters and be independent of any grid of model atmospheres. Among the various “indirect” methods employed so far alternatively, one of the most advantageous is the infrared flux method (IRFM; originally described by Blackwell & Shallis 1977; Blackwell et al. 1986) since it relies only weakly on theoretical representations of stellar atmospheres. Details on the method are given by Blackwell et al. (1986, 1990).

Some recent determinations of the relation between Teff(IRFM) and stellar colors (e.g., Masana et al. 2006; Casagrande et al. 2010; Ramírez & Meléndez 2005b) report that the Teff scale of FGK stars is established to better than ~1% or ~60 K. Casagrande et al. (2006) find good agreement between empirical and synthetic colors both for the ATLAS and MARCS families of models in the visible, but less so in the infrared, and also report, concurrently with Masana et al. (2006) and da Silva et al. (2012), that good agreement is realized between the spectroscopic and photometric Teff scales for solar-type stars, although disagreements of a few percent are found between different authors. However, much equally recent work (e.g., Ramírez et al. 2007; Ramírez & Meléndez 2005a; Yong et al. 2004) state that the spectroscopic Teff scale of solar-type stars is hotter than the photometric one by ~100 K. This is in line with Porto de Mello et al. (2008), who find, in a detailed analysis of the very well-studied double system α Cen AB, a discrepancy between the spectroscopic Teff scale and those from photometry and the fitting of Balmer line profiles. Nonetheless Ramírez & Meléndez (2005a) and da Silva et al. (2012) obtain good consistency between photometric Teff and those derived from the fitting of Balmer line profiles. Despite recent efforts (Casagrande et al. 2010) to clarify these offsets, a somewhat confusing picture still emerges from the literature concerning the overall agreement of the photometric, Balmer line, and spectroscopic Teff scales over a wide parameter range; fortunately, much better consistency can be found near the solar parameters (da Silva et al. 2012), thus the broader issues of the Teff scale of FGK stars need not concern us here.

Table A.1

Objects selected for the Teff versus color calibrations.

Table A.2

References for the uvbyβ photometry and [Fe/H] of Table 13.

Selection of photometry, IRFM T eff and [ Fe/H ] data

Our choice of older IRFM Teff determinations is based mainly on the goal of realizing strict consistency with the MARCS models used in our [Fe/H] (Sect. 5.1) and Balmer line Teff (Sect. 5.2) determinations, and therefore our emphasis was not on the latest resources. The adopted Teff values, given in Table A.1, come from Saxner & Hammarbäck (1985) and Blackwell et al. (1991), who used MARCS models in their derivation of IRFM Teff values. In Table A.1 we also list the [Fe/H] measurements and photometry used in the calibrations. As in Sect. 2, strong preference was given to the series of papers by Olsen and co-authors as sources of the (b − y) indices. Sources of these data are given in detail in Table A.2. We have selected 18 stars from Saxner & Hammarbäck (1985) and 23 stars from Blackwell et al. (1991), with 5 stars in common, totalling 36 stars: Teff for the common stars between these two sources agree within a mean value of 0.8%, and straight averages were used in these cases. All objects have FGK-types and are classified as dwarfs or subgiants (surface gravities confirm this status in all cases); they span approximately a 5000 K Teff≤ 6500 K range, the range in metallicity being −0.4 ≤[Fe/H] ≤ + 0.3, with a modest extension to more metal-poor stars; and are close enough that reddening corrections are unnecessary. These atmospheric parameter ranges bracket those of our solar analog and solar twin candidates perfectly.

Blackwell & Lynas-Gray (1994) and Mégessier (1994) discuss discrepancies between the use of older MARCS models and more up-to-date ATLAS models in the deriving of IRFM Teff. These offsets might amount to ~1% at the extremes of the main sequence, but were found to be much smaller for solar-type stars. Differences between the Teff values of Blackwell & Lynas-Gray (1994) and Blackwell et al. (1991) average + 10 ± 30 K, which is inconsequential to our purposes. Moreover, we show below that the calibrations derived here are in very good agreement with recent ones widely cited in the literature. Casagrande et al. (2006) have discussed systematic differences between MARCS and ATLAS models and conclude that while good agreement is found in the visible, in the IR offsets still remain and may be traceable to lingering uncertainties in the absolute flux calibration of Vega, which they regard as a factor still influencing the accuracy of IRFM Teff determinations.

Our calibrations aim derive empirical Teff relations as a function of the most commonly employed photometric colors and additionally, at calibrating the metallicity dependency of the blanketing-sensitive color indices precisely, by using exclusively spectroscopically derived [Fe/H] values. The literature was searched for spectroscopic metallicity determinations based on high-resolution spectra and employing a large number of Fe i lines. The [Fe/H] values were corrected to full consistency to the Teff (IRFM) scale: for this we used the Δ[Fe/H]/ΔTeff provided by the authors themselves, when available, or else the representative value of 0.06 dex for 100 K, to correct [Fe/H] as a function of the difference between the Teff adopted in the spectroscopic analysis and the IRFM Teff for each star. These [Fe/H] values have considerable heterogeneity in what concerns observational data and methods of analysis and part of this heterogeneity should be removed by the correction to the common Teff (IRFM) scale, besides realizing full consistency with the metallicities we derived in Sect. 5.1 for our solar-analog and twin candidates, which are strictly tied to the photometric Teff scale.

The calibrations and comparison to other authors

Our calibrations of Teff against various color indices in widespread use are given in Figs. A.1 to A.8, along with their (non-exhaustive) comparisons with published results in wide use. As expected, the data points define tight correlations with little scatter. We tested for possible trends in the correlations with [Fe/H] and log g, and in all cases surface gravity did not affect the calibrations, as expected from the quite narrow range of this parameter among our sample. Some colors are clearly affected, however, by blanketing effects to different degrees, even in our narrow Teff and [Fe/H] range. Below we give details on the functional forms of the adopted calibrations and their comparison with the literature. We performed two experiments concerning the use of homogenized values from the literature as compared to those selected from individual references. The first one concerns the (b − y) and β photometry, and we tested the use in the calibrations of values taken from individually selected papers compared to mean values given by Hauck & Mermilliod (1998, 1990). The other test involved comparing the calibrations obtained with [Fe/H] taken from selected works as opposed to mean values from [Fe/H] catalogs (Cayrel de Strobel et al. 2001). For the photometry, significantly tighter regressions and smaller errors in the coefficients were attained when critically selected values from the literature were employed. A similar yet less clear-cut result was obtained for [Fe/H]. We therefore conclude that catalogs of homogenized values, while extremely helpful, should be used with some care. Not all possible comparisons to recent literature are shown in the plots in order not to clutter the diagrams unnecessarily, but relevant remarks are given in the text.

In Figs. A.1 to A.8 the sample is stratified in two [Fe/H] intervals separated by [Fe/H] = 0.10. The necessity of a [Fe/H] term is clear in the Paschen continuum colors, and for the (B − V)Johnson, (B − V)Tycho and (b − y) regressions we have adopted the same functional relationship as in Saxner & Hammarbäck (1985). For the (R − I)Johnson, (V − R)Johnson and (V − I)Johnson regressions, a linear form was found satisfactory, and no [Fe/H] term was necessary, while for (V − K)Johnson, and β second-order functions improved the regressions significantly, and also no [Fe/H] trends appear. As a formal estimate of the uncertainties, in Figs. 8 to 15 we plot an error bar quadratically composed of the standard deviations of our regressions and a 2% formal error on the Teff used for the calibrations (as estimated by Casagrande et al. 2006). While probably underestimating the total error budget, since these two error sources are not independent, this estimate should properly account for differences between Teff scales from different authors, as well as the internal uncertainty in our regressions.

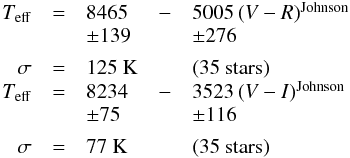

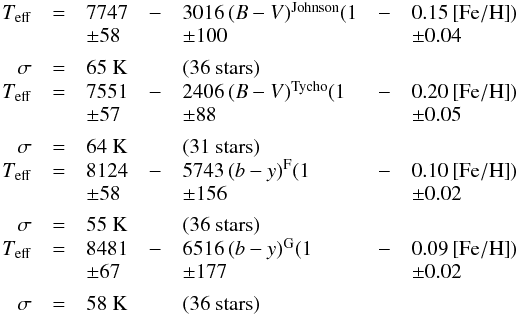

The corresponding regressions are given below, where we also provide the uncertainties in the coefficients, the standard deviation of the fit, and the number of stars employed in each regression: Some of these calibrations have already been successfully employed in determining photometric Teff for solar-type stars (del Peloso et al. 2005; da Silva et al. 2012). We now comment on the agreement of the calibrations shown in Figs. 8 to 15 with various published ones in regular use.

thumbnail Fig. A.1

Our calibration for the (B − V)Johnson index compared to literature results. The adopted 1σTeff error (see text) is shown as the thick red vertical bar. Full squares are stars with [Fe/H]>+0.10 dex, open squares with [Fe/H]<+0.10 dex. The black full and dotted lines refer, respectively, to our calibrations for [Fe/H] = +0.00 and [Fe/H] = 0.50; the red and blue lines follow the same [Fe/H] convention for the relations of Alonso et al. (1996) and Casagrande et al. (2006), respectively.

Open with DEXTER

thumbnail Fig. A.2

Same as Fig. A.1 for the (B − V)Tycho index: the red and blue lines are the relations of Ramírez & Meléndez (2005b) and Casagrande et al. (2010), respectively.

Open with DEXTER

thumbnail Fig. A.3

Same as Fig. A.1 for the (b − y) index: the red and blue lines are the relations of Alonso et al. (1996) and Blackwell & Lynas-Gray (1998), respectively.

Open with DEXTER

thumbnail Fig. A.4

Same as Fig. A.1 for the (R − I)Johnson index. The cross stands for HR 417, without known [Fe/H]. The black full line is our calibration, the blue line that of Casagrande et al. (2006), and the red full and dotted lines follow the same [Fe/H] convention as Fig. A.1 for the calibration of Alonso et al. (1996).

Open with DEXTER

thumbnail Fig. A.5

Same as Fig. A.4 for the (V − R)Johnson index: the red full and dotted lines follow the same [Fe/H] convention as Fig. A.1 for the calibration of Alonso et al. (1996).

Open with DEXTER

thumbnail Fig. A.6

Same as Fig. A.4 for the (V − I)Johnson index. The red line is the calibration of Alonso et al. (1996).

Open with DEXTER

In Fig. A.1, for (B − V)Johnson, a comparison with Alonso et al. (1996) shows good agreement within the 1σ uncertainty we adopt for our target interval of 5000 K Teff 6500 K. The results of Casagrande et al. (2006) are in very good agreement with ours in the full Teff range but for a 2σ offset at the hotter end, where their values are hotter. The magnitude of the [Fe/H] sensitivity is similar in the three calibrations, but the curvature in our relation is significantly less than in the others, which may be explained by our shorter Teff interval. The Ramírez & Meléndez (2005b) calibration is cooler than in Casagrande et al. by ~100 K, and more similar to the Alonso et al. one. The latter relation implies a solar (B − V) bluer than ours by about 0.03 mag, while the value implied in Casagrande et al. agrees very well with ours. The comparison of our (B − V)Tycho calibration in Fig. A.2 was done with Ramírez & Meléndez (2005b) and Casagrande et al. (2010). There is good agreement with the former at the ends of our Teff range, but at the solar Teff their relation is cooler by ~130 K. Their sensitivity to [Fe/H] is similar to ours, but their regression has a much more pronounced curvature. Very good agreement, however, is found between our relation and that of Casagrande et al. (2010). This color should be more explored more, since little use has been made of it in IRFM Teff calibrations. Its errors are similar to those of (B − V)Johnson, and its [Fe/H] sensitivity is comparable. For (b − y), we separately provide relations for the photometry of the F (Olsen 1983) and G (Olsen 1993) catalogs. We compare in Fig. A.3 our relation due to the F catalog with those of Blackwell & Lynas-Gray (1998) and Alonso et al. (1996), and the regressions by Blackwell & Lynas-Gray (1998) are given separately for two different ranges separated at ~6000 K according to their prescription. These authors do not specify which of the Olsen photometry systems is used in their calibrations. The regression of Alonso et al. (1996) depends on the Strömgren c1 index: for the comparison we fixed this index at the middle of our interval, namely the value of 18 Sco, a warranted approximation given our narrow log g interval. Agreement is good particularly at the hotter end and still within 2σ down to Teff~ 5000 K. The three calibrations have similar curvatures in this range, but our [Fe/H] sensitivity is higher than that of Alonso et al. (1996), which in turn is higher than for Blackwell & Lynas-Gray (1998). The solar (b − y) color implied by the Alonso et al. (1996) calibration is bluer than ours by 0.02 mag, while good agreement is found with Blackwell & Lynas-Gray (1998).

The infrared Johnson colors are found to be independent of [Fe/H] in our relations. We compare our (R − I) calibration in Fig. A.4 with those of Alonso et al. (1996) and Casagrande et al. (2006), where the latter relation is independent of [Fe/H], while the former is not. The relation of Casagrande et al. (2006) has been transformed from the Cousins to the Johnson system with the prescription given by Bessell (1979). Our results agree very well with Alonso et al. (1996), especially at the ends of our Teff range: near the solar Teff the offset is still within 1σ. The Casagrande et al. (2006) calibration is in good agreement with ours near the solar Teff but is hotter at both ends of our Teff range, particularly near Teff = 6500 K where the disagreement reaches 2σ. For the Johnson (V − R) and (V − I) colors, we compare respectively in Figs. A.5 and A.6, our relations to Alonso et al. (1996). For (V − I) we both found no sensitivity to [Fe/H], and agreement is good for the full Teff range. For (V − R), the Alonso et al. (1996) relation depends on [Fe/H], unlike ours, but again good agreement is found for the full range: however, a larger scatter is seen, and the standard deviation of our fit for this color is the highest. For the Johnson (V − K) color, we compared in Fig. A.7 our calibrations with those of Alonso et al. (1996), Blackwell & Lynas-Gray (1998), and Masana et al. (2006). Only the Alonso et al. (1996) regression is very slightly [Fe/H]-sensitive and we set [Fe/H] to the solar value for comparison. The agreement of the three calibrations is very good for the full Teff range, and we note that the relation given by McWilliam (1990) is also compatible with the previously mentioned calibrations in this Teff range.

thumbnail Fig. A.7

Same as Fig. A.4 for the (V − K)Johnson index. The black full, black dotted, red, and blue lines correspond to the calibrations of this work, Blackwell & Lynas-Gray (1998), Masana et al. (2006), and Alonso et al. (1996), respectively.

Open with DEXTER

thumbnail Fig. A.8

Same as Fig. A.4 for the β index. The black full, black dotted, and red lines stand for the calibrations of this work, Saxner & Hammarbäck (1985), and Alonso et al. (1996) respectively.

Open with DEXTER

For the Strömgren β index, we compare our regression with those of Saxner & Hammarbäck (1985) and Alonso et al. (1996) in Fig. A.8. Not surprisingly, our results are in line with Saxner & Hammarbäck (1985). The calibration of Alonso et al. (1996) is only weakly [Fe/H]-dependent, and we set [Fe/H] = +0.00 for the comparison: this calibration also shows good agreement in our Teff range. The β color index, though more difficult to obtain for faint stars due to the narrowness of the filters, has good Teff sensitivity in this range, is free of reddening, and could be explored more for solar-type stars.

Taking into account that IRFM Teff are accurate to no more than a few per cent (Ramírez & Meléndez 2005a; Casagrande et al. 2006), the agreement of our calibrations with many widely adopted recent resources ranges from fair to very good, within a 2σ assessment but for a few cases. In the range of Teff we are exploring, they provide good internal consistency and collectively enable the derivation of photometric Teff for solar-type stars, within a reasonable range around the solar atmospheric parameters, with internal errors less than 1%. The external errors of the IRFM Teff scale are, of course, greater by at least a factor of two.


1

Image Reduction and Analysis Facility (IRAF) is distributed by the National Optical Astronomical Observatories (NOAO), which is operated by the Association of Universities for Research in Astronomy (AURA), Inc., under contract to the National Science Foundation (NSF).

Acknowledgments

This paper is dedicated, in memoriam, to Giusa Cayrel de Strobel, for her dedicated pioneering in the subject of solar analogs and twins. G.F.P.M. acknowledges financial support by CNPq grant N°. 476909/2006-6, FAPERJ grant N°. APQ1/26/170.687/2004, and a CAPES post-doctoral fellowship N°. BEX 4261/07-0. R.S. acknowledges a scholarship from CNPq/PIBIC. L.S. thanks CNPq for the grant 30137/86-7. We thank the staff of the OPD/LNA for considerable support in the observing runs needed to complete this project. Use was made of the Simbad database, operated at the CDS, Strasbourg, France, and of NASAs Astrophysics Data System Bibliographic Services. We thank Giusa Cayrel de Strobel, in memoriam, Edward Guinan, José Dias do Nascimento Jr., José Renan de Medeiros, and Jeffrey Hall for interesting discussions. We also thank the referee, Dr. Martin Asplund, for suggestions and criticism that considerably improved the paper.

References

Online material

Table 1

Photometric and spectroscopic data for the program stars with VT ≤ 8.0.

Table 2

Same as Table 1 for the 70 program stars with 8.0 < VT ≤ 9.0 and available uvby photometry.

Table 3

Same as Table 1 for the Galilean satellites and Vesta (taken as proxies of the solar flux spectrum) plus stars selected in the Bright Star Catalogue (Hoffleit & Jaschek 1991; Hoffleit 1991) to have both their (B − V) and (U − B) colors similar to the solar ones.

Table 4

Fe i and Fe ii transitions used in the spectroscopic analysis.

All Tables

Table 5

Atmospheric parameters of the solar analogs with VTycho ≤ 8.0.

Table 6

Same as Table 5 for the 8.0 < VT ≤ 9.0 stars.

Table 7

Same as Table 5 for the solar proxies and stars with UBV colors similar to the solar ones.

Table 8

Parameters derived from the HR diagram analysis for the VTycho ≤ 8.0 stars.

Table 9

Same as Table 8 for the 8.0 VTycho 9.0 stars.

Table 10

Same as Table 8 for the stars with UBV colors similar to the solar ones.

Table 11

Qualitative assessment of the stellar spectral feature deviations from the solar spectrum, expressed as measured in the ratio spectra between the stars and Ganymede.

Table 12

New solar twin candidates identified in this work.

Table 1

Photometric and spectroscopic data for the program stars with VT ≤ 8.0.

Table 2

Same as Table 1 for the 70 program stars with 8.0 < VT ≤ 9.0 and available uvby photometry.

Table 3

Same as Table 1 for the Galilean satellites and Vesta (taken as proxies of the solar flux spectrum) plus stars selected in the Bright Star Catalogue (Hoffleit & Jaschek 1991; Hoffleit 1991) to have both their (B − V) and (U − B) colors similar to the solar ones.

Table 4

Fe i and Fe ii transitions used in the spectroscopic analysis.

Table A.1

Objects selected for the Teff versus color calibrations.

Table A.2

References for the uvbyβ photometry and [Fe/H] of Table 13.

All Figures

thumbnail Fig. 1

Uncertainties in the absolute magnitudes for stars of the final sample of 158 non-binary stars selected from the Hipparcos catalog. Outliers with large errors in absolute magnitude are identified by HD numbers.

Open with DEXTER
In the text
thumbnail Fig. 2

Left: color similarity index SC plotted versus the photometric Teff for the 52 stars with VTycho ≤ 8.0. The box contains, in the SC axis, stars with SC ≤ 1.00 within 2σ of the solar one (defined as zero) in the ordinate. The width of the box is set by the σ(Teffphot) = 65 K uncertainty in the photometric Teff. The dotted horizontal line defines the 3σ limit in SC. Stars are identified by HD numbers. Right: the same as the left panel, but for the 8.0 < VTycho ≤ 9.0 stars, only those observed spectroscopically. Below: same as above for stars selected by their UBV similarity to the Sun, presence in the lists of Hardorp (1982), or both.

Open with DEXTER
In the text
thumbnail Fig. 3

Photometric Teff and [Fe/H], separated by the color similarity index SC. The gray box limits the 1σ errors in the photometric Teff and [Fe/H], and is centered on the solar parameters (the Sun is identified by its usual symbol). Black circles are those stars within a 2σ color similarity with the Sun.

Open with DEXTER
In the text
thumbnail Fig. 4

Left: sample of normalized OPD spectra in the λ6145 spectral range. The nominal resolution is R = 20 000, and the spectra S/N, from top to bottom, are 340 (HD 146233), 120 (HD 19518) and 100 (HD 191487). Some of the Fe i and Fe ii lines used in this spectral range for deriving atmospheric parameters are marked by the vertical dashes. The spectra are arbitrarily displaced on the vertical axis. Right: sample of normalized OPD spectra in the λ6563 spectral range. The nominal resolution is R = 20 000, and the spectra S/N, from top to bottom, are 230 (HD 146233), 200 (HD 159222), and 130 (HD 191487). The spectra are arbitrarily displaced on the vertical axis.

Open with DEXTER
In the text
thumbnail Fig. 5

Left: sample of normalized ESO/UV spectra in the λλ42204390 range, around the λ4310 CH bandhead. The nominal resolution is R = 800, and the spectra are arbitrarily displaced on the vertical axis. Right: sample ratioed ESO/UV spectra, normalized to the solar (Ganymede) spectra, in the λλ36004500 range. The spectra are arbitrarily displaced in the vertical axis, and the horizontal red lines mark the unitary flux ratios for each object. The dotted lines are, from left to right, respectively, the approximate central wavelength of the λ3870 CN bandhead, the central wavelengths of the K and H Ca ii lines, and the approximate central wavelength of the λ4310 CH bandhead. The 1σ flux ratio error bar is shown in red.

Open with DEXTER
In the text
thumbnail Fig. 6

Photometric and HαTeff compared. The thin black line is the identity relation, the red line is a linear least-squares fit, the two dotted lines bound the identity relation by 50 K, and the two thick black lines are the 95% confidence limits of the fit. The only star to deviate significantly from the identity is HD 71334.

Open with DEXTER
In the text
thumbnail Fig. 7

Left: color similarity index SC plotted versus the final photometric Teff (obtained from the spectroscopic [Fe/H]) and the spectroscopic [Fe/H] for all spectroscopically analyzed stars. The vertical colored bar is coded by the SC values: note that the scale of the coding is different between the two plots. Right: same as the left panel, but for the stars with SC ≤ 3.0. It is clear that a combination of hot/metal rich and cool/metal poor parameters defines an area of good photometric similarity to the Sun, and also that the stars with the highest color similarity to the Sun have atmospheric parameters more tightly clustered around the solar values.

Open with DEXTER
In the text
thumbnail Fig. A.1

Our calibration for the (B − V)Johnson index compared to literature results. The adopted 1σTeff error (see text) is shown as the thick red vertical bar. Full squares are stars with [Fe/H]>+0.10 dex, open squares with [Fe/H]<+0.10 dex. The black full and dotted lines refer, respectively, to our calibrations for [Fe/H] = +0.00 and [Fe/H] = 0.50; the red and blue lines follow the same [Fe/H] convention for the relations of Alonso et al. (1996) and Casagrande et al. (2006), respectively.

Open with DEXTER
In the text
thumbnail Fig. A.2

Same as Fig. A.1 for the (B − V)Tycho index: the red and blue lines are the relations of Ramírez & Meléndez (2005b) and Casagrande et al. (2010), respectively.

Open with DEXTER
In the text
thumbnail Fig. A.3

Same as Fig. A.1 for the (b − y) index: the red and blue lines are the relations of Alonso et al. (1996) and Blackwell & Lynas-Gray (1998), respectively.

Open with DEXTER
In the text
thumbnail Fig. A.4

Same as Fig. A.1 for the (R − I)Johnson index. The cross stands for HR 417, without known [Fe/H]. The black full line is our calibration, the blue line that of Casagrande et al. (2006), and the red full and dotted lines follow the same [Fe/H] convention as Fig. A.1 for the calibration of Alonso et al. (1996).

Open with DEXTER
In the text
thumbnail Fig. A.5

Same as Fig. A.4 for the (V − R)Johnson index: the red full and dotted lines follow the same [Fe/H] convention as Fig. A.1 for the calibration of Alonso et al. (1996).

Open with DEXTER
In the text
thumbnail Fig. A.6

Same as Fig. A.4 for the (V − I)Johnson index. The red line is the calibration of Alonso et al. (1996).

Open with DEXTER
In the text
thumbnail Fig. A.7

Same as Fig. A.4 for the (V − K)Johnson index. The black full, black dotted, red, and blue lines correspond to the calibrations of this work, Blackwell & Lynas-Gray (1998), Masana et al. (2006), and Alonso et al. (1996), respectively.

Open with DEXTER
In the text
thumbnail Fig. A.8

Same as Fig. A.4 for the β index. The black full, black dotted, and red lines stand for the calibrations of this work, Saxner & Hammarbäck (1985), and Alonso et al. (1996) respectively.

Open with DEXTER
In the text

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
