Fig. 6

thumbnail

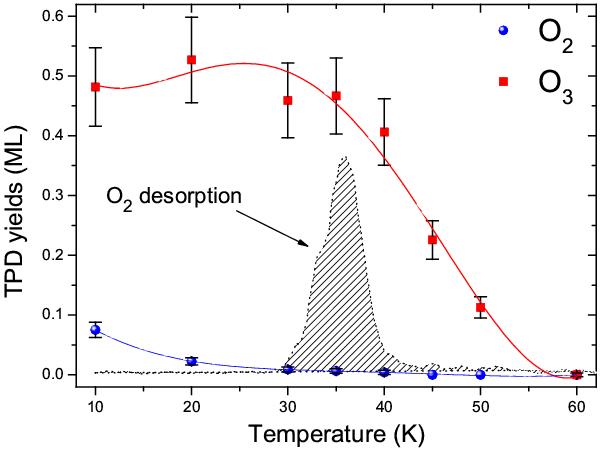

O2 and O3 yields as a function of surface temperature during deposition of 0.5 ML of 13CO + O. The circles and the squares represent the integrated area under the TPD curves of O2 and O3, respectively, after deposition of 0.5 ML of 13CO + O on ASW ice held a different temperatures (10 K, 20 K, 30 K, 35 K, 40 K, 45 K, 50 K, 60 K). The solid line is a fit of the area behaviour. The added O2 TPD (obtained at Tsurface = 20 K) helps interpret the O3 yield behaviour with temperature.
