Fig. C.2

thumbnail

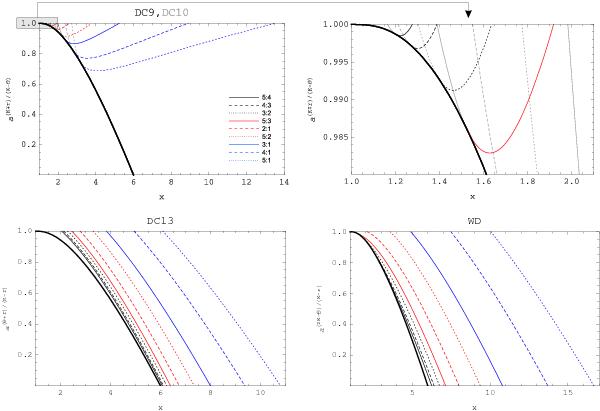

Spin resonance functions aνU/νL(x,p) for the double combinational resonances of the types DC9, DC10, DC13 and the warped disc oscillation model (WD) for the frequency ratios n:m = 5:4 (black solid line), 4:3 (black dashed line), 3:2 (black dotted line), 5:3 (red solid line), 2:1 (red dashed line), 5:2 (red dotted line), 3:1 (blue solid line), 4:1 (blue dashed line), 5:1 (blue dotted line). Black thick line represents ams(x), which implicitly determines the radius of the marginally stable orbit xms. The grey lines are related to the resonance DC10 – for details see Fig. C.1.
