Fig. B.7

thumbnail

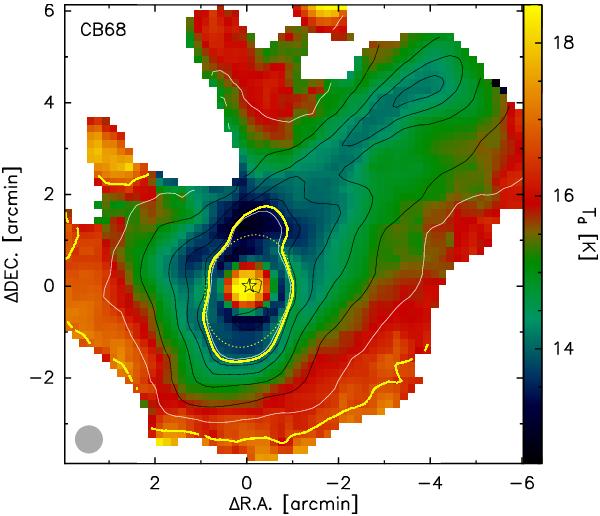

Dust temperature map of CB 68 (color scale), overlaid with contours of the hydrogen column density (white: 1021 and 1022 cm-2, black: 0.5 – masked by yellow Nout contour – 2, 4, 6, 8, and 20 × 1021 cm-2). Yellow contours mark Nout (Eq. (3)) and N1′ (Eq. (10)). The dotted yellow ellipse marks the N1′ approximation described in Sect. 5.3. The asterisk marks the position of the protostar and the reference position listed in Table 5.
