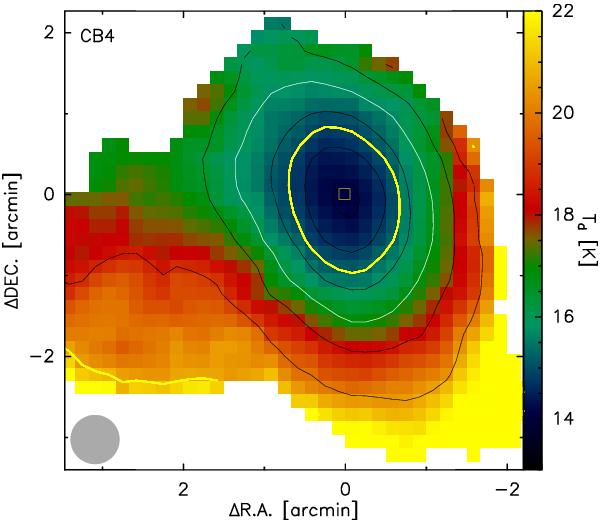

Fig. B.1
Dust temperature map of CB 4 (color scale), overlaid with contours of the hydrogen column density (white: 1021 cm-2, black: 0.2, 0.5, 2, and 4 × 1021 cm-2). Yellow contours mark Nout (Eq. (3)) and N1′ (Eq. (10)). The yellow square marks the column density peak and the reference position listed in Table 5.
