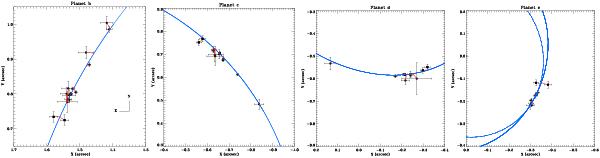

Relative astrometry of HR 8799 planets available in literature. Blue lines show the adopted orbital solution (Case B in Table 7, non coplanar circular orbits). Red lines connect the predicted and observed position for all the data points. For HR 8799e, the dotted line shows the orbital solution for 5:2 mean motion resonance with planet d (Case C in Table 7).
