Fig. 12

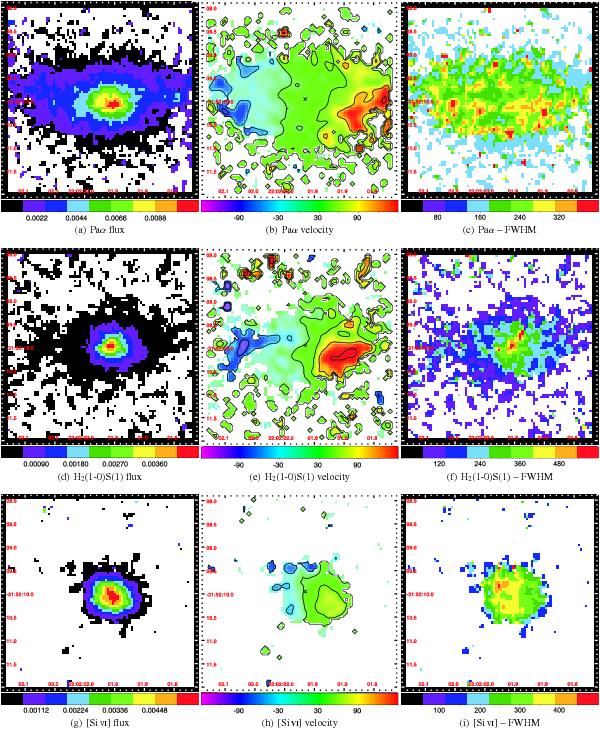

From top to bottom Paα, H2 and Si vi are displayed. From left to right the flux, the line of sight velocity and the line of sight velocity dispersion are shown. The flux is given in units of 10-16   Wm-2   μm-1 and the velocities in km s-1. Note that the FWHM values were not corrected for instrumental broadening (see Table 1). The contours in the velocity maps represent –150, –100, –50, 0, 50, 100, 150 km s-1.
