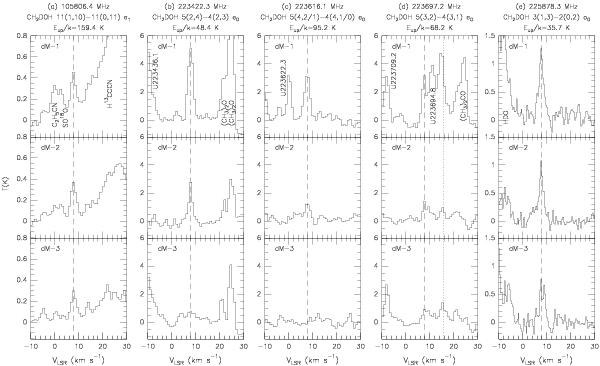

Fig. B.2

CH2DOH spectra toward dM-1, dM-2, and dM-3 for a synthesized beam of . The dashed lines indicate a VLSR of 8 km s-1. The unidentified molecular lines are denoted with their frequencies. a) For dM-1, the CH2DOH 111,10 − 110,11 e1 line is blended with a broad H13CCCN J = 12–11 line (ΔV ≈ 10 km s-1) at 105 799.1 MHz. The rms noise (1σ) is 0.02 K. b–d) The dotted line indicates the CH2DOH 53,3 − 43,2e0 line at 223 691.5 MHz, which is blended with the (CH3)2CO 177,11 − 166,10 EA/AE lines at 223 692.1 MHz. The rms noise (1σ) is 0.35 K. e) The strong line to the left is the HDO 31,2 − 22,1 line at 225 896.7 MHz. Two velocity components at 7.8 and 9.0 km s-1 are seen toward dM-3. The rms noise (1σ) is 0.12 K.
