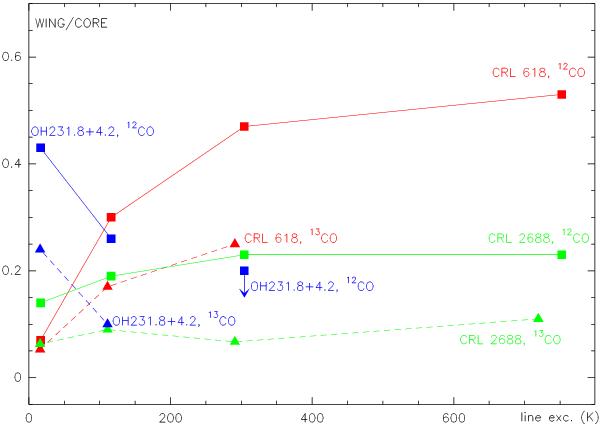

Fig. 15

Line-wing over line-core main-beam temperature ratio of the observed CO lines in the well studied sources CRL 618, CRL 2688, and OH 231.8+4.2 (J = 2–1 data are taken from previous works); see Table 2. Note the different behavior of the relative line-wing intensity between CRL 618, which shows particularly hot high-velocity outflows, and OH 231.8+4.2, in which the flows remain quite cold. CRL 2688 is an intermediate case. Squares (continuous line) represent 12CO data and triangles (dashed lines) show 13CO data. Each rotational transition is represented by the energy (in K) of its upper level.
