1. Introduction

There is a lot of observational evidence of neutron stars with strong magnetic fields. Observed spin periods and their time derivatives in conjunction with the assumption of a magnetic dipole radiation give us a magnetic field strength as B ∝ (PṖ)^1/2 where P and Ṗ are the spin period and its derivative. For radio pulsars, of which more than 1800 are known today (Manchester et al. 2005), the inferred value of the magnetic field strength is in the range 10¹¹−10¹⁴ G. For a smaller population of older millisecond pulsars, the typical magnetic field strength is B ~ 10⁸−10⁹ G. For anomalous X-ray pulsars (AXPs) and soft gamma repeaters (SGRs), super strong magnetic fields of 10¹⁴−10¹⁵ G are again inferred from the measured values of P and Ṗ (Woods & Thompson 2004). Various observed properties of AXPs and SGRs, such as the giant flares from the three SGRs and bursts are often explained by a super strong magnetic field (Thompson & Duncan 1995, 1996, 2001) rather than by rotation, because their spin down luminosities are much lower than the observed luminosity. In addition, temporary detections of spectral lines during SGR/AXP bursts have been reported in several systems (Gavriil et al. 2002; Ibrahim et al. 2003; Rea et al. 2003). If we assume that they are associated with proton cyclotron lines, the magnetic field strength is estimated to give B ~ 10¹⁵ G.

For about a dozen accreting X-ray pulsars in binary systems, electron cyclotron line features have been detected, suggesting that B ~ 10¹²−10¹³ G according to the formula for the electron cyclotron energy, E_ce = ħB/(m_ec) = 11.58(B/10¹²   G) keV  (Orlandini & Fiume 2001). For many other X-ray pulsars with no detectable electron cyclotron line features, typical magnetic fields are B ~ 10¹² G if one assumes that spin up due to accretion of matter is balanced by magnetic braking (Bildsten et al. 1997).

From a theoretical point of view, these strongly magnetized objects deserve detailed study, because their magnetic fields sometimes exceed the quantum critical field strength, G, at which gyration radius of the electron pc/(eB) is shorter than the de Broglie wavelength ħ/p. Above this limit, magnetic fields affect the properties of atoms, molecules, condensed matters (Lai 2001), propagation of photons, radiative processes, equation of states, and thermal conductivity in crusts (see Harding & Lai 2006 and references therein). The origin of such extremely large magnetic fields has been a major concern since their discovery. Specifically, there are two hypotheses for its origin. In one scenario, the magnetic fields are assumed to be generated in a rapidly rotating protoneutron star formed after stellar core collapse of a massive star (Thompson & Duncan 1993), and in the other it is assumed to be descended from the main sequence stars; i.e., the strong magnetic field is assumed to be a fossil of a strongly magnetized main sequence star (Wickramasinghe & Ferrario 2005). For exploring the magnetar formation, there are plenty of magnetohydrodynamic simulations for supernova core collapse both in Newtonian gravity (Yamada & Sawai 2004; Kotake et al. 2004; Obergaulinger et al. 2006; Scheidegger et al. 2008; Takiwaki et al. 2009; Burrows et al. 2007) and in general relativity (Shibata et al. 2006; Cerda-Duran et al. 2007). For these works, the simulations were performed in axisymmetric spacetime. In most of these simulations, it was found that toroidal magnetic fields are dominantly enhanced in the protoneutron stars after the core bounce by the magnetic winding mechanism, and eventually, the protoneutron star settles to a quasi-equilibrium state. However, it has been well known that purely toroidal fields in equilibria are often unstable because of the interchange, Tayler, and Parker instabilities (Acheson 1978; Goossens 1980; Parker 1955, 1966; Tayler 1973). The stability analyses have suggested that nonaxisymmetric modes would play an essential role for these instabilities and that rapid rotation could suppress these instabilities (Acheson 1978)¹.

Motivated by this situation, we studied the axisymmetric instability of neutron stars with toroidal magnetic fields in the previous work (Kiuchi et al. 2008). In that work, magnetized neutron stars in equilibria are prepared as initial conditions by varying its profile and strength and by changing the angular velocity (Kiuchi & Yoshida 2008). Performing the general relativistic magnetohydrodynamic (GRMHD) simulations, we found that slowly rotating neutron stars with the toroidal fields are unstable if they posses magnetic fields whose profile is proportional to the power of cylindrical radius ϖ as B_(ϕ) ∝ ϖ^2k − 1 with k ≥ 2. The growth timescale is similar to the Alfvén timescale, and its instability type is the interchange instability in the absence of stellar rotation. Only for the case k = 1, slowly rotating neutron stars are stable against the axisymmetric perturbation, so we concluded that the configuration with k = 1 will be the attractor for the unstable neutron stars. We also found that rapid rotation, with which the rotational kinetic energy is much greater than the magnetic energy, suppresses the onset of the interchange instability and stabilizes the neutron stars. These results qualitatively and semi-quantitatively agree with the local linear analysis.

In the magnetorotational explosion scenarios, the magnetic energy is composed primarily of the toroidal field and is at most as high as the rotational kinetic energy. This indicates that the axisymmetric interchange instability would not play an important role in the protoneutron star. However, it is still possible that the neutron star becomes unstable against the Parker and Tayler instabilities, which grow in a nonaxisymmetric way. Stability of magnetars is also an important question along this line (Braithwaite & Nordlund 2005; Braithwaite & Spruit 2004). The rotational effect is negligible for the magnetar. Thus, the toroidal field profile should be similar to that of k = 1 to avoid any onset of the axisymmetric interchange instability. However, such a configuration may still be unstable if the Parker and/or Tayler instabilities are taken into account.

This situation motivated us to extend our previous work (Kiuchi et al. 2008) by exploring the nonaxisymmetric instabilities of neutron stars with toroidal magnetic fields. Following our previous work, we prepared equilibrium neutron stars with purely toroidal magnetic fields as initial conditions. This time, we performed three-dimensional GRMHD simulations by varying the field strength and/or rotation velocity. As mentioned above, the three-dimensional simulation is requested for exploring the Parker and Tayler instabilities.

This paper is organized as follows. In Sect. 2, we briefly review the formulation and numerical methods employed in our numerical-relativity simulation. The set up of numerical simulation and initial models for our GRMHD simulations are described in Sect. 3. In Sect. 4, we present the results of a local linear perturbation analysis as a forecast of the numerical-simulation results. Section 5 is devoted to presenting these results. A summary and discussion are given in Sect. 6.

Throughout this paper, we adopt the geometrical units in which c = G = 1 with c the speed of light and G the gravitational constant. Cartesian coordinates are denoted by x^k = (x,y,z). The coordinates are oriented so that the rotation axis is along the z-direction. We define the coordinate radius , cylindrical radius , and azimuthal angle ϕ = tan^-1(y/x). Coordinate time is denoted by t. Greek indices μ,ν,... denote spacetime components, and small latin indices i,j,... denote spatial components.

2. Formulation and method

The stability of magnetized neutron stars were studied by three-dimensional GRMHD simulation assuming that the ideal MHD condition holds. In this paper we focus on the Parker and/or Tayler instabilities. We upgraded our axisymmetric GRMHD numerical code in Shibata & Sekiguchi (2005) and Kiuchi et al. (2008) to one for three dimensions.

The formulation and the numerical scheme for solving Einstein’s equation are essentially the same as in Shibata & Nakamura (1995). For solving Einstein’s evolution equation, we used the original version of the Baumgarte-Shapiro-Shibata-Nakamura formulation (Shibata & Nakamura 1995; Baumgarte & Shapiro 1999). We evolved the inverse square of the conformal factor W ≡ exp(−2φ) with φ = ln(γ)/12, the trace part of the extrinsic curvature, K, the conformal three-metric, , the tracefree extrinsic curvature, , and a three-auxiliary variable, . Here, γ_ij is the three-metric, K_ij the extrinsic curvature, γ ≡ det(γ_ij), and K ≡ K_ijγ^ij. We evolve W, not the conformal factor as in Kiuchi et al. (2009), because our code is designed to simulate black hole spacetimes with the moving puncture method (Baker et al. 2006; Campanelli et al. 2006; Brugmann et al. 2008). For the conditions of the lapse, α, and the shift vector, βⁱ, we adopt a dynamical gauge condition in the following forms (Shibata 2003), where Δt denotes the time step in the numerical simulations, and the second term on the righthand side of (1) is introduced for stabilizing the numerical computations. The finite-differencing schemes for solving Einstein’s equation is essentially the same as those in Kiuchi et al. (2009). We use the fourth-order finite-differencing scheme in the spatial direction and a fourth-order Runge-Kutta scheme in the time integration, where the advection terms such as βⁱ∂_iW are evaluated by a fourth-order uncentered difference scheme, as proposed, e.g., in Brugmann et al. (2008).

A conservative shock-capturing scheme was employed to integrate the GRMHD equations. Specifically we used a high-resolution central scheme (Kurganov & Tadmor 2000; Lucas-Serrano et al. 2004) with the third-order piece-wise parabolic interpolation and with a steep min-mod limiter in which the limiter parameter b is set to be 2.5 (see Appendix A of Shibata 2003).

Magnetized neutron stars in equilibrium, employed as the initial condition, were computed to give the polytropic equation of state (Kiuchi & Yoshida 2008), (3)where P, ρ, κ, and Γ are the pressure, rest-mass density, polytropic constant, and adiabatic constant, respectively. In this work, we choose Γ = 2. Because κ is arbitrarily chosen, we adopt the units of κ = 1 in the following (i.e., the polytropic units of c = G = κ = 1 are employed). In the numerical simulation, we adopt the Γ-law equation of state as (4)where ε is the specific internal thermal energy.

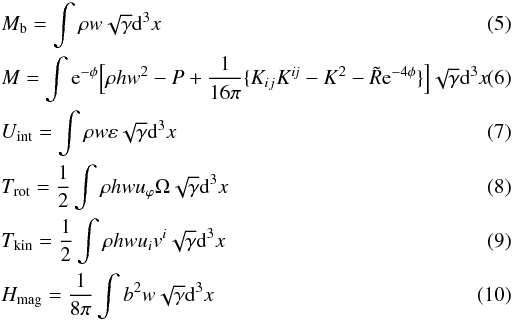

We monitored the total baryon rest mass M_b, Arnowitt-Deser-Misner (ADM) mass M, internal energy U_int, rotational kinetic energy T_rot, total kinetic energy T_kin, and magnetic energy H_mag, defined by where is the Ricci scalar with respect to , u^μ the four velocity of the fluid, h the specific enthalpy defined by 1 + ε + P/ρ, w ≡ αu^t, vⁱ = uⁱ/u^t, Ω = v^ϕ, and b² = b^μb_μ. Here, b^μ is the magnetic field observed in the frame co-moving with the fluid element and M₀ denotes the initial value of the ADM mass. Once each energy component was obtained, we defined the gravitational potential energy by (11)Following Kiuchi et al. (2008), we define an averaged Alfvén timescale as (12)where we use the relation h = 1 + Γε, which holds in the Γ-law equation of state. The Alfvén velocity in relativity is given by . Then, we define the averaged Alfvén timescale as (13)where R is the equatorial stellar radius. Because the magnetic field instability grows on the order of the Alfvén timescale (cf. Sect. 4), is useful to judge whether or not the instability found in numerical simulation is associated with a magnetic field effect.

3. Model and numerical setup

3.1. Initial condition

Neutron stars with toroidal magnetic fields in equilibrium, when employed as initial conditions, are computed by the code described in Kiuchi & Yoshida (2008). Several key quantities characterizing these magnetized neutron stars are listed in Table 1. The instability associated with the presence of toroidal magnetic fields depends on the profile of the magnetic field as shown by Acheson (1978), Goossens (1980), Spruit (1999), and Tayler (1973). We assume the toroidal magnetic field profile confined inside the neutron star is given by (14)where k and B₀ are constants that determine the field profile and strength, respectively. The regularity condition of magnetic fields near the axis of ϖ = 0 requires k ≥ 1. Because of γ_ϕϕ ∝ ϖ² for ϖ → 0, the toroidal magnetic field is proportional to ϖ^2k − 1 near the axis. Previous works predict that the profile with k ≥ 2 is unstable against axisymmetric perturbations (Acheson 1978; Goossens 1980; Spruit 1999; Tayler 1973), and we confirmed this prediction in the previous paper (Kiuchi et al. 2008). On the other hand, the profile of k = 1 is stable against axisymmetric perturbations but may be unstable against nonaxisymmetric ones (see also Lander et al. 2010; Lander & Jones 2011), so in this paper, we focus on the profile of k = 1.

Magnetic field strength, B₀, is chosen so as to satisfy 8 × 10^-3 ≤ H/|W| ≤ 5 × 10^-2. These values imply a field strength of 10¹⁶−10¹⁷   G for a typical neutron star of mass 1.4   M_⊙, radius 10   km, and |W| ~ 6 × 10⁵³   erg. These magnetic field strengths are extremely large even for magnetar models and might be less realistic. We give such strong magnetic fields here simply to save the computational costs. The growth timescales of the instabilities caused by the toroidal magnetic field are close to an Alfvén time scale, which is still much longer than the dynamical timescale of the system in the present set up. Thus, a scaling relation should hold for a weaker magnetic field strength. We may apply the scaling relation to derive a generic physical essence from the results obtained in the present set up. Namely, if the magnetic field strength is halved, the growth timescale of the instabilities becomes approximately twice longer, although the qualitative properties of the evolution of the unstable neutron star are essentially the same.

The initial conditions for the nonrotating model is specified if the central density ρ_c (in the polytropic units) is determined. We choose it to be ρ_c ≈ 0.22. With this choice, the neutron star has a realistic compactness; e.g., if we assume M ≈ 1.35   M_⊙, circumferential radius is R ≈ 11 km (cf. Table 1). The maximum rest mass and gravitational mass of the spherical neutron star for Γ = 2 are 0.1799 and 0.1637, respectively, and the corresponding central density is  ≈ 0.318 in our unit.

Simulations were also performed for rotating neutron star models. In this paper, we focus only on rigidly rotating neutron stars with a moderate compactness and ρ_c is again chosen to be 0.22. For the neutron stars with the Γ = 2 polytrope, the maximum values of T_rot/|W| is  ~0.09 for M₀/R_cir ~ 0.1 (Cook et al. 1994). Local linear stability analysis predicts that rapid rotations will suppress the growth of some of the instabilities associated with the presence of toroidal magnetic fields (Acheson 1978, see also Sect. 4.2). To study whether this is indeed the case, we prepared rapidly rotating models with T_rot/|W| ≈ 0.08, and varied the magnetic field strength.

3.2. Grid settings

The simulations were performed on the cell-centered Cartesian, (x,y,z), grid. Equatorial plane symmetry with respect to z = 0 plane was assumed. The computational domain of  −L ≤ x ≤ L,  −L ≤ y ≤ L, and 0 ≤ z ≤ L was covered by the grid size (2N,2N,N) for (x,y,z), where L and N are constants. Following Kiuchi et al. (2008), we adopted a nonuniform grid as follows. An inner domain is covered with an uniform grid of spacing Δx and with the grid size, (2N₀,2N₀,N₀). Outside this inner domain, the grid spacing was increased according to the relation, ξtanh [(i − N₀)/Δi] Δx, where i denotes the ith grid point in each positive direction, and N₀, Δi, and ξ are constants. Then, the location of ith grid, x^k(i) (i ≥ 0), for each direction is (15)and x^k(−i − 1) = −x^k(i), where i = 0,1,...N − 1 for x^k = x,y, and z. The chosen parameters of the grid structure for each simulation are listed in Table 2. To check the validity of our numerical results, the simulations for models N22H5 and R22H2T8 were performed with three different grid resolutions. With the highest (lowest) resolution, the coordinate equatorial radii of neutron stars, L_NS, are covered by 130 (80) grid points while the outer boundary location was chosen to be  ≃ 8L_NS in all the simulations. We confirmed that the modest resolution in which L_NS is covered by 100 grid points is high enough to draw a resolution-invariant conclusion.

4. Local linear perturbation analysis

Before showing the results of nonlinear numerical simulations, it is useful to recall the results of linear-stability analysis. By using the local linear perturbation analysis (Acheson 1978), the dispersion relations for the nonrotating and rotating models are derived, and the (local) stability is determined. In the following, the method of the analysis in the Newtonian framework is briefly reviewed.

In the local analysis, a perturbation quantity δQ is assumed to be given by (16)where Q₀ is a constant, σ the oscillation frequency, and (l,m,n) the wave number vector. To obtain the local dispersion relations, we assume that l ≫ 1, n ≫ 1, and m = O(1), which implies that the perturbations we consider have very short wavelengths on the meridional plane (for details, cf. Acheson 1978).

Fig. 1 The growth rate of the instability of a neutron star with toroidal magnetic fields normalized by the maximum growth rate |σmax| (left) and corresponding m mode (right) on the meridian plane for nonrotating Newtonian polytrope with ρ0 = 0.16 and B0 = 0.2. The white colored region and the dotted curve denote the stable region and critical radius, respectively, and rs denotes the stellar radius.

4.1. Nonrotating case

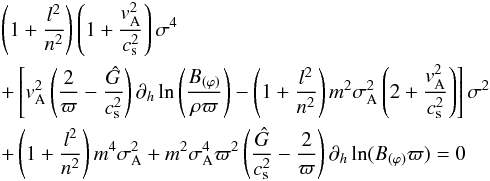

The dispersion relation for nonrotating models is given, irrespective of the density profile, by (17)where , σ_A = v_A/ϖ, Ĝ = g_ϖ − (l/n)g_z with g_ϖ and g_z the gravitational acceleration, ∂_h = ∂_ϖ − (l/n)∂_z, and c_s is the sound speed. For the axisymmetric perturbation, i.e., m = 0 perturbations, the dispersion relation is reduced to a quadratic form of σ as (18)For the density profile that is necessary for solving Eq. (17) for a specific model, we prepare the Newtonian spherical polytrope with Γ = 2 as (19)where ρ₀ and r_s are the central density and stellar radius. The spherical density profile is justified by the assumption of a weak magnetic field; i.e., the magnetic field is too weak to deform the star. In the Newtonian limit, Eq. (14) becomes (20)Because B_(ϕ)/ρϖ = const. in our models (see Eqs. (19) and (20)), we have σ = 0 for m = 0; i.e., the magnetic field is marginally stable against the axisymmetric perturbation. Physically, the magnetic field instability caused by the axisymmetric perturbation is classified as the interchange instability. Our models are marginally stable against such an instability and we indeed found in the previous study that they were stable (Kiuchi et al. 2008). However, the marginally stable profile is not always kept in a stationary state in the presence of a perturbation. We return to this point in Sect. 5.2.

For nonaxisymmetric perturbations, we forecast that the Parker (1955; 1966) and the Tayler (1973) instabilities set in. Following Acheson (1978), we define the critical radius as (21)Outside this critical radius, the magnetic buoyant force exceeds the magnetic hoop stress, whereas inside it, the magnetic stress is dominant. The Tayler instability could set in near the axis of ϖ = 0 (Spruit 1999), which is inside the critical radius. On the other hand, the Parker instability could play a role in places where the magnetic buoyancy force surpasses the magnetic tension. Thus, we classify the instability that emerges inside and outside the critical radius as the Tayler and Parker instabilities, respectively. Analyzing the dispersion relation near the axis of ϖ = 0, Acheson (1978) and Spruit (1999) concluded that the dominant modes of the Tayler instability are m = 1 and l/n ≈ 0 modes, which are associated with the horizontal motion near the axis of ϖ = 0. However, to clarify the most relevant unstable modes, we have to determine the growth timescales of the instability for all the places inside the star. To do this, we calculate the maximum growth rates of the instability solving the dispersion relation (17) with varying l/n and m.

Figure 1 displays the contours of the growth rate for the model with ρ₀ = 0.16 and B₀ = 0.2, which give H_mag/|W| = 2.5% and M_b = 0.2 in the polytropic units. These parameters are chosen so as to mimic the initial models shown in Table 1. The most unstable mode at each point is the l/n = 0 mode. This figure shows that the fastest growing mode of the instability is located near the stellar surface and is determined by the Parker instability, because the location is outside the critical radius. The right panel of Fig. 1 shows that instead of the m = 1 mode, a high-order m mode is relevant for this fastest growing mode. The local linear perturbation analysis predicts that the Parker instability primarily emerges near the stellar surface in our nonrotating models.

Fig. 2 The evolution of a) central rest-mass density ρc and b) minimum value of lapse function αmin for nonrotating models N22H1 and N22H5.

Fig. 3 The evolution of rest-mass density (left) and magnetic energy density (right) on the equator for N22H5. Both of them are plotted on the logarithmic scale. The coordinate time at each slice is shown in each panel.

Fig. 4 The evolution of the rest-mass density (bottom) and magnetic energy density (top) on a meridian (x-z) plane for N22H5 on the logarithmic scale. The arrows indicate the velocity fields.

4.2. Rotating case

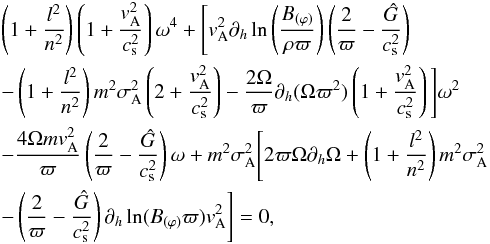

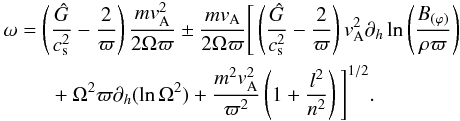

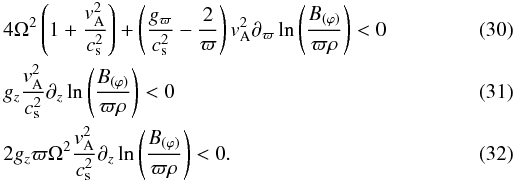

For the rotating models, the dispersion relation is written as (22)where ω = σ − mΩ with Ω the angular velocity. Following Acheson (1978), we focus on a low-frequency and nonaxisymmetric mode, for which the growth timescale is much longer than the Alfvén timescale as (23)We also adopt a weak magnetic field approximation in which magnetic energy is assumed to be everywhere much less than the rotational kinetic energy as (24)With these approximations, the bi-quadratic Eq. (22) is reduced to a quadratic equation and its solution is (25)This dispersion relation shows that the instability sets in if either of the following criteria is satisfied: The inequalities (26) and (27) do not hold for rigidly rotating stars with the magnetic field profile (20). However, the angular velocity profile of any star never remains constant in a strict sense, because the stars in nature usually oscillate around their equilibria, which makes a gradient in the angular velocity profile. In the presence of negative angular velocity gradient, the instability criterion (26) may be satisfied because the first term on the lefthand side of Eq. (26) can be the most dominant one due to the weakness of the magnetic field as imposed in Eq. (24). For a region in which the Alfvén velocity is much smaller than the rotational velocity, a small perturbation in the angular velocity is sufficient for satisfying the inequality (26). We discuss this issue in Sect. 5.2 in more detail.

5. Result

5.1. Nonrotating case

We studied the stability for two nonrotating models listed in Table 1. The simulations were performed for a sufficiently long time, more than ten times the averaged Alfvén timescale or several thousands of units of M₀ (cf. Table 1). This is necessary to clarify whether any MHD instability, which grows approximately on an Alfvén timescale, sets in and to determine the final fate after the onset of the instabilities. Figure 2 plots the evolution of the central rest-mass density and the minimum value of the lapse function, which characterize the compactness of the neutron star. For the nonrotating model N22H5, it is observed that the central density (the minimum value of the lapse function) increases (decreases) for t ≲ 200   M₀, subsequently decreases (increases) for 200   M₀ ≲ t ≲ 600   M₀, and then steadily oscillates for t ≳ 600   M₀. This suggests that the star contracts first, then expands slightly, and finally settles to another quasi-equilibrium state with oscillations. The final central density is not beyond the marginally stable point, ρ_c ≈ 0.318. For model N22H1, the qualitative features of the evolution are essentially the same as those of N22H5, but the timescale is different from N22H5 because of the difference in the magnetic field strength. The behavior described above is explained well by the variation in magnetic fields during the evolution as argued below.

Figures 3 and 4 plot the evolution of the rest-mass density and magnetic energy density on the equatorial plane and on one of meridian (x-z) planes, respectively, for model N22H5. The panels a−c in these figures show that the magnetic field near the stellar surface is disturbed by the Parker instability, and then leaks out of the stellar surface. Because the plasma beta is small, hence the matter inertia is small near the stellar surface (as shown below), the matter is dragged by the magnetic force and the stellar surface is consequently distorted. Here, the plasma beta is the ratio of the fluid pressure to the magnetic pressure, (28)where we have used Eqs. (3) and (14) assuming Γ = 2 and k = 1. The minimum value of the plasma beta is initially  ≈2 at the stellar surface, and after the onset of the Parker instability, the leak-out magnetic field loop produces even lower beta plasma near the stellar surface. As a result, a weak wind expanding outward is driven. On the other hand, the ingoing magnetic field loop enhances a turbulent motion in the neutron star. During the transition from the state shown in panel c to d in Figs. 3 and 4, the initial magnetic field profile is completely destroyed and turbulent magnetic field is produced. During the development of the turbulence, the Tayler instability does not appear to play an important role. However, the region near the axis of ϖ = 0 is not stable against this instability and thus no mechanism seems to help stabilizing there.

The toroidal magnetic fields that were prepared initially behave like a rubber belt, which fastens the “waist” of neutron stars. The disappearance of the coherent toroidal magnetic fields, therefore, results in the expansion of the star as shown in the panel d of Figs. 3 and 4. After the magnetic field becomes turbulent, the star steadily oscillates around the hypothetical quasi-stationary state. Although the density profile relaxes to a quasi-stationary state, the turbulent motion is maintained. We qualitatively observe the same features for model N22H1, but the growth timescale of the instability is longer than that of N22H5, as mentioned before.

It is interesting to compare the simulation result with the linear analysis. We find the turbulent field develops in the region that is stable against the perturbation (see the stable region in Figs. 1 and 4d−f). During the linear growth phase, i.e., Figs. 4a−c, this region is likely to be stable. However, because the instability destroys the coherent initial magnetic field profile, i.e., the magnetic field is no longer purely toroidal, the stable region in Fig. 1 is no longer stable after the onset of the instability. We also point out that the linear analysis in Fig. 1 indicates that the higher m mode is unstable near the stellar surface and we indeed find such behavior (see Fig. 3b). For making the mode growth clear, we perform the mode analysis as follows. Because we are interested in the magnetic field behavior near the surface, we put a ring on the equator whose radius is nearly equal to the stellar radius. Then, the Fourier components are defined by (29)where r_ring is the ring radius that is chosen as 4   M₀ for model N22H5. Figure 5a plots the evolution of |C_m| with 1 ≤ m ≤ 10. It is found that all the mode (except for m = 4 and 8) start growing at T ≈ 150   M₀, which shows that the Parker instabilities are in operation. For m = 4 and 8, |C_m| starts growing at T ≈ 50   M₀. This is the artifact from our choice of the Cartesian coordinate grid.

Fig. 5 a) Evolution of the Fourier mode for the magnetic energy density for model N22H5; b) evolution of several energy components for model N22H5; and c) the same as b) but for model N22H1. All the energy components are normalized by the rest mass, and the time axes are shown in units of M0 (bottom) and (top). The internal energy is split into the adiabatic and heating parts (see the text for more details).

The nonlinear growth of the Parker instability is reflected in the energy components as shown in Fig. 5. There, the internal energy (7) is separated into the adiabatic part U_ad and the heating part U_heat, and they are defined by replacing ε in Eq. (7) to ε_ad ≡ ρ^Γ−1/(Γ − 1) and to ε − ε_ad, respectively. Figure 5 shows that the ADM mass is approximately conserved, which implies that gravitational waves are not substantially emitted during the evolution of the neutron stars. The magnetic energy gradually decreases, and the kinetic energy increases during t ≲ 500   M₀ for model H22M5. This illustrates that the meridional circulation is excited by the instability: Figs. 3 and 4 specifically show that this meridional circular motion is induced by the displacement of the toroidal magnetic field line. In other words, the magnetic field helps for increasing the kinetic energy of the fluid element by liberating the gravitational potential energy. During this procedure, the kinetic energy eventually reaches about ten percent the magnetic energy at t ≈ 200   M₀.

For t ≳ 500   M₀, the decrease rate of the magnetic energy becomes high, and simultaneously the thermal energy (U_heat) quickly increases. This indicates that the shock heating occurs because of the turbulent motion induced by the distorted magnetic fields. The kinetic energy of the circulation gradually decreases, and the magnetic and thermal energies settle approximately to constant values at a late stage of the evolution. The adiabatic internal energy also settles to a value lower than the initial one at t ≈ 500   M₀. This implies that the density distribution changes, as shown in Figs. 3 and 4. As we pointed out above, however, the magnetic field configuration never reaches any equilibrium state, in contrast to the axisymmetric case (Kiuchi et al. 2008).

All the features found in the evolution of the energy components for model N22H1 are essentially the same as for model N22H5 except for the relevant timescale, as found from Figs. 2 and 5. The variation timescales of the various components of the energy for model N22H5 are systematically shorter than those for model N22H1. This is natural because the instability develops approximately in the Alfvén timescale.

As found from Fig. 4, the meridian circulation is excited by the magnetic field instability. Thus, the growth timescale of the kinetic energy in the rising phase (t ≲ 200   M₀) should be close to the Alfvén timescale. To check that this is indeed the case, we evaluated the growth time of the kinetic energy. For this evaluation, the data of t/M₀ ∈  [50,100]  and of t/M₀ ∈  [50,200]  were used for models N22H5 and N22H1, and were fitted by assuming the function form of  ∝ e^t/τ_k where τ_k is the growth time. We find that τ_k ≈ 14   M₀ and  ≈22   M₀ for models N22H5 and N22H1, respectively. Because these values are substantially smaller than the averaged Alfvén timescale given in Table 1, is less appropriate for characterizing the growth timescale of the magnetic field instability. Instead, we find it appropriate to employ the Alfvén timescale in the vicinity of the stellar surface because both the linear analysis and our simulations indicate that the instability primarily grows there. The Alfvén timescale τ_A estimated at r/r_s = 0.95 is 60   M₀ for model N22H5 and 120   M₀ for model N22H1. Furthermore, the linear analysis suggests that the mode of m ~ O(10) is very unstable, and we find this feature in our simulations as discussed above. Because the growth rate is proportional to m as we see in Eq. (17), the growth timescale should be given by τ_A/m,  ~6   M₀ for model N22H5 and 12   M₀ for model N22H1, which agrees with τ_k within a factor of two. In any case, the growth timescale of the instability is approximately proportional to the Alfvén timescale normalized by m. Therefore, we can conclude that the primary instability is the Parker instability as expected in the linear analysis.

5.2. Rotating case

We now study the stability for two rigidly rotating models listed in Table 1. Again, long-term simulations are performed as in the nonrotating models. In Fig. 2, the evolution of the central density and the minimum value of the lapse function for models R22H2T8 and R22H08T8 are plotted together. We note again that for both models, the angular velocity is approximately as large as the Kepler limit at the equatorial stellar surface. The central density for model R22H2T8 (R22H08T8) remains approximately constant until t ≈ 800   M₀(1000   M₀), and then, gradually increases for t ≲ 2000   M₀(2400   M₀). Eventually, it settles to a new value for t ≳ 2000   M₀(2400   M₀). The reason that the final central density is higher than the initial one will be described below.

Although the magnetic field strength and central density for the rotating model R22H08T8 are comparable to those for the nonrotating model N22H1, the evolution process in the central region is significantly different. For model R22H08T8, the central density remains approximately constant for a time much longer for model N22H1. This is because the rotation stabilizes the Tayler instability, which may set in for the nonrotating models, as expected in the local linear perturbation analyses (see Sect. 4.2). The Tayler instability is a primary magnetic field instability associated with the toroidal field near the axis of ϖ = 0 for the nonrotating models, but this is not the case for the rapidly rotating models.

However, the instability is not suppressed by the presence of rapid rotation for all the places inside the neutron star, as Fig. 2 illustrates that the central density varies for a longerterm evolution with t ≈ 2000   M₀. This result is totally different from the axisymmetric case (Kiuchi et al. 2008), in which the rapid rotation suppresses the onset of the interchange instability. One of the models studied in Kiuchi et al. (2008) has similar model parameters to those of R22H08T8, which is stable for the axisymmetric perturbations. This implies that a nonaxisymmetric instability is excited for the rapidly rotating models this time. To clarify the relevant instability, we generate Figs. 6 and 7, in which the rest-mass density and the magnetic energy density for model R22H2T8 are plotted on the equatorial and meridian planes, respectively. Until t ≈ 200   M₀, we observe that the coherent magnetic field and density profiles remain. However, at t ≈ 400   M₀, the magnetic field profile near the stellar surface is deformed in the same manner as for the nonrotating models. During the subsequent evolution, the coherent magnetic field structure is totally destroyed, and a turbulent motion is excited. The surface expands because the plasma beta near the surface is below one due to the leak-out of the magnetic field. Because the coherent toroidal magnetic field, which fastens the waist of the neutron star, disappears, the radius of the neutron star increases. All these features are essentially the same as for the nonrotating models.

Fig. 6 The same as Fig. 3, but for a rotating model R22H2T8. The arrows indicate the velocity fields.

Fig. 7 The same as Fig. 4, but for a rotating model R22H2T8.

Fig. 8 Snapshots of magnetic pressure a) for model R22H2T8 and b) for mode N22H5, and those of angular velocity profiles c) for model R22H2T8 and d) for model R22H08T8. Both profiles are plotted along the x-axis on the equator. In panel a), the profile along y-axis is also plotted. In panels c) and d), it is seen that the negative gradients of the angular velocity profiles are developed near the stellar surface.

The evolution of the magnetic field near the rotation axis in the rotating models is slightly different from the nonrotating models. Figures 8a and b plot the snapshots of the magnetic pressure defined by b²/8π along the x and y-axes on the equator for models R22H2T8 and N22H5, respectively. In the rotating model R22H2T8, the profile near the center does not drastically change. However, the magnetic pressure increases gradually and systematically, and the matter near the axis is pinched by the increased magnetic pressure. This increase proceeds in the axisymmetric way because the profiles along y-axis is approximately identical to those along x-axis in Fig. 8a. This might seem to be incompatible with our previous results (Kiuchi et al. 2008). To clarify this point, we reconsidered the criterion for the axisymmetric perturbation: The axisymmetric instability ignites if any of these inequalities holds. Equations (31) and (32) implies the magnetic field profile given by Eq. (20) is marginally stable. The magnetic field line strength evolves as (33)where e^i(a) is a tetrad basis. In axisymmetric simulations, the field line strength is completely preserved because the poloidal magnetic field, i.e. B_(ϖ) and B_(z), is never generated if the initial magnetic field is purely toroidal. Then, the inequalities (31) and (32) are never satisfied during the evolution of the magnetized star. On the other hand, the field line strength deviates from its initial value in three-dimensional simulations because the poloidal field is generated by a perturbation induced by a truncation error in general (in addition to the change of the angular velocity profile as discussed below). As the result, the inequalities (31) and (32) may hold during the evolution, and the axisymmetric instability could set in. This is why the magnetic pressure increases and angular velocity is distorted near the center as seen in Figs. 8a and c. The situation is the same in model R22T08T8. It is interesting to note that the stellar surface in the rotating model expands whereas the central part contracts due to the redistribution of the magnetic field profile. In contrast to the rotating model, the coherent profile of the magnetic fields near the stellar center in the nonrotating model N22H5 disappears after the onset of the instability, which results in the systematic expansion of the star as mentioned in the previous section. The nonrotating models are also marginally stable against the interchange instability, as shown in Eq. (31). However, these models are unstable against the nonaxisymmetric mode (see Fig. 1b) and this mode overcomes the interchange mode. It is also interesting to note that the nonaxisymmetric instability develops at an earlier time than expected from the central density’s evolution, e.g., at t ≈ 800   M₀(1000   M₀) for R22H2T8 (R22T08T8) (see Fig. 2a). However, the instability develops before t ~ 600   M₀ for these rotating models as shown in Fig. 9. This also reflects that the instability, which affects the global structure of the neutron star, sets in both near the stellar surface and in the central region; namely, the Parker (interchange) instability plays an important role in the outer (central) region for the rotating models.

Fig. 9 Time evolution of several energy components for models R22H2T8 a) and for R22H08T8 b).

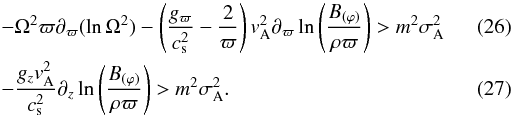

The local linear perturbation analysis predicts that our rigidly rotating models are stable against the nonaxisymmetric perturbation as described in Sect. 4.2. Thus, our numerical result does not seem to agree with the linear analysis. However, this is not the case, because our rotating model is close to a marginally stable state and is destabilized by a slight nonlinear perturbation to the rotational velocity. To explain this, we plot the snapshots of the angular velocity in Fig. 8, in which the angular velocity profiles along the x-axis on the equator are plotted for models R22H2T8 and R22H08T8. This shows that the angular velocity deviates slightly from the constant profile, and the negative gradients near the stellar surface, in particular, are developed during the evolution. This time variation comes from the oscillation of the neutron star, which is initially triggered by a perturbation of numerical origin. The initial conditions we gave are in equilibria, but a small numerical error associated with the finite grid resolution induces a perturbation, and then the neutron stars start oscillating around their equilibrium states. Although the perturbation is induced by a numerical error in this case, it is quite natural to expect that any star in nature oscillates, and thus the precisely rigid rotation is not realized. Once the angular velocity profile has the negative gradient, the instability criterion (26) could be satisfied because the first term on the lefthand side has a very high positive value in the rapidly rotating models with weak magnetic fields; i.e., the criterion is satisfied even for a small angular velocity gradient.

The growth process of the instability is reflected well in several energy components. Figure 9 plots their evolution. This shows that the ADM mass, adiabatic internal energy, and rotational kinetic energy remain approximately constant during the evolution. The decrease in the magnetic energy is prominent at t ≈ 1500   M₀ for model R22H2T8 and t ≈ 2000   M₀ for R22H08T8. The magnetic energy increases only by  ~2% during the development of the interchange instability, e.g., for t ≲ 400   M₀ for model R22H2T8. The kinetic energy, in which contribution of the rotational kinetic energy is excluded, increases with time. This shows that the meridian motion is developed. We find again that the instability associated with the presence of toroidal magnetic fields cannot be suppressed by the rapid rotation and the magnetic field never reaches an equilibrium state as in the nonrotating models.

It is well known that negative gradient of angular velocity in the presence of magnetic field leads to the MRI (Balbus & Hawley 1991). As discussed above, the negative angular velocity appears in the vicinity of the stellar surface, so we hypothetically estimate the MRI growth rate as σ_MRI ~ Ωϖ|∂_ϖlnΩ|. We fit the angular velocity profile as a function in the radius in Figs. 8c−d and obtain the gradient ∂_ϖlnΩ. Putting the value of the gradient, angular velocity, and the stellar radius into the equation, we estimate the growth rate as σ_MRI   M₀ ≈ 0.09 (0.1) for model R22H2T8 (R22H08T8). On the other hand, we infer the instability growth rate from the increase in the kinetic energy shown in Fig. 9 with the same strategy for the nonrotating case. The resulting growth rate σ   M₀ is 0.008 (0.007) for model R22H2T8 (R22H08T8), where we use the data of t/M₀ ∈  [0,600]  in both the models. Therefore, the growth rates do not match. However, Eqs. (17) and (25) tell us that the growth rates of the interchange and Parker instability depend on the magnetic field strength. We therefore conclude that the instability we find in the rotating model is not the MRI.

Fig. 10 The results of convergence tests for model N22H5; a) the central density; b) the minimum value of lapse function; c) the ADM mass normalized by its initial value; d) the internal energy; e) the magnetic energy; f) the kinetic energy; and g) the normalized Hamiltonian constraint.

Fig. 11 The same as Fig. 10 but for model R22H2T8.

Before closing this section, we show that the convergence is achieved in our numerical results with an accuracy high enough to draw a quantitatively reliable conclusion. Figures 10 and 11 plot the evolution of (a) the central density; (b) the minimum value of the lapse function; (c) the ADM mass; (d) the internal energy; (e) the magnetic energy; (f) the kinetic energy; and (g) the Hamiltonian constraint violation for models N22H5 and R22H2T8. The Hamiltonian constraint violation is defined by (34)with (35)where is the Laplacian associated with , ψ is the conformal factor, and ρ_H = (ρh + b²/4π)w² − (P + b²/8π) − (αb^t)²/4π. In all the panels, we plot the results of three different grid resolutions. In Figs. 10a, b, d, and e, we find a transition time at t ~ 500   M₀ depends slightly on the grid resolution, but on the whole, the results appear to converge. The ADM mass, which is approximately conserved in the present situation, is conserved within 99.8 % accuracy (see Fig. 10c), and the error in the Hamiltonian constraint violation is in an acceptable level (less than  ~1% error; see Fig. 10g). In the panel e, we observe that the convergence is lost for t ≳ 1000   M₀. This is likely to be caused by the turbulent field developing both outside and inside the star as shown in Figs. 3f and 4f. To handle such a region and/or turbulent field, we would need a more sophisticated numerical scheme.

From these figures, we conclude that all the qualitative features of the magnetic field instability found in this work are independent of the grid resolution. In the rotating model R22H2T8, we find essentially the same features as the convergence study in the nonrotating model N22H5.

6. Summary and discussion

We explored the nonaxisymmetric instability of neutron stars with purely toroidal magnetic fields. Preparing the nonrotating and rotating neutron stars in equilibrium as the initial conditions, the three-dimensional GRMHD simulations were performed. For the nonrotating models, the local linear perturbation analysis predicts that the Parker instability will be the primary instability, and we confirmed this. Owing to the Parker instability, a turbulent state is developed, and the initially coherent magnetic field profile is totally varied. The magnetic field profile never reaches an equilibrium state, which sharply contrasts with the axisymmetric instability of Kiuchi et al. (2008). The growth timescale of the Parker instability depends on the magnetic field strength, i.e., the Alfvén timescale, and this result also agrees with the local linear perturbation analysis. The present result strongly suggests that three-dimensional treatment is crucial for clarifying the instability of a neutron star with toroidal magnetic fields. In other words, any assumption of the spacetime symmetry (e.g., axisymmetric symmetry) could prevent reaching the correct conclusion.

We also explored the instability of rigidly and rapidly rotating neutron stars. The linear analyses have suggested that rapid rotation could play a role as a stabilizing agent. We confirm that the rapid rotation stabilizes the Tayler instability, which may occur near the axis of ϖ = 0 in the nonrotating case. However, the interchange instability could play a minor role because the neutron stars are marginally stable against it. We note that the interchange mode never develops in the axisymmetric simulations due to the symmetry imposed. We also find that the Parker instability that is relevant near the stellar surface may not be stabilized by the rapid rotation. This is because, by means of a perturbative oscillation, neutron stars may have a region in which the gradient in the angular velocity profile is negative (∂Ω/∂ϖ < 0). This negative gradient can induce the Parker instability when the neutron star shows rapid rotation and weak magnetic fields. As in the nonrotating model, a turbulent state is subsequently developed in the outer region of the neutron star. This result also sends a message that the three-dimensional simulation is essential for investigating a magnetic field instability.

As mentioned in Introduction, a large number of core-collapse supernova simulations based on the magnetorotational mechanism have shown that toroidal magnetic fields are amplified in the protoneutron stars via the winding mechanism. In the assumption of axial symmetry, these fields may be in quasi-equilibrium after the saturation is reached. However, this could disagree with the result of the linear perturbation analysis; i.e., the neutron stars with purely toroidal magnetic fields are often unstable. The present study indeed suggests that such neutron stars are unstable, so that the assumptions of axial symmetry and rapid rotation, which are imposed for most of the magnetohydrodynamical supernova simulations, would be inappropriate. (Note that in axial symmetry, the rapid rotation stabilizes neutron stars with toroidal magnetic fields, as illustrated in Kiuchi et al. 2008.) In a nonaxisymmetric simulation, we may find that a protoneutron star with strongly toroidal magnetic fields is unstable and that a turbulent motion inside it is excited. Magnetohydrodynamic simulations have to be performed in three spatial dimensions.

The stability of more generic magnetic field configurations, i.e., mixed poloidal-toroidal fields, is quite important because such fields would be realized in general. Recently, Braithwaite & Nordlund (2005), Braithwaite & Spruit (2004), and Duez et al. (2010) studied the stability of Newtonian stars with such fields, and report that the mixed field may play an important role in stabilization. They show that the equilibrium profile is maintained on several Alfvén timescales. We plan to study this issue with the weak magnetic field solution obtained by Ioka & Sasaki (2004) in the general relativistic framework.

Recently, Lander et al. (2010) and Lander & Jones (2011) have studied the instability associated with the presence of toroidal magnetic fields by solving the linearized Newtonian MHD equations with their time-domain code. They show that the Tayler instability characterized by the azimuthal mode number m = 1 primarily occurs near the axis of ϖ = 0 and that no pronounced Parker instability sets in near the surface of the star . Similar results were obtained by Duez et al. (2010) with Newtonian resistive MHD simulations. These results seem to be incompatible with our present results. The reason for this discrepancy seems to be that Lander et al. (2010) and Lander & Jones (2011) restrict their studies to low-order azimuthal modes (m ≤ 6), and Duez et al. (2010) employ some kinds of (artificial) viscosity and resistivity for the evolution to remove numerical instability caused by a short-wavelength oscillation. We note that Lander et al. (2010) and Lander & Jones (2011) also use artificial viscosity to stabilize their computations. This suggests that short-wavelength modes might be suppressed in their simulations. As can be seen from Figs. 1 and 3, the Parker instability found in this study is characterized by a high-order azimuthal mode number, which implies that the unstable modes of the Parker instability near the surface have a short wavelength. In Duez et al. (2010), they use a stably stratified model with the polytrope index n = 3 and forecast the instability as we did in Fig. 1. They find the primarily instability is not the Parker instability, but the Tayler instability in their model. This is probably because the restoring force due to the entropy gradient near the surface stabilizes the magnetic buoyant force.

Finally, we end by commenting on a possible potential effect for stabilizing the magnetic field instabilities that are not taken into account in our present work. In a stably stratified region of the star, the buoyant force inhibits the interchange, Parker, and Tayler instabilities from growing (Acheson 1978). For the cold neutron star, the composition gradient induced by chemical inhomogeneities can stably stratify the neutron star matter and supports the gravity mode (g-mode) oscillations. Finn (1987) considered crustal g-modes due to the composition discontinuities in the outer envelopes, whose typical oscillation period is about 5 ms for a canonical neutron star model. Reisenegger & Goldreich (1992) studied the effect of g-modes associated with buoyancy induced by protoneuron composition gradients in the core, whose typical oscillation period is about 2 ms for a canonical neutron star model. If the growth timescale of the Parker instability found in our study is longer than these periods of the g-modes, it is possible that the buoyant forces inside the neutron star suppress the growth of the Parker instability. In the present study, we find that a typical growth timescale of the Parker instability is about 20   M₀, which gives a typical growth timescale of 0.1 ms for a canonical neutron star model with a strong magnetic field of 10¹⁶ G. For the present models, therefore, it seems that the buoyancy inside the neutron star could not suppress the onset of the Parker instability. However, for a weaker magnetic field strength  ≈10¹⁵ G, the Parker instability could be suppressed by the buoyancy because a typical growth timescale of the Parker instability becomes 1 ms. To derive a definite answer to this problem, regardless of whether the buoyancy can stabilize the Parker instability inside the neutron star, we have to know the local growth rate of the Parker instability. Unfortunately, in our simulations, it is difficult to estimate it in the vicinity of the stellar surface because the local magnetic structure highly depends on the numerical resolution. To investigate this point more precisely, we have to take the chemical inhomogeneities into account and this implies that it is necessary to implement equations of state that depend on the chemical compositions and to obtain the evolution of the chemical compositions. This is beyond the scope of this paper.
