Issue |
A&A
Volume 507, Number 3, December I 2009
|
|
---|---|---|
Page(s) | 1567 - 1574 | |
Section | Stellar structure and evolution | |
DOI | https://doi.org/10.1051/0004-6361/200912799 | |
Published online | 08 September 2009 |
A&A 507, 1567-1574 (2009)
The binary nature of the Galactic centre X-ray source CXOGC J174536.1-285638
J. S. Clark1 - P. A. Crowther2 - V. J. Mikles3
1 - Department of Physics and Astronomy, The Open
University, Walton Hall, Milton Keynes, MK7 6AA, UK
2 -
Department of Physics and Astronomy, University of Sheffield, Sheffield, S3 7RH, UK
3 - Department of Physics Astronomy, Louisiana State University, 273
Nicholson Hall, Tower Drive, Baton Rouge, LA 70803, USA
Received 30 June 2009 / Accepted 27 August 2009
Abstract
Context. The combination of X-ray and near-IR surveys of the central 2
of the Galactic centre have revealed a population of X-ray bright
massive stars. However, the nature of the X-ray emission, originating
in wind collision zones or via accretion onto compact objects, is
uncertain.
Aims. In order to address this we investigated the nature of one of the most luminous X-ray sources - CXOGC J174536.1-285638.
Methods. This was accomplished by an analysis of the near-IR
spectrum with a non-LTE model atmosphere code to determine the physical
parameters of the primary.
Results. This was found to be an highly luminous WN9h star,
which is remarkably similar to the most massive stars found in the
Arches cluster, for which comparison to evolutionary tracks suggest an
age of 2-2.5 Myr and an initial mass of 110
.
The X-ray properties of CXOGC J174536.1-285638 also resemble
those of 3 of the 4 X-ray detected WN9h stars within the Arches and in
turn other very massive WNLh colliding wind binaries, of which WR25
forms an almost identical ``twin''. Simple analytical arguments
demonstrate consistency between the X-ray emission and a putative
WN9h+mid O V-III binary, causing us to favour such a scenario over
an accreting binary. However, we may not exclude a high mass X-ray
binary interpretation, which, if correct, would provide a unique
insight into the (post-SN) evolution of extremely massive stars.
Irrespective of the nature of the secondary, CXOGC
J174536.1-285638 adds to the growing list of known and candidate
WNLh binaries. Of the subset of WNLh stars subject to a radial velocity
survey, we find a lower limit to the binary fraction of
45%;
of interest for studies of massive stellar formation, given that they
currently possess the highest dynamically determined masses of any type
of star.
Key words: stars: early type - stars: binaries: general - Galaxy: center
1 Introduction
Near-IR observations of the Galactic centre have demonstrated that it hosts a
large population of high mass stars, predominantly located within three
young (2-6 Myr), massive (>104 )
clusters in the
central
50 pc - the Arches, Quintuplet and Central cluster (e.g. Krabbe et al. 1995; Nagata et al. 1995; Cotera et al. 1996; Figer et al. 1996).
Recently, the combination of radio, X-ray and near-mid IR data
has revealed an additional population of apparently isolated (candidate) massive stars throughout this region
(e.g. Mauerhan et al. 2007). A full understanding of the processes governing
star formation in the extreme environment of the Galactic centre therefore requires an explanation
for their properties and origin - are they remnants of clusters disrupted by tidal forces or interaction
with molecular clouds, the result of dynamical or SNe kick ejection from natal clusters or did they form in situ
in a non clustered environment?
Identification of such stars has been facilitated by the production of deep X-ray catalogues of the Galactic centre (GC;
Muno et al. 2006a, 2009), revealing over 9000 discrete point sources in the central
2
.
Of these the majority are expected to be low mass systems, most likely cataclysmic variables,
but a subset of the brighter, variable sources are expected to be either colliding wind binaries (CWBs) or
high mass X-ray binaries (HMXBs). Cross correlation of these catalogues with near-IR imaging and subsequent spectroscopy
has revealed a number of these sources to be identified with candidate high stellar mass counterparts
(Muno et al. 2006b; Mauerhan et al. 2007).
Critically, the star formation rate inferred for the GC suggest a statistically significant number of HMXBs (Muno et
al. 2006a, and refs. therein) should be present and detectable, allowing the physical
assumptions of population synthesis modeling (such as the SNe kick velocity) to be tested. Therefore, accurate
classification of these systems is invaluable in order to confirm their nature and the origin of the X-ray emission.
Mikles et al. (2006, 2008, henceforth M06, M08) report the discovery of an emission line star associated
with the bright X-ray source CXOGC J174536.1-285638 (abbreviated to CXO J1745-28). The X-ray spectrum is
dominated by strong Fe XXV emission, with the
luminosity
(
erg s-1) and hard nature of the emission (
keV; M06) both arguing for a binary interpretation. However, the nature of the
system (CWB or HMXB) remains obscure, even after the discovery of a
d periodicity in the X-ray flux
(M08). This is largely due to the uncertainty regarding the properties of the primary and hence in
this study we present a detailed analysis of the near-IR spectroscopy presented by M06 in order to provide
accurate stellar parameters for the system primary and hence address the nature of the system. In Sect. 2 we
present the results of this non-LTE analysis, discuss the nature of the system in Sect. 3 and summarise
our results in Sect. 4.
Table 1: UKIDSS near-IR photometry, extinction and absolute magnitude determinations for an assumed distance of 8 kpc to CXO J1745-28 (Reid 1993).
2 Observations and analysis
We have carried out a non-LTE spectroscopic analysis of the near-IR spectroscopy of CXO J1745-28 obtained by M06 using IRTF/SpeX (Rayner et al. 2003) and CMFGEN (Hillier & Miller 1998).
2.1 IRTF/SpeX spectroscopy
Short-wavelength, cross-dispersed spectroscopy of CXO J1745-28
was obtained by M06 on 1 Jul 2005 using IRTF/SpeX, covering the
JHK bands at a spectral resolution of
.
M06 describe
the data reduction process and spectral features which we shall
not repeat here, except that the broad emission feature at 1.77
m
attributed to He II (19-8) 1.772
m is in error.
He II is expected to make a minor contribution to this
feature, on the basis of negligible emission from He II (23-8)
1.658
m (21-8 is blended with He I 1.700
m).
The primary component is not known.
Crowther et al. (2006) discuss near-IR spectral classification of
Wolf-Rayet stars from which we assign a WN9 subtype on the basis of
He II/Br
.
We may refine this subtype in
view of its close morphological match to near-IR spectroscopy of
HDE 313846 (WR108) from Bohannan & Crowther (1999). HDE 313846
is a WN9ha star, for which the ``h'' indicates the presence of significant
hydrogen from the Pickering-Balmer decrement at visual wavelengths and the
``a'' represents intrinsic absorption lines in high Balmer lines. Analogous
``h'' diagnostics are available in the near-IR, such as the hydrogen
Brackett series and corresponding He II (n-8) transitions in
CXO J1745-28. We therefore refine the subtype of CXO J1745-28 to WN9h. The
morphological similarity between CXO J1745-28 and HDE 313846 suggests both
are WN9ha subtypes, although no unambiguous diagnostic is available from
low resolution near-IR spectroscopy. Other examples of WN9ha stars are
known, such as HD 152408 (Bohannan & Crowther 1999) which had
earlier been classified as an Ofpe star by Walborn (1982),
reflecting their proximity to the Wolf-Rayet and Of boundaries. Recently,
many other examples of WN7-9h stars have been identified in the Arches
cluster from near-IR spectroscopy (Martins et al. 2008). Of
these, F2 and F7 possess essentially identical K-band spectral
morphologies to CXO J1745-28, while F6 only differs in its stronger C
IV 2.070, 2.079
m features, as shown in Fig. 2. We also
include one other WN9h star F9 for comparison since this is a strong X-ray
source (as are F6 and F7), although its emission line spectrum is
somewhat
weaker.
![]() |

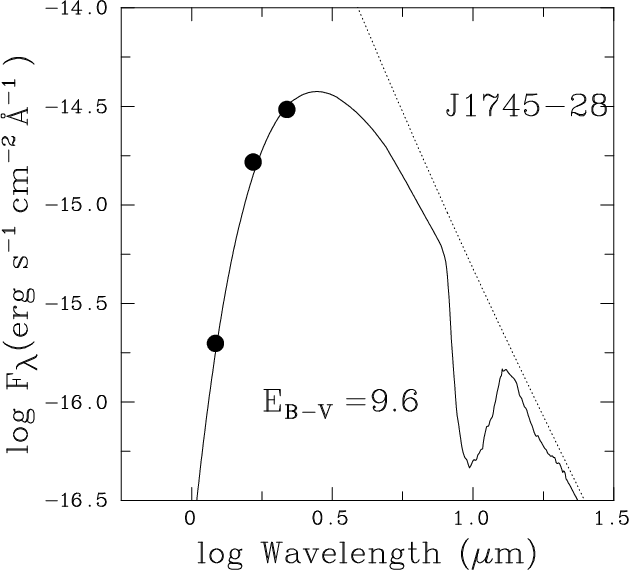

Figure 1: Reddened model spectral energy distribution (SED) of CXO J1745-28 (solid line, EB-V = 9.6) and intrinsic SED (dotted line) overlaid upon IR photometry from UKIDSS. |
Open with DEXTER |
![]() |

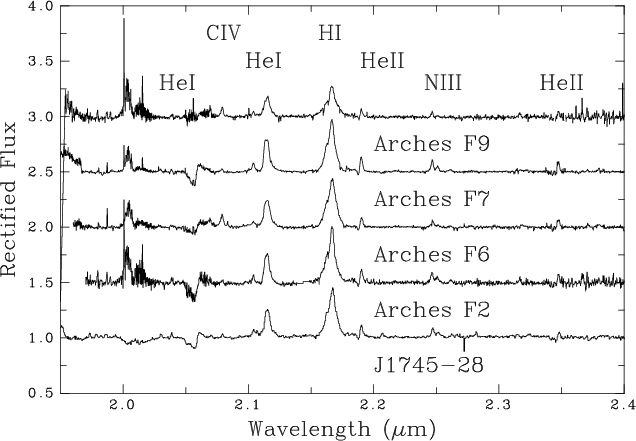

Figure 2: K-band spectroscopy of CXO J1745-28 from M06 together with morphologically similar WN9h stars from the Arches cluster (F2, F6 and F7) plus the weaker lined WN9h star F9 which is X-ray bright, as are F6 and F7. The VLT/SINFONI Arches spectroscopy is from Martins et al. (2008). |
Open with DEXTER |
We have used photometry of CXO J1745-28 from the fourth data release (DR4) of UKIDSS together with intrinsic JHK colours predicted by our spectroscopic analysis (presented in Sect. 2.3), from which K-band extinctions, AK, may be obtained using the extinction relations from Indebetouw et al. (2005). The UKIDSS project is defined in Lawrence et al (2007). UKIDSS uses the UKIRT Wide Field Camera (WFCAM; Casali et al, 2007). The photometric system is described in Hewett et al (2006), and the calibration is described in Hodgkin et al. (2009).
We favour UKIDSS photometry to 2MASS, owing to a late-type source which is blended with CXO J1745-28 in 2MASS datasets (see M08). Our derived extinction of AK = 3.32 mag for CXO J1745-28 corresponds to EB-V = 9.6 or AV = 30 mag, assuming a standard Galactic extinction law. For an assumed distance of 8 kpc to the Galactic Centre (Reid 1993), we obtain an absolute K-band magnitude of -7.51 for CXO J1745-28. In Fig. 1 we present the spectral energy distribution (SED) of our J1745-28 model, reddened according to the IR extinction law presented in Morris et al. (2000), together with UKIDSS photometry. Spitzer IRAC photometry is not available, although the theoretical model suggests [3.6] = 8.28, [4.5] = 7.66, [5.8] = 7.24 and [8] = 7.11 for J1745-28. Our derived extinction agrees well with M06 who estimated AV = 29 mag by simply adopting (H-K)0 = 0.0 mag.
For comparison, WN9h stars within the Arches cluster possess HST/NICMOS
F205W magnitudes in the range 10.45 (F1) to 11.2 (F2) based upon
photometry from Figer et al. (2002). These correspond to
absolute F205W magnitudes of -6.4 to -7.2 mag for a uniform
K-band extinction of
mag (Kim et al. 2006)
and (identical) distance of 8 kpc. As such, one would expect that
CXO J1745-28 to be amongst the most luminous of the WN9h stars in the
Galactic Centre region.
2.2 Atmospheric code
The non-LTE atmosphere code CMFGEN solves the radiative transfer equation in the co-moving frame, under the additional constraints of statistical and radiative equilibrium.
Since CMFGEN
does not solve the momentum equation, a density or velocity structure is
required. For the supersonic part, the velocity is parameterized with a
classic -type law. This is connected to a hydrostatic density
structure at depth, such that the velocity and velocity gradient match at
the interface. The subsonic velocity structure is defined by a
corresponding
fully line-blanketed plane-parallel TLUSTY
model (Lanz & Hubeny 2003).
CMFGEN incorporates line blanketing through a super-level
approximation, in which atomic levels of similar energies are
grouped into a single super-level which is used to compute the atmospheric
structure. Our atomic model is similar to that adopted by
Crowther et al. (2002), including ions from H I, He
I-II, C III-IV, N III-V, O III-VI, Si IV,
P IV-V,
S IV-VI and Fe IV-VII. By number, the main
contributors to line blanketing are Fe IV-V. In addition, extended
model atoms of C III, N III and O III were included
since each contribute to the 2.112 m emission feature.
We have assumed a depth-independent Doppler profile for all lines when solving for the atmospheric structure in the co-moving frame, while in the final calculation of the emergent spectrum in the observer's frame, we have adopted a uniform turbulence of 50 km s-1. Incoherent electron scattering and Stark broadening for hydrogen and helium lines are adopted.
With regard to wind clumping, this is incorporated using a radial
dependent volume filling factor, f, as described in Hillier et al.
(2003), with a typical value of f = 0.1 resulting in a reduction in
mass-loss rate by a factor of
.
2.3 Analysis
![]() |

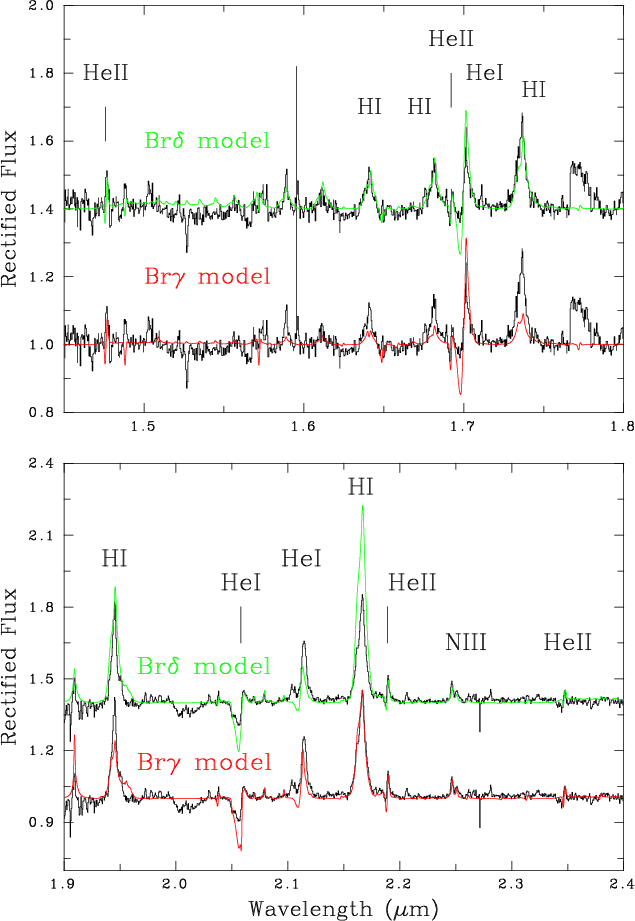

Figure 3:
H and K band IRTF/SpeX observations of
CXO J1745-28 from M06 (black)
with our Br |
Open with DEXTER |
Table 2: Derived physical and wind parameters for CXO J1745-28 (WN9h) for CWB and HMXB scenarios.
We derive the stellar temperature CXO J1745-28 using diagnostic He I
2.058 m, 1.700
m, He II 2.189
m, 1.692
m together
with Br
for the mass-loss rate, hydrogen content and velocity
structure. The P Cygni He II 2.189
m profile naturally arises
in the stellar wind of the star and does not require the presence of
an additional source of ionisation within the system, such as a compact
companion (e.g. M06). Stellar temperatures,
,
correspond to a
Rosseland optical depth of 20, which are typically (up to) a few thousand
degrees higher than effective temperatures, T2/3, relating to
optical depths of 2/3 in such stars.
We have estimated a terminal wind velocity of 1350 km s-1 from
He I 2.058 m from which a (slow) velocity law of exponent
is used for the supersonic velocity structure.
= 0.8
was adopted by Martins et al. (2008), for which similar
synthetic spectra are predicted, except for somewhat weaker emission
and absorption lines. A measure of the nitrogen mass fraction is obtained
from the weak N III 2.247, 2.251
m doublet since the stronger
feature at 2.112
m is blended with He I, C III and
O III, while C IV 2.070, 2.079
m allows an estimate of
the carbon content. We adopt solar values for all other metals
(e.g. Cox 2000; with the exception of oxygen for which the value given
by Asplund et al. 2004, was used).
Spectroscopic fits to IRTF/SpeX observations are presented in
Fig. 3.
Overall the agreement between predicted line profiles and observations is
satisfactory, although He I 2.058 m and 1.700
m P Cygni
absorption are too strong in the synthetic spectrum (
= 0.8 does provide an
improved match to 2.058
m) and it is apparent that the high members
of the hydrogen Brackett series are predicted to be too weak in emission
for the adopted
% by mass (He/H = 0.7 by number). This model
is referred to as the Br
model in Table 2, although it
should be emphasised that He I lines within the 7-4 set of
transitions contribute
30% of the equivalent width for this
feature.
In order to better reproduce the strength of the higher Brackett
series,
a significantly higher hydrogen content of
% by mass
(He/H = 0.25 by number) is required, which is also presented in Fig. 3.
Model parameters for this, our Br
model, are also presented in
Table 2. Consequently, one should caution against the use of
a solitary diagnostic in view of the significant difference resulting
from other diagnostics even for cases as simple as a single hydrogen
series.
In both cases, we estimate a nitrogen mass fraction of 1.2% for
CXO J1745-28 from the N III 2.247, 2.251 m features which should
be
reliable to
50%. Carbon is poorly constrained, although
% by mass reproduces the weak C IV 2.070, 2.079
m
features satisfactorily.
In view of the uncertain nature of the companion to the WN9h star (Sect. 3), we have
estimated its stellar properties under two assumptions; either the near-IR
spectrum of the Wolf-Rayet star is (weakly) diluted by the continuum of a
massive companion in the case of a CWB system or it suffers negligible
contribution from the compact companion in the case of a HMXB. Here, we
adopt a mass ratio q = 0.4, which is consistent with
favoured by M08 for a sole dominant IR source. For a current WN9h mass of
80
(see below), we shall use 30
for the companion
mass, namely an O6 dwarf, O7 giant or O9 supergiant from the Martins et
al. (2005) O star calibration. On the basis of the companion wind
properties, discussed in Sect. 3, we shall adopt O7 III for
the putative companion, for which
MK = -4.76 (Martins & Plez
2006). For a systemic absolute magnitude of
MK = -7.51 mag we obtain
MK = -7.42, i.e. the light ratio of the O to WR star is 0.09 in the K-band (0.10 in the J and H bands). Derived stellar
parameters for the WN9h star in these scenarios are presented in
Table 2.
2.4 Comparison with Arches cluster members
The position of CXO J1745-28 on the H-R diagram is presented in
Fig. 4 together with O supergiant and WN7-9h members of the
Arches cluster from Martins et al. (2008) and solar
metallicity, rotating (300 km s-1) theoretical models from Meynet &
Maeder (2000). Note that the stellar luminosities of the Arches
members have been downward corrected by 0.1 dex due to an error in the
original study (Martins, priv. comm.), but re-adjusted upward by 0.05 dex
for consistency with our adopted distance.
Arches WN9h members F2, F6 and F7
are of particular interest in view of their spectroscopic
similarities to CXO J1745-28 (recall Fig. 2), for which Martins et
al. (2008) obtained stellar temperatures of 34 kK (versus
32 kK here for CXO J1745-28). However, K-band bolometric corrections,
BCK, for the Arches members remain significantly larger (BC
4
mag) than our estimate for J1745-28 (BC
3.5 mag), even after
the 0.1 dex correction in stellar luminosity. If we turn to abundance
estimates, Br
-derived surface hydrogen contents in the range 40%
55% are obtained for F2, F6 and F7, versus 25% for
CXO J1745-28, while the nitrogen mass fraction obtained for CXO J1745-28
is also at the lower end of the range observed for the Arches members; 1.2% versus
1.1-2.8% respectively.
![]() |

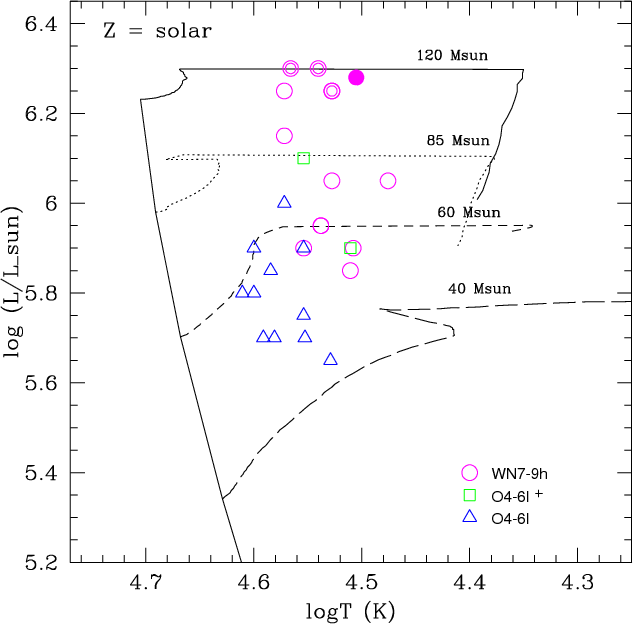

Figure 4:
HR diagram indicating the position of CXO J1745-28
(filled symbol) and the WN7-9ha
and O4-6I members of the Arches cluster (open symbols; Martins et al.
2008), with the luminosity of Arches members revised downwards by 0.05dex
as described in Sect. 2.4. The Geneva evolutionary tracks for rotating (
|
Open with DEXTER |
Table 3: Summary of the properties of CXO J17545-28 in comparison to magnetic O and WR and Of?p stars.
We infer an initial (current) mass of 110 (80)
and a
current age of 2-2.5 Myr for CXO J1745-28, such that it is likely a very
massive star that is slowly evolving away from the hydrogen burning main
sequence. As such, J1745-28 is not a classical helium-burning Wolf-Rayet
star.
Predicted surface hydrogen mass fractions at this early stage are
% for models initially rotating at 300 km s-1, with lower
depletions of
% for equivalent non-rotating models. In
Fig. 5 we compare the Br
-derived surface hydrogen content
for CXO J1745-28 with Arches cluster members from Martins et al.
(2008) and the predicted surface hydrogen from Meynet &
Maeder (2000) models. Recall that the hydrogen content for
CXO J1745-28 depends upon the diagnostic hydrogen line used, either
% from Br
(the same diagnostic as used by Martins et al.
2008) or
% for higher Brackett lines.
3 The nature of CXO J1745-28 - CWB or HMXB?
![]() |

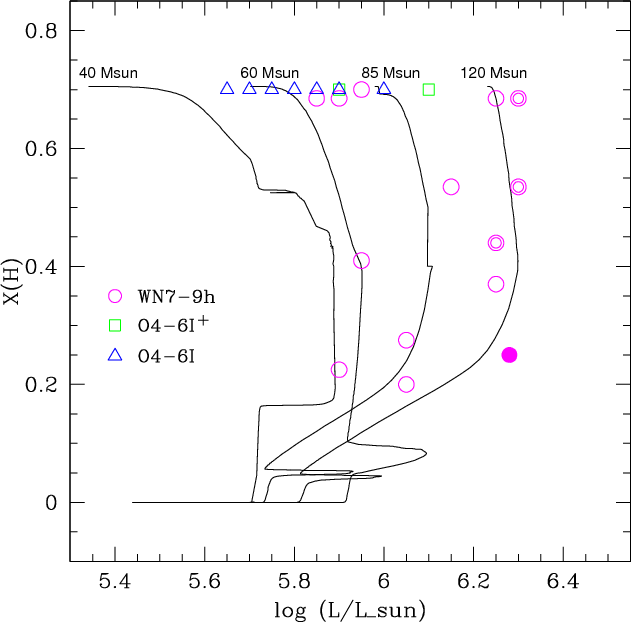

Figure 5:
Comparison of the Hydrogen mass fraction as a function of luminosity
for CXO 1745-28 and the stellar population of the Arches cluster, with
symbols having the same meaning as in Fig. 4. To enable a direct comparison to
the Arches population the results from the Br |
Open with DEXTER |
Table 4: Summary of the stellar, orbital and, where determined, the X-ray properties of confirmed or candidate massive WNLh binary systems in the Galaxy and LMC.
Our classification of the primary in CXO J1745-28 as a WN9h star permits a more accurate comparison
to the properties of both single stars and known HMXBs and CWBs.
The ratio of X-ray to bolometric luminosity of CXO J1745-28 - log(
)
- is
significantly in excess of that observed for both single O and WR stars - log(
)
- where the
emission is thought to arise in shocks embedded in the stellar wind.
Recent work has shown that a number of O stars have measureable magnetic fields
(Donati et al. 2002, 2006; Hubrig et al. 2008; Bouret et al. 2008), thus
raising the possibility that the magnetically confined wind shock model of Babel &
Montmerle et al. (1997a,b) might be applicable and lead to the production of significant X-ray emission.
In Table 3 we summarise the X-ray properties of these stars as well as the Of?p star HD 108 (motivated by the
fact that the other three examples of Of?p stars all have detectable magnetic fields).
While these stars appear to show excess X-ray emission with respect to field O and WR stars (Table 3; Náze et al. 2007), the ratio of X-ray to bolometric luminosity is over an order of magnitude lower than CXO J1745-28, with the WN9ha star HD 152408 (=WR 79a) being significantly fainter still. Moreover, while the X-ray spectra of the magnetically active stars are also consistent with a multitemperature model, both cool and hot components are systematically cooler than found for CXO J1745-28 (Rauw et al. 2002; Gágne et al. 2005; Naze et al. 2004, 2007, 2008c). Finally, these stars demonstrate spectral variability attributed to an asymmetric circumstellar environment caused by the entrainment of the stellar wind by the magnetic field (e.g. Náze et al. 2008b). However, spectroscopy of CXO J1745-28 indicates there is no evidence for a departure from spherical symmetry, while no variability has currently been observed (Mikles et al. 2006, 2008). Therefore, we conclude that the X-ray emission in CXO J1745-28 most likely arises as a result of binarity.
Assuming the 189 d periodicity is orbital and a canonical
accretion efficiency
,
the wind properties imply a compact companion mass of
5
for a HMXB interpretation (Eq. (10); M08). Three HMXBs with moderately
evolved very massive companions are known;
4U1700-37, OAO1657-415 & GX301-2
.
All are more X-ray luminous than CX J1745-28; as expected, given
their smaller orbital separations. However their X-ray spectra - a power law with high energy cutoff, with no 6.7 keV
Fe XXV line (White et al.
1983; La Barbera et al. 2005; Audley et al. 2006) - are significantly different
.
Motivated by the similarity in X-ray properties of CXO J1745-28 to the CWBs
Carinae
(e.g. Pittard & Corcoran 2002) and Cyg OB2#8A (DeBecker et al. 2006), we summarise
the properties of WNLh CWBs in the Galaxy and Large Magellanic Cloud in Table 4.
While the X-ray luminosity of the sample is observed to range over more
than two orders of magnitude, WR25, BAT99-112 & 116 are
directly comparable to CXO J1745-28. Likewise, where it may
be determined, the emission from WNLh CWBs is significantly harder than
keV expected for shock emission in a single stellar wind (e.g. Oskinova
2005), and for both WR20a and WR25 a two component fit is required, as found for CXO J1745-28.
In addition to the comparable
X-ray luminosity and spectral components, WR25 is of particular interest given the presence of strong Fe XXV emission,
variable X-ray flux (Pollock & Corcoran 2006) and
a spectroscopically determined orbital period of
d (Raassen et al. 2003).
We consider these striking similarities as strong evidence for a CWB interpretation for CXO J1745-28.
However, one would like to identify further examples of such systems in order to cement such an interpretation.
Intriguingly, 3 of the 4 WN8-9h stars within the Arches (Table 4) which have X-ray detections
also demonstrate similarly strong Fe XXV emission to CXO J1745-28 (the fourth, F2, being too faint to
determine if this is the case). Spectral fits to these stars
require a hard component for either a one (Wang et al. 2006) or two (Yusef-Zadeh et al. 2002) temperature model,
with the resultant luminosities - 1033 erg s-1 and 1035 erg s-1 respectively - also directly comparable to
that of CXO J1745-28 under the same model assumptions. Given the similarity of the stellar+wind properties of
the Arches members to CXO J1745-28 (Sect 2.4 and Figs. 2, 4 and 5) we therefore conclude that these are
physically identical systems. This in turn provides additional support for a CWB interpretation. The
WN7-9ha stars within the Arches are the most massive stars present, and are at an age when it is not expected that
any stars will have been lost to SNe (Table 5). Consequently, it is not apparent that an HMXB interpretation is
possible on evolutionary grounds, still less since one would also have to conclude that the post SNe orbital configurations
for CXO J1745-28 and Arches F6, 7 & 9 would have to be
identical in order to reproduce their common X-ray
properties.
Under the hypothesis that CXO J1745-28 is a CWB can we draw any conclusions as to the nature of the hitherto
unseen companion? Given the absence of a radial velocity (RV) curve tailored hydrodynamical simulations are clearly
premature but it is possible to estimate bulk properties for the secondary. Initially, the strong shock jump
conditions (kT=(3/16)E km s-1. This is consistent
with the mean terminal velocity of mid-late O stars (Prinja et al. 1990), but not with
the W7-9h stars within the Arches (Martins et al. 2008), implying that a system consisting of twin
WNLh stars such as WR20a is not viable.
We may use the analytical expressions from Pittard & Stevens (2002) to estimate the X-ray flux for a
representative WN9h+mid O star binary to test the consistency of such an hypothesis. Assuming
(Sect. 2.4 and Fig. 4),
and an 189d period
we derive a binary separation of
cm. We first define the momentum ratio
of the two winds
.
Then the kinetic power
processed for each star is given by
,
where the fractional wind kinetic power
is a function of
.
With the properties of the primary from Table 2,
km s-1 and
in the range
yr-1 we find
and corresponding values for
and
(Pittard & Stevens 2002). Then we may estimate the intrinsic X-ray luminosity for
each star as
,
where the cooling efficiency,
,
takes the conversion
efficiency of kinetic wind power into radiation into account, and is given by
(where v8 is wind velocity in units of 1000 km s-1,
d12 is the distance from the star of the contact discontinuity in units of
1012 cm and
the mass loss rate in units of 10-7
yr-1). Note that if
it is set to 1.0 for the calculation of X-ray luminosity since one
may not radiate more energy than one has as input (Pittard, priv.
comm., 2009).
We estimate d12 from the results presented in Pittard & Stevens (2002) and then substituting the appropriate
values into the above relationships we find
erg s-1 and
and
erg s-1 for
yr-1. Therefore
we consider the X-ray luminosity of CXO J1745-28 to be broadly consistent with that expected from
a binary composed of a massive WN9h primary and a less evolved
mid O star secondary in a 189 d period orbit,
although a full hydrodynamical simulation would be required to extract accurate predictions for the properties of the
secondary (cf. Pittard & Corcoran 2002).
4 Discussion and concluding remarks
We present a tailored non-LTE analysis of the IR counterpart to the bright X-ray source CXO J1745-28, finding it to be a highly luminous, massive WN8-9h star, with physical parameters comparable to such stars in the Arches cluster. Furthermore, 3 of the 4 Arches members with X-ray detections - F6, 7 & 9 - also share remarkably similar X-ray fluxes and spectra to CXO J1745-28. While the near-IR spectra of these objects are consistent with originating in single stars, their X-ray properties clearly argue for binarity, with a comparison to known HMXBs and CWBs favouring the latter interpretation - indeed the Galactic WN6ha+? CWB system WR25 is a near twin of CXO J1745-28. Moreover, it appears difficult to reconcile both the youth and extreme mass inferred for CXO J1745-28 and the Arches sources with the requirement for a SN to have occurred in order to yield a relativistic companion - however we note that if they are HMXBs then they will provide a unique insight into the final stages of stellar evolution for the most massive stars that appear able to form in the local Universe.
Nevertheless, under either HMXB or CWB hypothesis these four systems
add to the growing population of binary WNLh stars in the galaxy and
LMC, which are summarised in Table 4 and currently consist of an additional 19 confirmed and 2 candidates.
With periods ranging from 1.9-208 d, the most compact binaries may be candidates for the Case M
evolution described by De Mink et al. (2009; in which tidal forces spin up the stars leading to significant rotational
mixing), while the long period systems have yet to encounter mass transfer, thus having evolved as single stars, but ones for
which dynamical mass estimates may be obtained.
In Table 5 we summarise the population of WNLh binaries in young massive clusters. This restricted population, rather than
the complete census, was chosen since it excludes candidates, such as CXO J1745-28, which have been identified as
WNLh stars because of their binary derived observational properties and hence would introduce a selection bias.
Thus, of the 31 WNLh stars for which a long term survey for RV variability has been performed, 14 have been
identified as binaries resulting in a binary fraction of 45%, which we consider a lower limit given the
lack of sensitivity of current RV surveys to long period systems (e.g. >200 d & >40 d for 30 Dor and R136
proper; Schnurr et al. 2008a, 2009b) and the additional X-ray selected candidates.
This is consistent with other surveys which find similarly high percentages for OB and
Wolf-Rayet stars, albeit for different samples of stars comprising either lower (Clark et al. 2008; Ritchie et al. 2009) or a wider range
of masses (Kobulnicky & Fryer 2007; Sana et al. 2008; Bosch et al. 2009). Such a binary fraction potentially presents important constraints on the formation mechanisms
for very massive stars such as CXO J1745-28 and the Arches population. Not only does (accretion driven)
radiation
pressure have to be overcome to yield 80
stars but within a short period of time either the formative processes
or another mechanism - such as dynamical interactions during cluster core collapse (S. Goodwin, priv. comm., 2009) - yields
significant numbers of very massive short period systems.
Table 5: Summary of confirmed and candidate WNLh binaries in young open clusters.
Finally, referencing the issues raised in the introduction, the extreme
mass inferred for CXO J1745-28, as well as the discovery of
similar stars such as WR102ka (Barniske et al. 2008) reinforces the supposition of e.g.
Mauerhan et al. (2007) that a diffuse, apparently isolated population of massive stars is found within the central
50pc of the Galactic centre in addition to the well know massive clusters. The origin of such stars is currently unclear;
at
17 pc the projected
distance of CXO J1745-28 from the Arches - the only known GC
cluster young enough for it to have formed in - appears uncomfortably
large to explain its location as a result of dynamical ejection
(implying a minimum travel time of 1.7 Myr for a velocity of
10 km s-1). Finally, as with other massive star forming regions such as 30 Dor
(Townsley et al. 2006), Wd 1 (Clark et al. 2008) and the
putative complex at the base of the Scutum-Crux Arm (Clark et al. 2009) there are currently no unambiguous
HMXB candidates within the Galactic Centre. Despite the high binary fractions inferred for massive stars within these regions,
the physical processes leading to the
production of neutron stars and black holes (binary mass transfer/common envelope evolution and supernovae) appear
inimical to the production and/or retention of X-ray bright HMXBs within their natal clusters/complexes.
J.S.C. acknowledges support from an RCUK fellowship, and thanks Julian Pittard, Ollie Schnurr, Selma de Mink, and Fabrice Martins for their invaluable help during the preparation of this manuscript and John Hillier for the use of his code.
References
- Asplund, M., Grevesse, N., Sauval, A. J., Allende Prieto, C., & Kiselman, D. 2004, A&A, 417, 751 [NASA ADS] [CrossRef] [EDP Sciences]
- Audley, M. D., Nagase, F., Mitsuda, K., Angelini, L., & Kelley, R. L. 2006, MNRAS, 367, 1147 [NASA ADS] [CrossRef]
- Babel, J., & Montmerle, T. 1997a, ApJ, 485, L29 [NASA ADS] [CrossRef]
- Babel, J., & Montmerle, T. 1997b, A&A, 323, 121 [NASA ADS]
- Barniske, A., Oskinova, L. M., & Hamann, W.-R. 2008, A&A, 486, 971 [NASA ADS] [CrossRef] [EDP Sciences]
- Benaglia, P., Romeroa, G. E., Koribalski, B., & Pollock, A. M. T. 2005, A&A, 440, 743 [NASA ADS] [CrossRef] [EDP Sciences]
- Bohannan, B., & Crowther, P. A. 1999, ApJ, 511, 374 [NASA ADS] [CrossRef]
- Bosch, G., Terlevich, R., Melnick, J., & Selman, F. 1999, A&AS, 137, 21 [NASA ADS] [CrossRef] [EDP Sciences]
- Bosch, G., Terlevich, E., & Terlevich, R. 2009, AJ, 137, 3437 [NASA ADS] [CrossRef]
- Bouret, J.-C., Donati, J.-F., Martins, F., et al. 2008, MNRAS, 389, 75 [NASA ADS] [CrossRef]
- Casali, M., Adamson, A., & Alves de Oliviera, C. 2007, A&A, 467, 777 [NASA ADS] [CrossRef] [EDP Sciences]
- Clark, J. S., Goodwin, S. P., Crowther, P. A., et al. 2002, A&A, 392, 909 [NASA ADS] [CrossRef] [EDP Sciences]
- Clark, J. S., Muno, M. P., Negueruela, I., et al. 2008, A&A, 477, 147 [NASA ADS] [CrossRef] [EDP Sciences]
- Clark, J. S., Negueruela, I., & Davies, B. 2009, A&A, 498, 109 [NASA ADS] [CrossRef] [EDP Sciences]
- Cotera, A. S., Erickson, E. F., Colgan, S. W. J., et al. 1996, ApJ, 461, 750 [NASA ADS] [CrossRef]
- Cox, A. 2000, Allen's Astrophysical Quantities
- Crowther, P. A., & Dessart, L. 1998, MNRAS, 296, 622 [NASA ADS] [CrossRef]
- Crowther, P. A., Hadfield, L. J., Clark, J. S., Negueruela, I., & Vacca, W., D. 2006, MNRAS, 372, 1407 [NASA ADS] [CrossRef]
- Cui, W., Feng, Y. X., Zhang, S. N., et al. 2002, ApJ, 576, 357 [NASA ADS] [CrossRef]
- DeBecker, M., Rauw, G., Sana, H., et al. 2006, MNRAS, 371, 1280 [NASA ADS] [CrossRef]
- De Mink, S. E., Cantiello, M., Langer, N., et al. 2009, A&A, 497, 243 [NASA ADS] [CrossRef] [EDP Sciences]
- Donati, J.-F., Babel, J., Harries, T. J., et al. 2002, MNRAS, 333, 55 [NASA ADS] [CrossRef]
- Donati, J.-F., Howarth, I. D., Bouret, J.-C., et al. 2006, MNRAS, 365, L6 [NASA ADS]
- Drissen, L., Lamontagne, R., Moffat, A. F. J., Bastien, P., & Seguin, M., 1986, ApJ, 304, 188 [NASA ADS] [CrossRef]
- Figer, D. F., Morris, M., & McLean, I. S. 1996, ASPC, 102, 263 [NASA ADS]
- Figer, D. F., Najarro, F., & Gilmore, D. 2002, ApJ, 581, 258 [NASA ADS] [CrossRef]
- Gagné, M., Oksala, M. E., Cohen, D. H., et al. 2005, ApJ, 628, 986 [NASA ADS] [CrossRef]
- Gamen, R., Gosset, E., Morrell, N., et al. 2006, A&A, 460, 777 [NASA ADS] [CrossRef] [EDP Sciences]
- Gosset, E., Rauw, G., Vreux, J.-M., et al. 2003, IUAS, 212, 188
- Hamann, W. R., Grafener, G., & Liermann, A. 2006, A&A, 457, 1015 [NASA ADS] [CrossRef] [EDP Sciences]
- Hewett, P. C., Warren, S. J., Leggett, S. K., & Hodgkin, S. T. 2006, MNRAS, 367, 454 [NASA ADS] [CrossRef]
- Hillier, D. J., & Miller, D. L. 1998, ApJ, 496, 407 [NASA ADS] [CrossRef]
- Hillier, D. J., & Miller, D. L. 1999, ApJ, 519, 354 [NASA ADS] [CrossRef]
- Hillier, D. J., Lanz, T., Heap, S. R., et al. 2003, ApJ, 588, 1039 [NASA ADS] [CrossRef]
- Hodgkin, S. T., Irwin, M. J., Hewett, P. C., & Warren, S. J. 2009, MNRAS, 394, 675 [NASA ADS] [CrossRef]
- Hubrig, S., Scholler, M., Schnerr, R. S., et al. 2008, A&A, 490, 793 [NASA ADS] [CrossRef] [EDP Sciences]
- Ignace, R., Oskinova, L. M., & Foullon, C. 2000, MNRAS, 318, 214 [NASA ADS] [CrossRef]
- Indebetouw, R., Mathis, J. S., & Babler, B. L. 2005, ApJ, 619, 931 [NASA ADS] [CrossRef]
- Kaper, L., van der Meer, A., & Najarro, F. 2006, A&A, 457, 505 [NASA ADS] [CrossRef]
- Kim, S. S., Figer, D. F., Kudritzki, R. P., & Najarro, F. 2006, ApJ, 653, L113 [NASA ADS] [CrossRef]
- Kobulnicky, H. A., & Fryer, C. L. 2007, ApJ, 670, 747 [NASA ADS] [CrossRef]
- Krabbe, A., Genzel, R., Eckart, A., et al. 1995, APJ, 447, L95 [NASA ADS] [CrossRef]
- La Barbera, A., Segreto, A., Santangelo, A., Kreykenbohm I., & Orlandini, M. 2005, A&A, 438, 617 [NASA ADS] [CrossRef] [EDP Sciences]
- Lamontagne, R., Moffat, A. F. J., Drissen, L., et al. 1996, AJ, 112, 2227 [NASA ADS] [CrossRef]
- Lanz, T., & Hubeny, I. 2003, ApJS, 146, 417 [NASA ADS] [CrossRef]
- Lawrence, A., Warren, S. J., Almaini, O., et al. 2007, MNRAS, 379, 1599 [NASA ADS] [CrossRef]
- Martins, F., & Plez, B. 2006, A&A, 457, 637 [NASA ADS] [CrossRef] [EDP Sciences]
- Martins, F., Schaerer, D., & Hillier, D. J. 2005, A&A, 441, 735 [NASA ADS] [CrossRef] [EDP Sciences]
- Martins, F., Hillier, D. J., & Paumard, T. 2008, A&A, 478, 219 [NASA ADS] [CrossRef] [EDP Sciences]
- Mason, A. B., Clark, J. S., Norton, A. J., Negueruela, I., & Roche, P. 2009, A&A, 505, 281 [CrossRef] [EDP Sciences]
- Mauerhan, J. C., Muno, M. P., & Morris, M. 2007, ApJ, 662, 574 [NASA ADS] [CrossRef]
- Meynet, G., & Maeder, A. 2000, A&A, 361, 101 [NASA ADS]
- Mikles, V. J., Eikenberry, S. S., Muno, M. P., Bandyopadhyay, R. M., & Patel, S. 2006, ApJ, 651, 408 [NASA ADS] [CrossRef]
- Mikles, V. J., Eikenberry, S. S., Bandyopadhyay, R. M., & Muno, M. P. 2008, ApJ, 689, 1222 [NASA ADS] [CrossRef]
- Moffat, A. F. J. 2008, RMxAC, 33, 95 [NASA ADS]
- Moffat, A. F. J., Corcoran, M. F., Stevens, I. R., et al. 2002, ApJ, 573, 191 [NASA ADS] [CrossRef]
- Moffat, A. F. J., Poitras, V., Marchenko, S. V., et al. 2004, AJ, 128, 2854 [NASA ADS] [CrossRef]
- Montes, G., Perez-Torres, M. A., Alberdi, A., & Gonzalez, R. F. 2009, ApJ, 705, 899 [CrossRef]
- Morris, P. W., van der Hucht, K. A., & Crowther, P. A. 2000, A&A, 353, 624 [NASA ADS]
- Muno, M. P., Bauer, F. E., Bandyopadhyay, R. M., & Wang, Q. D. 2006a, ApJS, 165, 173 [NASA ADS] [CrossRef]
- Muno, M. P., Bower, G. C., Burgasser, A. J., et al. 2006b, ApJ, 638, 183 [NASA ADS] [CrossRef]
- Muno, M. P., Bauer, F. E., & Baganoff, F. K. 2009, ApJS, 181, 110 [NASA ADS] [CrossRef]
- Nagata, T., Woodward, C. E., Shure, M., & Kobayashi, N. 1995, AJ, 109, 1676 [NASA ADS] [CrossRef]
- Náze, Y., Rauw, G., Vreux, J.-M., & DeBecker, M. 2004, A&A, 417, 667 [NASA ADS] [CrossRef] [EDP Sciences]
- Náze, Y., Rauw, G., Pollock, A. M. T., Walborn N. R., & Howarth, I. D. 2007, MNRAS, 375, 145 [NASA ADS] [CrossRef]
- Náze, Y., Rauw, G., & Manfroid, J. 2008b, A&A, 483, 171 [NASA ADS] [CrossRef] [EDP Sciences]
- Náze, Y., Walborn, N. R., & Martins, F. 2008b, RMxAA, 44, 331 [NASA ADS]
- Náze, Y., Walborn, N. R., Rauw, G., et al. 2008c, AJ, 135, 1946 [NASA ADS] [CrossRef]
- Niemela, V. S., Gamen, R. C., Barba, R. H., et al. 2008, MNRAS, 389, 1447 [NASA ADS] [CrossRef]
- Oskinova, L. M. 2005, MNRAS, 361, 679 [NASA ADS] [CrossRef]
- Pittard, J. M., & Corcoran, M. F. 2002, A&A, 383, 636 [NASA ADS] [CrossRef] [EDP Sciences]
- Pittard, J. M., & Stevens. I. R. 2002, A&A, 388, L20 [NASA ADS] [CrossRef] [EDP Sciences]
- Pollock, A. M. T., ApJ, 320, 283
- Pollock, A. M. T., & Corcoran, M. F. 2006, A&A, 1093
- Pollock, A. M. T., Haberl, F., & Corcoran, M. F. 1995, IAUS, 163, 522 [NASA ADS]
- Prinja, R. K., Barlow, M. J., & Howarth, I. D. 1990, ApJ, 361, 607 [NASA ADS] [CrossRef]
- Portegies Zwart, S. F., Pooley, D., & Lewin, W. H. G. 2002, ApL, 574, 762
- Raassen, A. J. J., van der Hucht, K. A., & Mewe, R. 2003, A&A, 402, 653 [NASA ADS] [CrossRef] [EDP Sciences]
- Raassen, A. J. J., van der Hucht, K. A., Miller, N. A., & Cassinelli, J. P. 2008, A&A, 478, 513 [NASA ADS] [CrossRef] [EDP Sciences]
- Rauw, G., Vreux, J.-M., Gosset, E., et al. 1996, A&A, 306, 771 [NASA ADS]
- Rauw, G., Blomme, R., Walborn, W. L., et al. 2002, A&A, 394, 993 [NASA ADS] [CrossRef] [EDP Sciences]
- Rauw, G., Crowther, P. A., De Becker, M., et al. 2005, A&A, 432, 985 [NASA ADS] [CrossRef] [EDP Sciences]
- Rayner, J. T., Toomey, D. W., Onaka, P. M., et al. 2003, PASP, 115, 362 [NASA ADS] [CrossRef]
- Reid, M. J. 1993, ARA&A, 31, 345 [NASA ADS] [CrossRef]
- Ritchie, B. W., Clark, J. S., Negueruela, I., & Crowther, P. A. 2009, A&A, 507, 1585 [CrossRef] [EDP Sciences]
- Sana, H., Gosset, E., Naze, Y., Rauw, G, & Linder, N. 2008, MNRAS, 386, 447 [NASA ADS] [CrossRef]
- Schnurr, O., Moffat, A. F. J., St-Louis, N., Morrell, N. I., & Guerrero, M. A. 2008a, MNRAS, 389, 806 [NASA ADS] [CrossRef]
- Schnurr, O., Casoli, J., Chene, A.-N., Moffat, A. F. J., & St-Louis, N. 2008b, MNRAS, 389, L38 [NASA ADS] [CrossRef]
- Schnurr, O., Moffat, A. F. J., Villar-Sbaffi, A., St-Louis, N., & Morrell, N. I. 2009a, MNRAS, 395, 823 [NASA ADS] [CrossRef]
- Schnurr, O., Chene, A.-N., Casoli, J., Moffat, A. F. J., & St-Louis, N. 2009b, MNRAS, submitted
- Schweickhardt, J., Schmutz, W., Stahl, O., Szeifert, Th, & Wolf, B. 1999, A&A, 347, 127 [NASA ADS]
- Stevens, I. R., Blondon, J. M., & Pollock, A. M. T. 1992, ApJ, 386, 265 [NASA ADS] [CrossRef]
- Townsley, L. K., Broos, P. S., Feigelson, E. D., Garmire, G. P., & Getman, K. V. 2006, AJ, 131, 2164 [NASA ADS] [CrossRef]
- Tsujimoto, M., Feigelson, E. D., & Townsley, L. K. 2007, ApJ, 665, 719 [NASA ADS] [CrossRef]
- Yusef-Zadeh, F., Law C., Wardle, M., et al. 2002, ApJ, 570, 665 [NASA ADS] [CrossRef]
- Walborn, N. R. 1982, ApJ, 256, 452 [NASA ADS] [CrossRef]
- Walborn, N. R., & Blades, J. C. 1997, ApJS, 112, 457 [NASA ADS] [CrossRef]
- Wang, Q. D., Dong, H., & Lang, C. 2006, MNRAS, 371, 38 [NASA ADS] [CrossRef]
- White, N. E., Kallman, T. R., & Swank, J. H. 1983, ApJ, 269, 264 [NASA ADS] [CrossRef]
Footnotes
- ... distance
- Martins et al. (2008) adopted a distance of 7.6 kpc to the Arches cluster, a K-band extinction of 2.8 mag and F205W photometry from Figer et al. (2002).
- ... GX301-2
- 4U1700-37 - O6.5 Iaf+,
d (Clark et al. 2002); OAO1657-415 - WN9-11h,
d (Mason et al. 2009); GX301-2 - B hypergiant,
d (Kaper et al. 2006).
- ... different
- The accretors in GX301-2 and OAO1657-415 are pulsars, while the nature of 4U1700-37 is uncertain; however for the persistent Black Hole systems such as Cyg X-1 a composite multitemperature disc+power law spectrum is typically observed (e.g. Cui et al. 2002), which also appears to differ from CXO J1745-28.
All Tables
Table 1: UKIDSS near-IR photometry, extinction and absolute magnitude determinations for an assumed distance of 8 kpc to CXO J1745-28 (Reid 1993).
Table 2: Derived physical and wind parameters for CXO J1745-28 (WN9h) for CWB and HMXB scenarios.
Table 3: Summary of the properties of CXO J17545-28 in comparison to magnetic O and WR and Of?p stars.
Table 4: Summary of the stellar, orbital and, where determined, the X-ray properties of confirmed or candidate massive WNLh binary systems in the Galaxy and LMC.
Table 5: Summary of confirmed and candidate WNLh binaries in young open clusters.
All Figures
![]() |
Figure 1: Reddened model spectral energy distribution (SED) of CXO J1745-28 (solid line, EB-V = 9.6) and intrinsic SED (dotted line) overlaid upon IR photometry from UKIDSS. |
Open with DEXTER | |
In the text |
![]() |
Figure 2: K-band spectroscopy of CXO J1745-28 from M06 together with morphologically similar WN9h stars from the Arches cluster (F2, F6 and F7) plus the weaker lined WN9h star F9 which is X-ray bright, as are F6 and F7. The VLT/SINFONI Arches spectroscopy is from Martins et al. (2008). |
Open with DEXTER | |
In the text |
![]() |
Figure 3:
H and K band IRTF/SpeX observations of
CXO J1745-28 from M06 (black)
with our Br |
Open with DEXTER | |
In the text |
![]() |
Figure 4:
HR diagram indicating the position of CXO J1745-28
(filled symbol) and the WN7-9ha
and O4-6I members of the Arches cluster (open symbols; Martins et al.
2008), with the luminosity of Arches members revised downwards by 0.05dex
as described in Sect. 2.4. The Geneva evolutionary tracks for rotating (
|
Open with DEXTER | |
In the text |
![]() |
Figure 5:
Comparison of the Hydrogen mass fraction as a function of luminosity
for CXO 1745-28 and the stellar population of the Arches cluster, with
symbols having the same meaning as in Fig. 4. To enable a direct comparison to
the Arches population the results from the Br |
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
