<h2 class="sec"><a name="SECTION000110000000000000000"></a>Appendix
A: Appendix</h2>
<br>
We report in this Appendix the analogous of Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#diagn">1</a> (the
spectroscopic diagnostic diagrams), Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#fcfha">2</a> (left panel) (H<IMG SRC="img2.png" ALT="$\alpha $" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="11">
flux
vs. the continuum at the H<IMG SRC="img2.png" ALT="$\alpha $" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="11">
line), Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#dn4000">3</a>
(concentration index
vs. 4000&nbsp;&#xc5; break), Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#SFGselection">6</a> (<i>D</i><sub><i>n</i></sub><!-- MATH: $L_{\rm {1.4~GHz}}$ -->(4000)
vs. <IMG SRC="img62.png" ALT="$L_{\rm 1.4~GHz}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="46">/<i>M</i><sub>*</sub>),
Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#histombh">9</a>
(distributions of the SMBH masses for
each spectroscopic class), and Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#lextlo3">7</a> (total radio
power
vs. [O&nbsp;III] luminosities) for the&nbsp;objects with
redshift 0.1&lt;<i>z</i>&lt;0.3.
<p></p><div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="diagnhz"></A><!-- end Label--><A NAME="1670"></A><A NAME="figure1439" HREF="img96.png"><IMG SRC="Timg96.png" ALT="\begin{figure}
\par\includegraphics[angle=90,width=15cm,clip]{14446fa1.epsi}
\end{figure}" HEIGHT="78" WIDTH="170"></A><!-- HTML Figure number: 14 -->
</td>

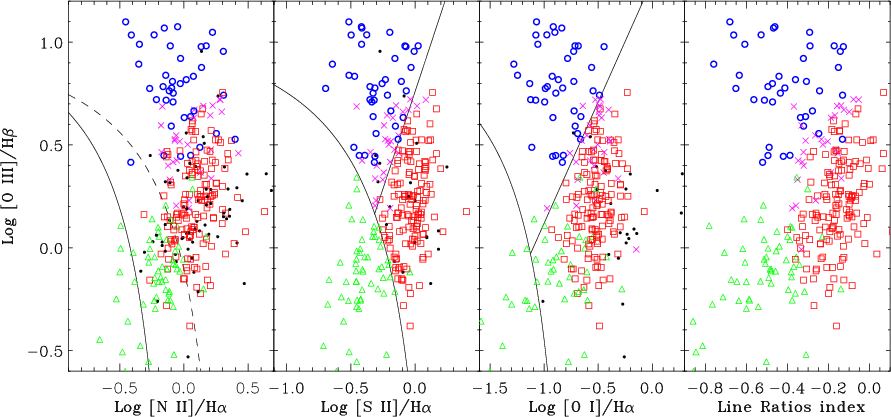

<td class="img-txt"><span class="bold">Figure A.1:</span><p>
Spectroscopic diagnostic diagrams for the&nbsp;objects with
0.1&lt;<i>z</i>&lt;0.3, with the same structure and
symbols as Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#diagn">1</a>.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=14&DOI=10.1051/0004-6361/201014446" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p></p><div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="allhz1"></A><!-- end Label--><A NAME="1715"></A><A NAME="figure1445" HREF="img98.png"><IMG SRC="Timg98.png" ALT="\begin{figure}
\par {
\includegraphics[scale=0.4,angle=90]{14446fa2a.epsi}\inclu...
...46fa2c.epsi}\includegraphics[scale=0.4,angle=90]{14446fa2d.epsi} }\end{figure}" HEIGHT="162" WIDTH="166"></A><!-- HTML Figure number: 15 -->
</td>

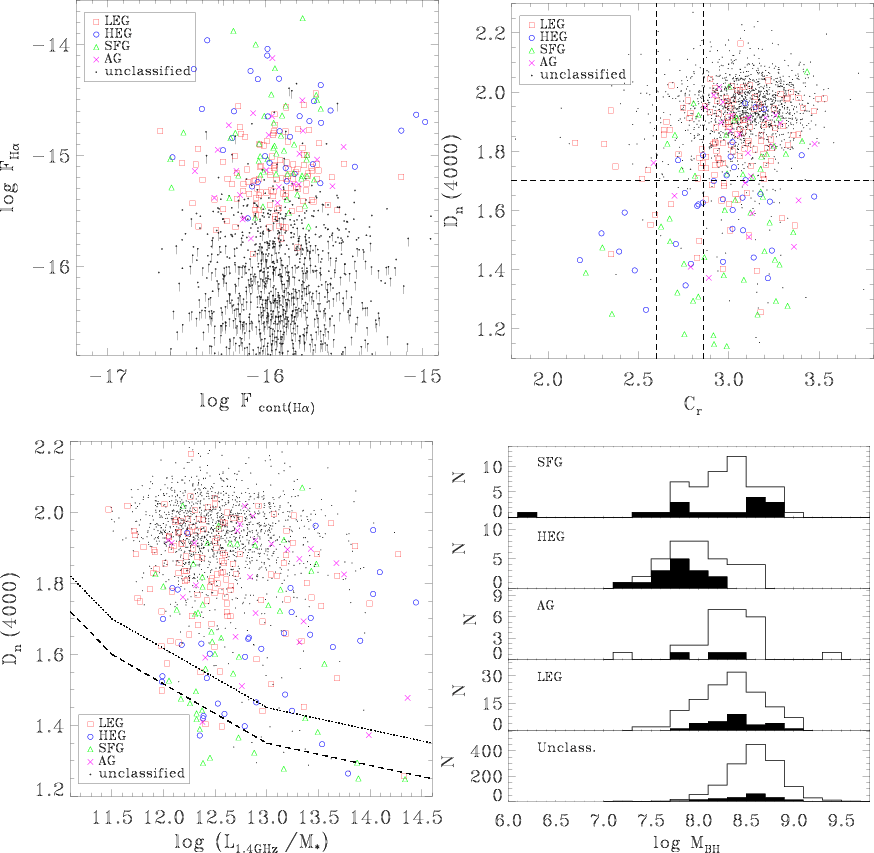

<td class="img-txt"><span class="bold">Figure A.2:</span><p>
Analogous of Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#fcfha">2</a>
(<i> left panel</i>), Figs.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#dn4000">3</a>,&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#SFGselection">6</a>,
and&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#histombh">9</a>
for the higher redshift &nbsp;objects (0.1&lt;<i>z</i>&lt;0.3)
i.e.: (<i> upper left panel</i>) logarithm of the H<IMG SRC="img2.png" ALT="$\alpha $" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="11">
flux versus logarithm of the continuum at the H<IMG SRC="img2.png" ALT="$\alpha $" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="11">
line (in&nbsp;erg&nbsp;s<sup>-1</sup> and
erg&nbsp;s<sup>-1</sup>&nbsp;&#xc5;<sup>-1</sup>
units respectively); (<i> upper right panel</i>)
concentration index <i>C</i><sub><i>r</i></sub>
vs. 4000&nbsp;&#xc5; break; (<i> lower left panel</i>)<!-- MATH: $D_{n}(4000)$ --> <i>D</i><sub><i>n</i></sub>(4000)
vs.<!-- MATH: $L_{1.4~{\rm GHz}}/M_{*}$ --> <IMG SRC="img97.png" ALT="$L_{1.4~{\rm GHz}}/M_{*}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="70">;
(<i> lower right panel</i>) distributions of the<!-- MATH: $M_{\rm BH}$ --> <IMG SRC="img10.png" ALT="$M_{\rm BH}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="29">
(in solar units) for the various spectroscopic classes. The filled
portion of the histograms represent the contribution of galaxies with <i>C</i><sub><i>r</i></sub>&lt;2.86.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=15&DOI=10.1051/0004-6361/201014446" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p></p><div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="allhz3"></A><!-- end Label--><A NAME="1716"></A><A NAME="figure1470" HREF="img99.png"><IMG SRC="Timg99.png" ALT="\begin{figure}
\par\includegraphics[angle=90,width=14cm,clip]{14446fa3.epsi}
\end{figure}" HEIGHT="120" WIDTH="158"></A><!-- HTML Figure number: 16 -->
</td>

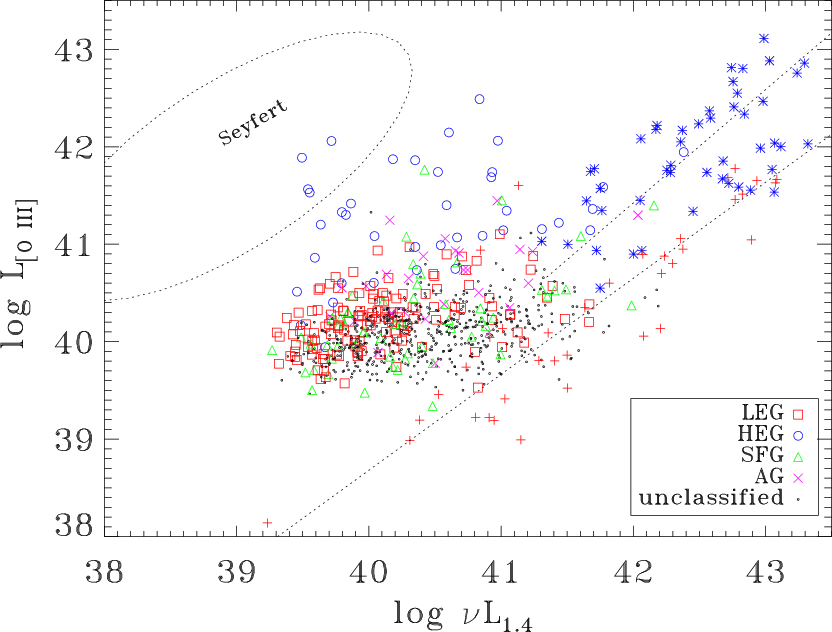

<td class="img-txt"><span class="bold">Figure A.3:</span><p>
Analogous of Fig.&nbsp;<a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#lextlo3">7</a>
for the higher redshift&nbsp;objects (0.1&lt;<i>z</i>&lt;0.3)
i.e. logarithm of radio power<!-- MATH: $L_{1.4~{\rm GHz}}$ --> <IMG SRC="img66.png" ALT="$L_{1.4~
\rm {GHz}}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="46">
vs. [O&nbsp;III] luminosities. For more clarity the large number of
upper limits in<!-- MATH: $L_{\rm
[O~III]}$ --> <IMG SRC="img63.png" ALT="$L_{\rm [O~III]}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="39">
are not shown. The two dashed lines reproduce the line-radio
correlation followed by the LEG and HEG of the 3CR sample (red plusses
and blue asterisks respectively). The ellipse marks the boundaries of
the location of Seyfert galaxies (e.g. <a href="/articles/aa/full_html/2010/11/aa14446-10/aa14446-10.html#whittle85">Whittle 1985</a>).
