Heavy coronal ions in the heliosphere - I. Global distribution of charge-states of C, N, O, Mg, Si, and S

Home

All issues

Volume 512 (March-April 2010)

A&A, 512 (2010) A72

Online Material

Free Access

Issue		A&A Volume 512, March-April 2010


Article Number		A72
Number of page(s)		22
Section		The Sun
DOI		https://doi.org/10.1051/0004-6361/200809900
Published online		07 April 2010

Online Material

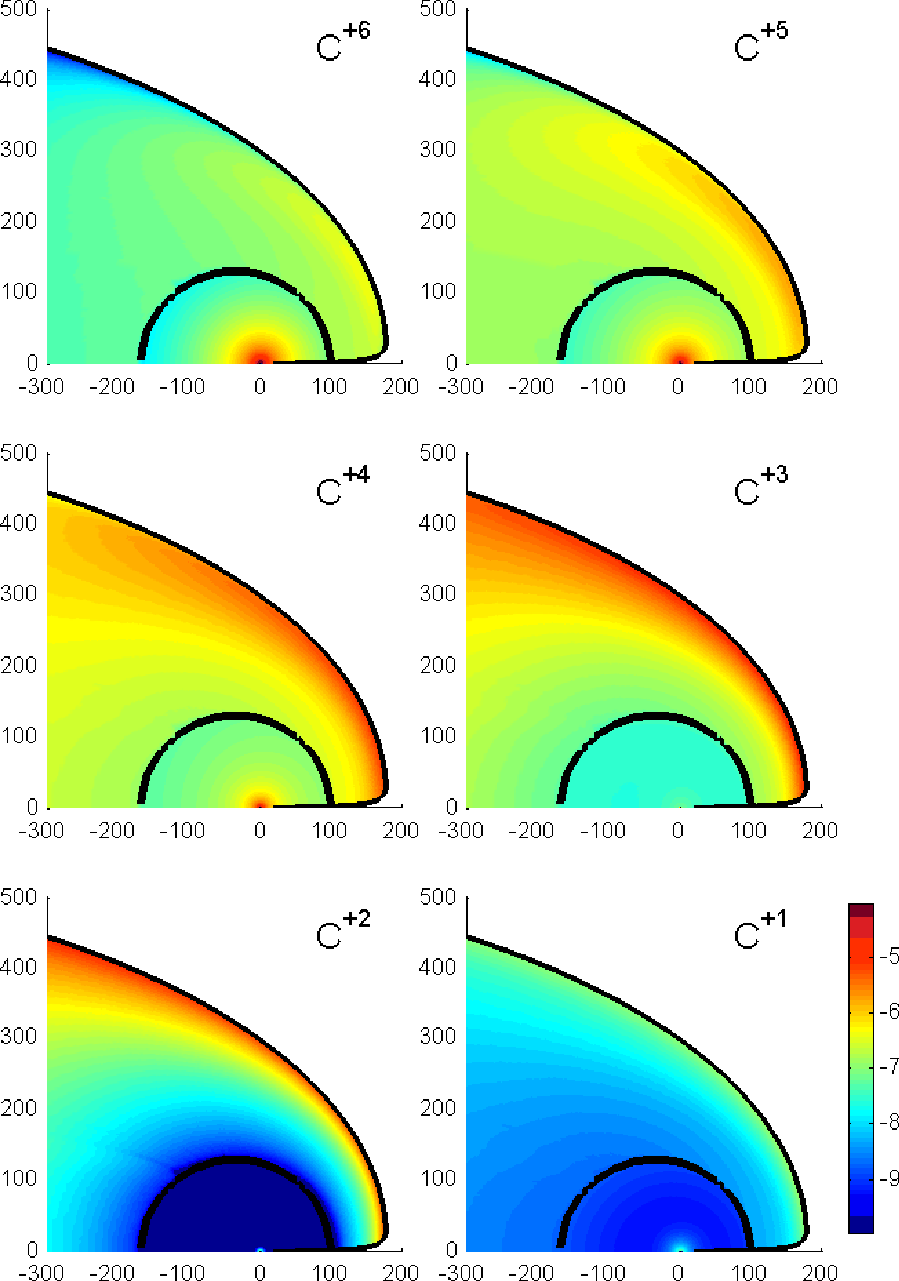

$\begin{figure} \par\includegraphics[width=16cm,clip]{09900f06.eps} \end{figure}$	Figure 6: Heliospheric maps of density distributions (ions/cm³) of carbon ions in various ionization states under isotropization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

$\begin{figure} \par\includegraphics[width=14cm,clip]{09900f07.eps} \end{figure}$	Figure 7: Heliospheric maps of density distributions (ions/cm³) of nitrogen ions in various ionization states under isotropization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

$\begin{figure} \par\includegraphics[width=16.5cm,clip]{09900f08.eps} \end{figure}$	Figure 8: Heliospheric maps of density distributions (ions/cm³) of magnesium ions in various ionization states under isotropization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

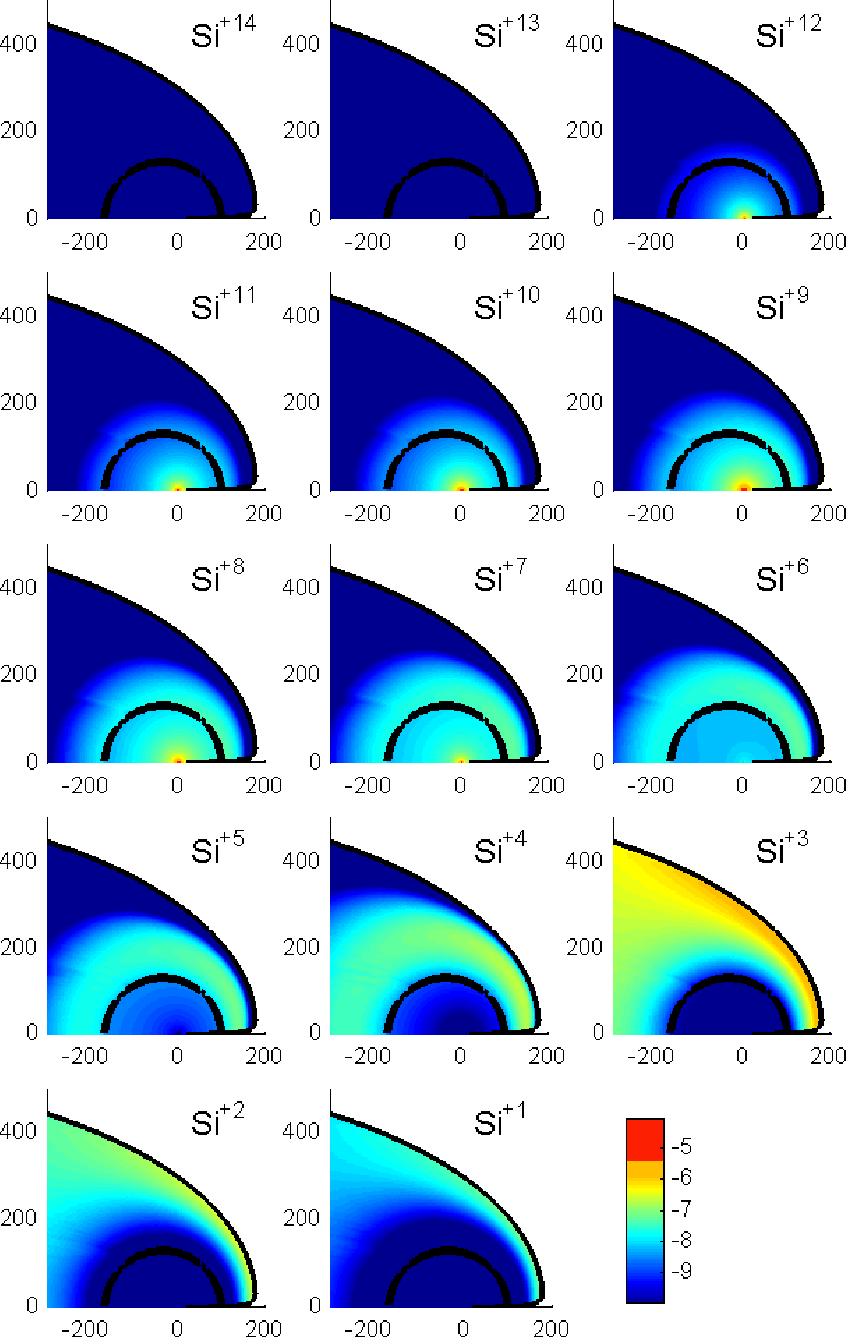

$\begin{figure} \par\includegraphics[width=15cm,clip]{09900f09.eps} \end{figure}$	Figure 9: Heliospheric maps of density distributions (ions/cm³) of silicon ions in various ionization states under isotropization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

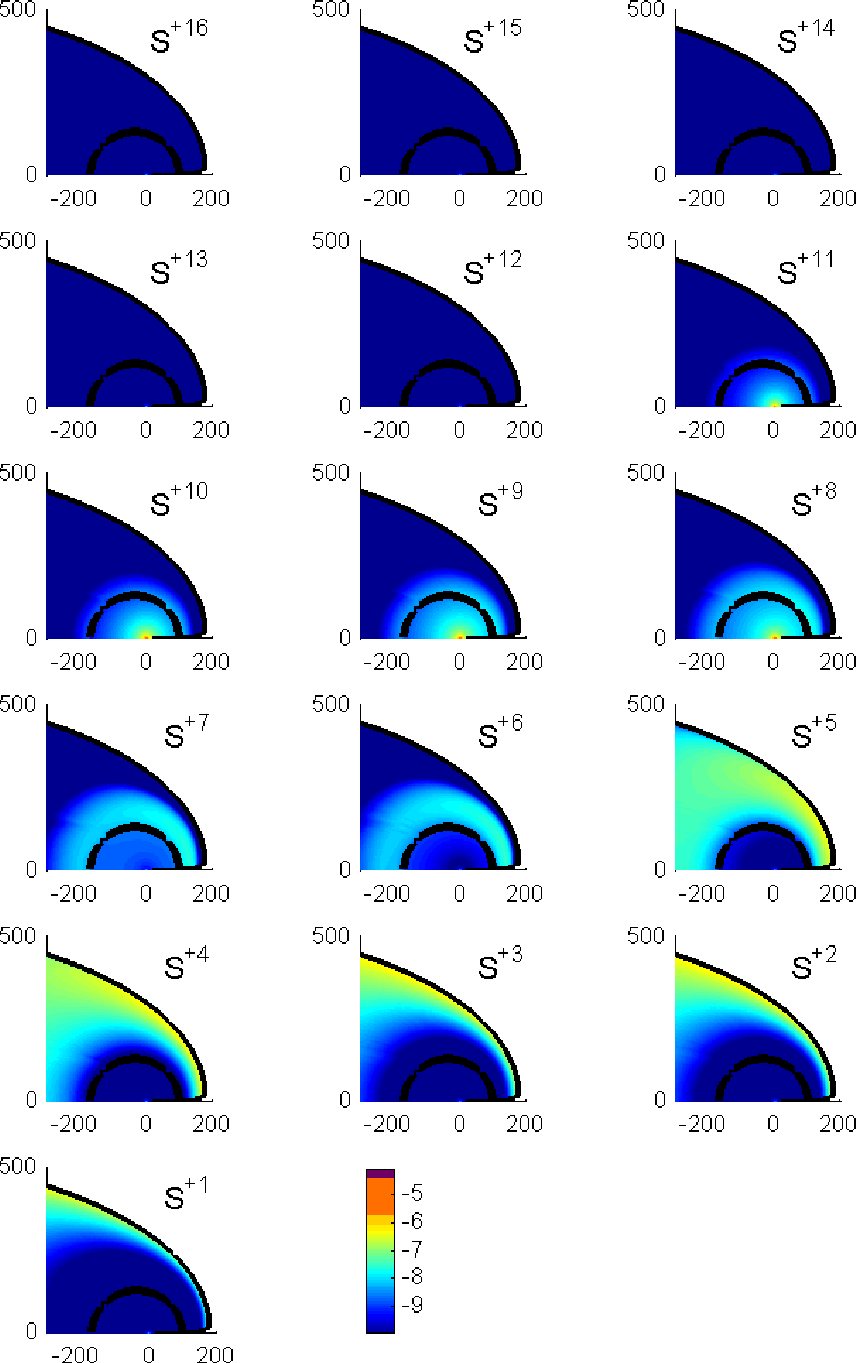

$\begin{figure} \par\includegraphics[width=15cm,clip]{09900f10.eps} \end{figure}$	Figure 10: Heliospheric maps of density distributions (ions/cm³) of sulfur ions in various ionization states under isotropization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

$\begin{figure} \par\includegraphics[width=16cm,clip]{09900f11.eps}\vspace*{3mm} \end{figure}$	Figure 11: Heliospheric maps of density distributions (ions/cm³) of carbon ions in various ionization states under thermalization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

$\begin{figure} \par\includegraphics[width=14cm,clip]{09900f12.eps} \end{figure}$	Figure 12: Heliospheric maps of density distributions (ions/cm³) of nitrogen ions in various ionization states under thermalization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

$\begin{figure} \par\includegraphics[width=16cm,clip]{09900f13.eps}\vspace*{4mm} \end{figure}$	Figure 13: Heliospheric maps of density distributions (ions/cm³) of magnesium ions in various ionization states under thermalization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

$\begin{figure} \par\includegraphics[width=15cm,clip]{09900f14.eps} \end{figure}$	Figure 14: Heliospheric maps of density distributions (ions/cm³) of silicon ions in various ionization states under thermalization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

$\begin{figure} \par\includegraphics[width=15cm,clip]{09900f15.eps} \end{figure}$	Figure 15: Heliospheric maps of density distributions (ions/cm³) of sulfur ions in various ionization states under thermalization condition (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER

$\begin{figure} \par\includegraphics[width=14.5cm,clip]{09900f16.eps} \end{figure}$	Figure 16: Heliospheric maps of density distributions (ions/cm³) of carbon ions in various ionization states of carbon for post-shock heavy ion random speed in the heliosheath equal to 170 km s^-1 (density coding as in Fig. 2). (Scale in AU on both axes.)
Open with DEXTER
