<h2 class="sec"><a name="SECTION00090000000000000000"></a>
Appendix A: Parameter evolution
</h2>

 In Figs.&nbsp;<a href="/articles/aa/full_html/2009/42/aa12044-09/aa12044-09.html#Fig5">A.1</a>-<a href="/articles/aa/full_html/2009/42/aa12044-09/aa12044-09.html#Fig18">A.14</a> we report the evolution of the flare activity, total magnetic flux&nbsp;
<!-- MATH: $\Phi_{\rm tot}$ -->
<IMG SRC="img2.png" ALT="$\Phi _{\rm tot}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="24">,
generalized fractal dimension&nbsp;<i>D</i><sub>8</sub>, contribution diversity&nbsp;<IMG SRC="img3.png" ALT="$C_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">,
dimensional diversity&nbsp;<IMG SRC="img4.png" ALT="$D_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">
and volume occupied by the potentially unstable regions&nbsp;<i>I</i><sub><i>v</i></sub> for each of the 14&nbsp;superactive regions.

<p></p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig5"></A><!-- end Label--><A NAME="923"></A><A NAME="figure718" HREF="img50.png"><IMG SRC="Timg50.png" ALT="\begin{figure}
\par\includegraphics[height=14cm]{12044f29.ps}
\end{figure}" HEIGHT="158" WIDTH="149"></A><!-- HTML Figure number: 6 -->
</td>

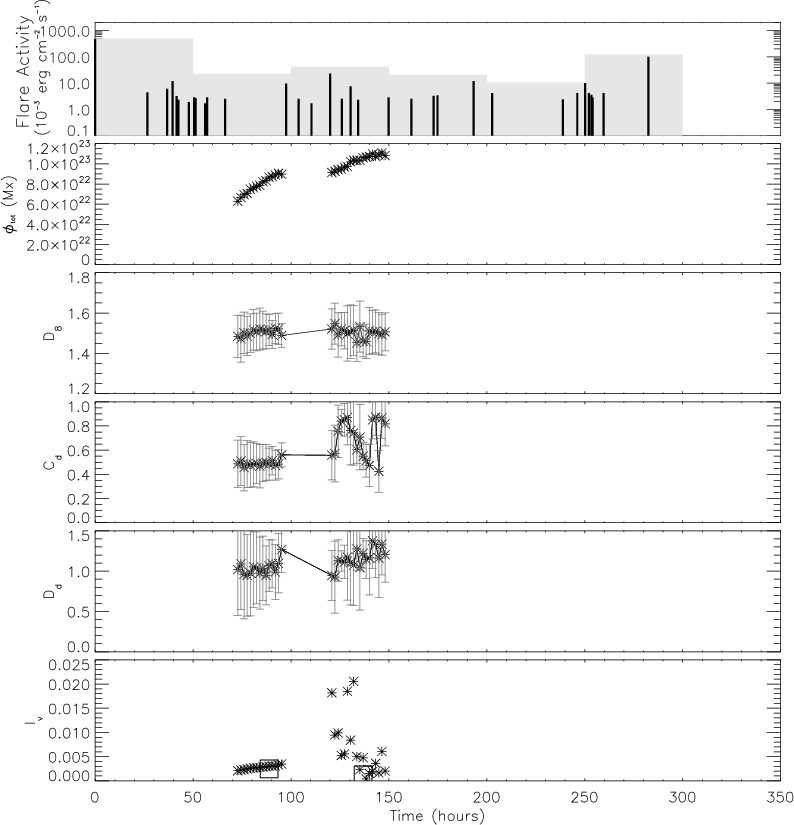

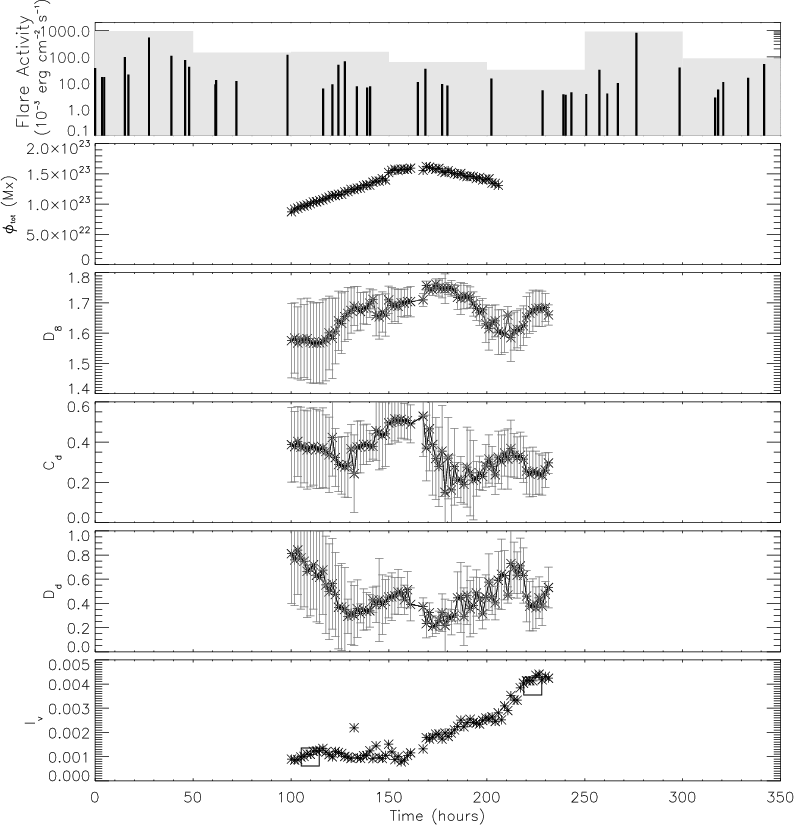

<td class="img-txt"><span class="bold">Figure A.1:</span><p>
Flare activity,
<!-- MATH: $\Phi_{\rm tot}$ -->
      <IMG SRC="img2.png" ALT="$\Phi _{\rm tot}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="24">,
      <i>D</i><sub>8</sub>, <IMG SRC="img3.png" ALT="$C_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">,
      <IMG SRC="img4.png" ALT="$D_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">
and <i>I</i><sub><i>v</i></sub>&nbsp;vs. time for NOAA&nbsp;9026.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=6&DOI=10.1051/0004-6361/200912044" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>

<p></p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig6"></A><!-- end Label--><A NAME="924"></A><A NAME="figure726" HREF="img51.png"><IMG SRC="Timg51.png" ALT="\begin{figure}
\par\includegraphics[height=14cm]{12044f28.ps}
\end{figure}" HEIGHT="158" WIDTH="153"></A><!-- HTML Figure number: 7 -->
</td>

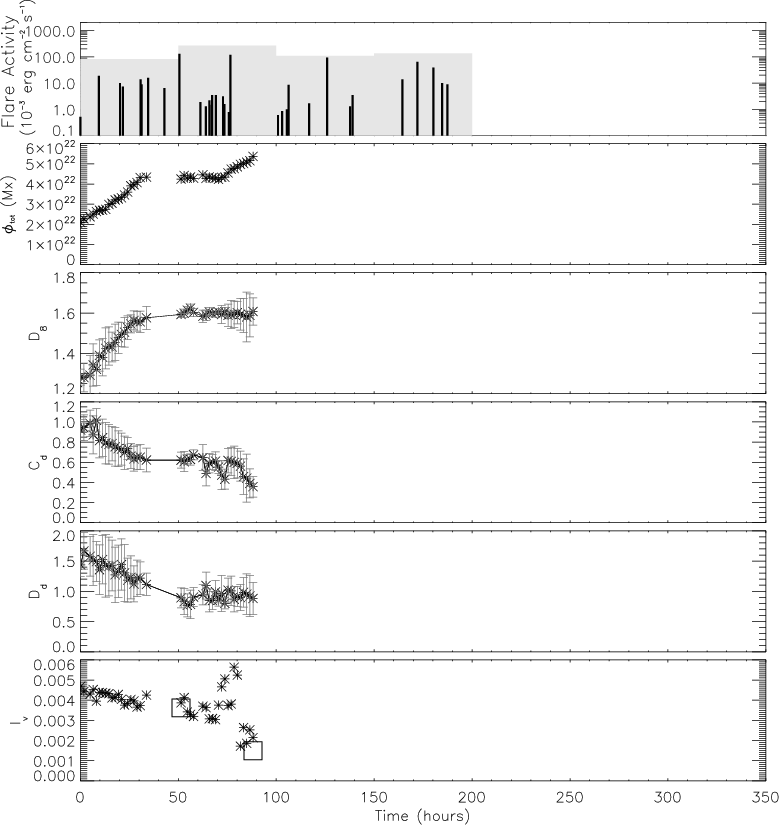

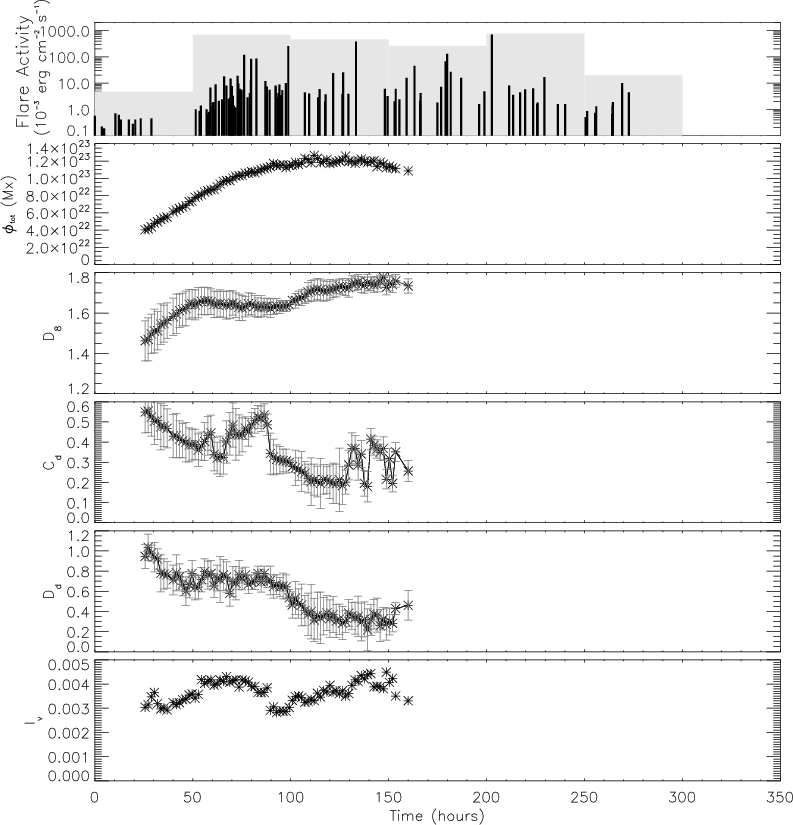

<td class="img-txt"><span class="bold">Figure A.2:</span><p>
Flare activity,
<!-- MATH: $\Phi_{\rm tot}$ -->
      <IMG SRC="img2.png" ALT="$\Phi _{\rm tot}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="24">,
      <i>D</i><sub>8</sub>, <IMG SRC="img3.png" ALT="$C_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">,
      <IMG SRC="img4.png" ALT="$D_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">
and <i>I</i><sub><i>v</i></sub> vs. time for NOAA 9236.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=7&DOI=10.1051/0004-6361/200912044" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>

<p></p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig7"></A><!-- end Label--><A NAME="925"></A><A NAME="figure734" HREF="img52.png"><IMG SRC="Timg52.png" ALT="\begin{figure}
\par\includegraphics[height=14cm]{12044f31.ps}
\end{figure}" HEIGHT="158" WIDTH="151"></A><!-- HTML Figure number: 8 -->
</td>

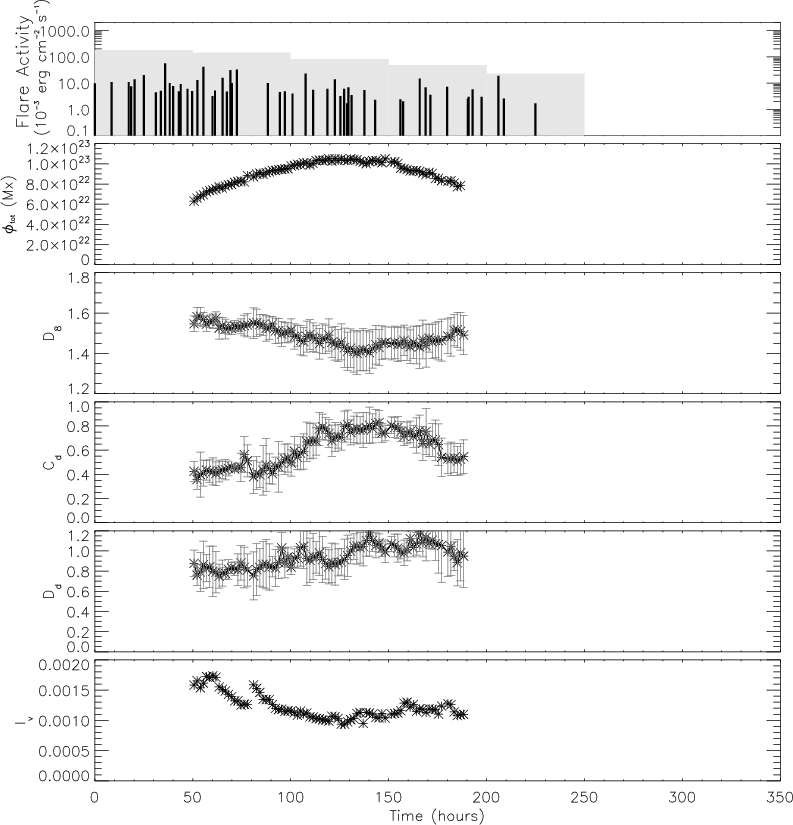

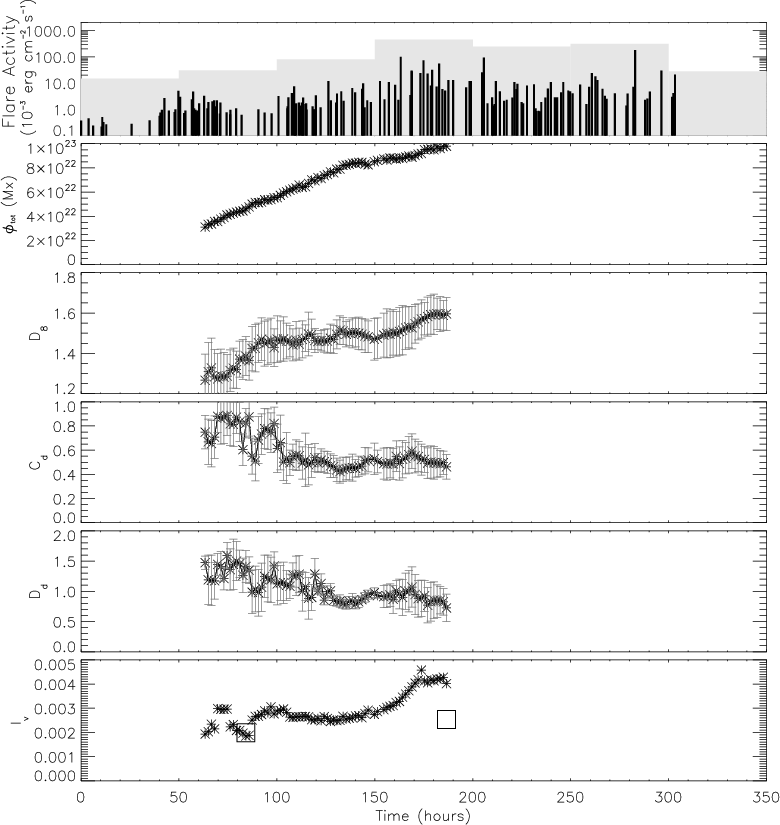

<td class="img-txt"><span class="bold">Figure A.3:</span><p>
Flare activity,
<!-- MATH: $\Phi_{\rm tot}$ -->
      <IMG SRC="img2.png" ALT="$\Phi _{\rm tot}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="24">,
      <i>D</i><sub>8</sub>, <IMG SRC="img3.png" ALT="$C_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">,
      <IMG SRC="img4.png" ALT="$D_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">
and <i>I</i><sub><i>v</i></sub> vs. time for NOAA 9690.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=8&DOI=10.1051/0004-6361/200912044" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>

<p></p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig8"></A><!-- end Label--><A NAME="926"></A><A NAME="figure742" HREF="img53.png"><IMG SRC="Timg53.png" ALT="\begin{figure}
\par\includegraphics[height=14cm]{12044f32.ps}
\end{figure}" HEIGHT="158" WIDTH="149"></A><!-- HTML Figure number: 9 -->
</td>

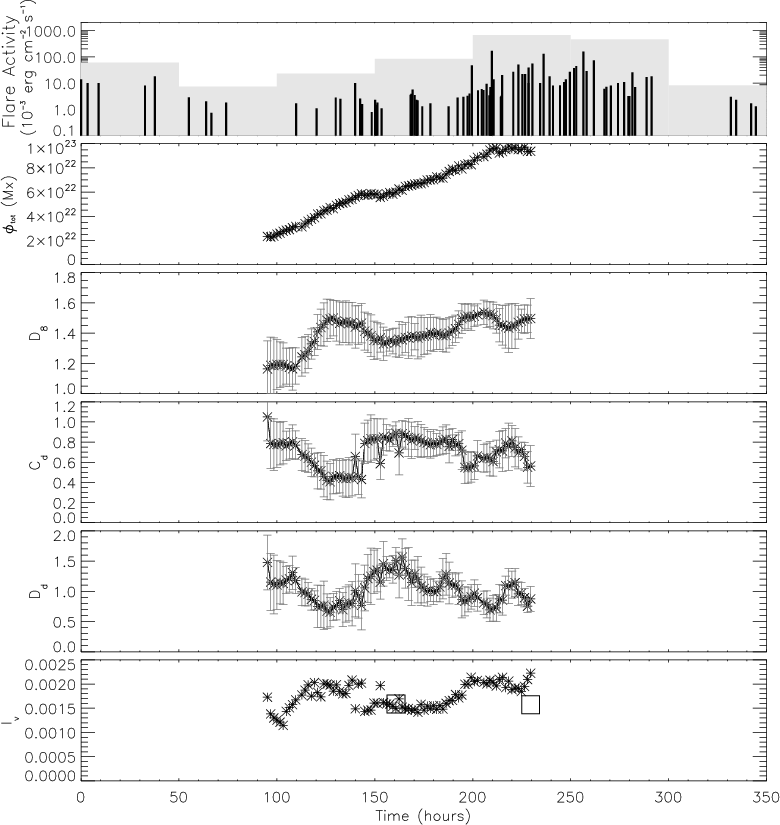

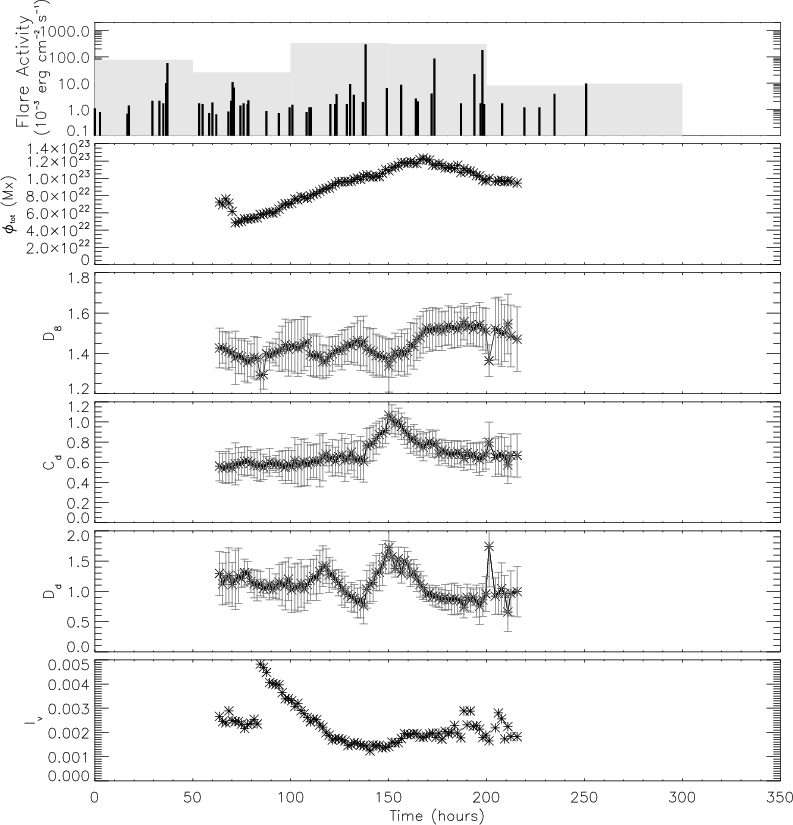

<td class="img-txt"><span class="bold">Figure A.4:</span><p>
Flare activity,
<!-- MATH: $\Phi_{\rm tot}$ -->
      <IMG SRC="img2.png" ALT="$\Phi _{\rm tot}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="24">,
      <i>D</i><sub>8</sub>, <IMG SRC="img3.png" ALT="$C_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">,
      <IMG SRC="img4.png" ALT="$D_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">
and <i>I</i><sub><i>v</i></sub> vs. time for NOAA 9733.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=9&DOI=10.1051/0004-6361/200912044" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>

<p></p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig9"></A><!-- end Label--><A NAME="927"></A><A NAME="figure750" HREF="img54.png"><IMG SRC="Timg54.png" ALT="\begin{figure}
\par\includegraphics[height=14cm]{12044f33.ps}
\end{figure}" HEIGHT="158" WIDTH="151"></A><!-- HTML Figure number: 10 -->
</td>

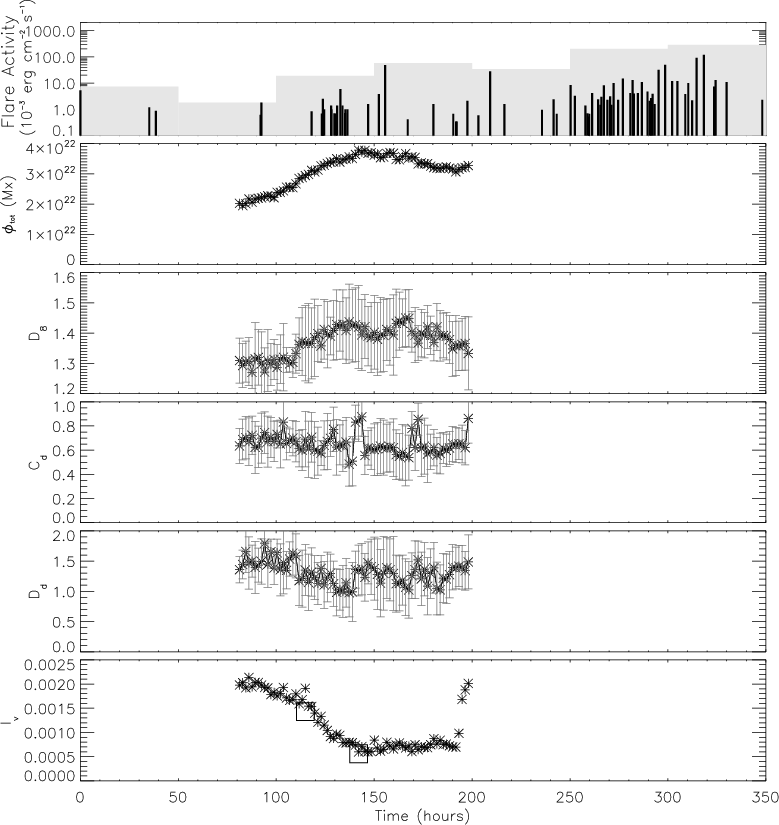

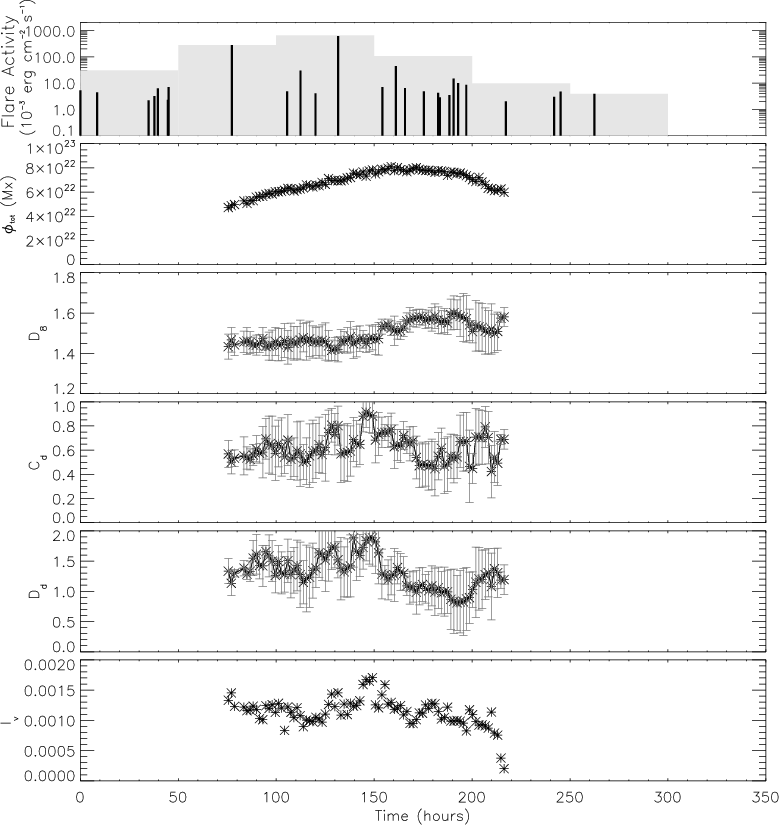

<td class="img-txt"><span class="bold">Figure A.5:</span><p>
Flare activity,
<!-- MATH: $\Phi_{\rm tot}$ -->
      <IMG SRC="img2.png" ALT="$\Phi _{\rm tot}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="24">,
      <i>D</i><sub>8</sub>, <IMG SRC="img3.png" ALT="$C_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">,
      <IMG SRC="img4.png" ALT="$D_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">
and <i>I</i><sub><i>v</i></sub> vs. time for NOAA 10030.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=10&DOI=10.1051/0004-6361/200912044" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>

<p></p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig10"></A><!-- end Label--><A NAME="928"></A><A NAME="figure758" HREF="img55.png"><IMG SRC="Timg55.png" ALT="\begin{figure}
\par\includegraphics[height=14cm]{12044f34.ps}
\end{figure}" HEIGHT="158" WIDTH="151"></A><!-- HTML Figure number: 11 -->
</td>

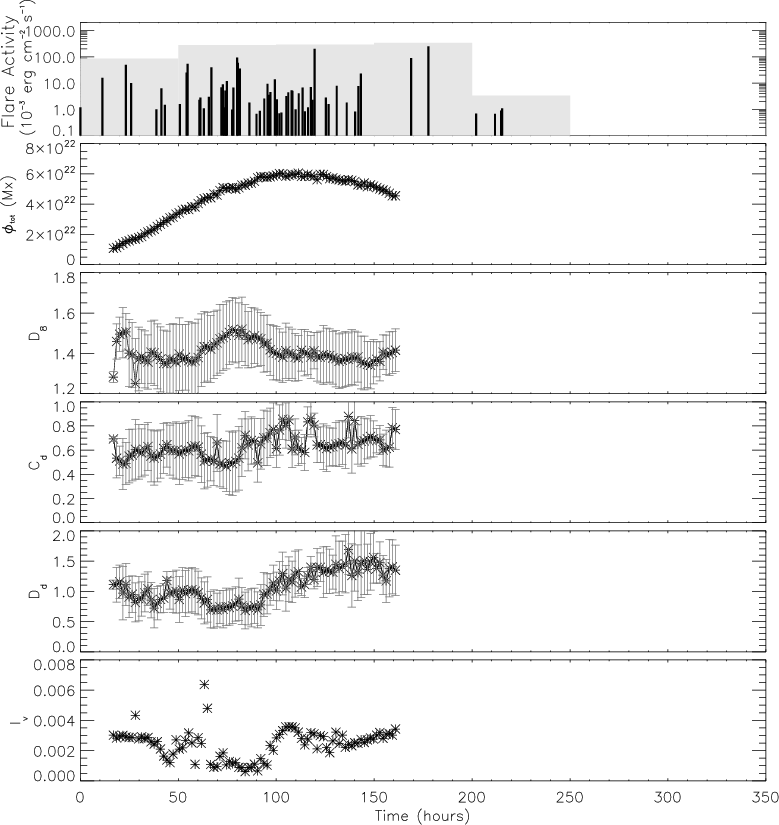

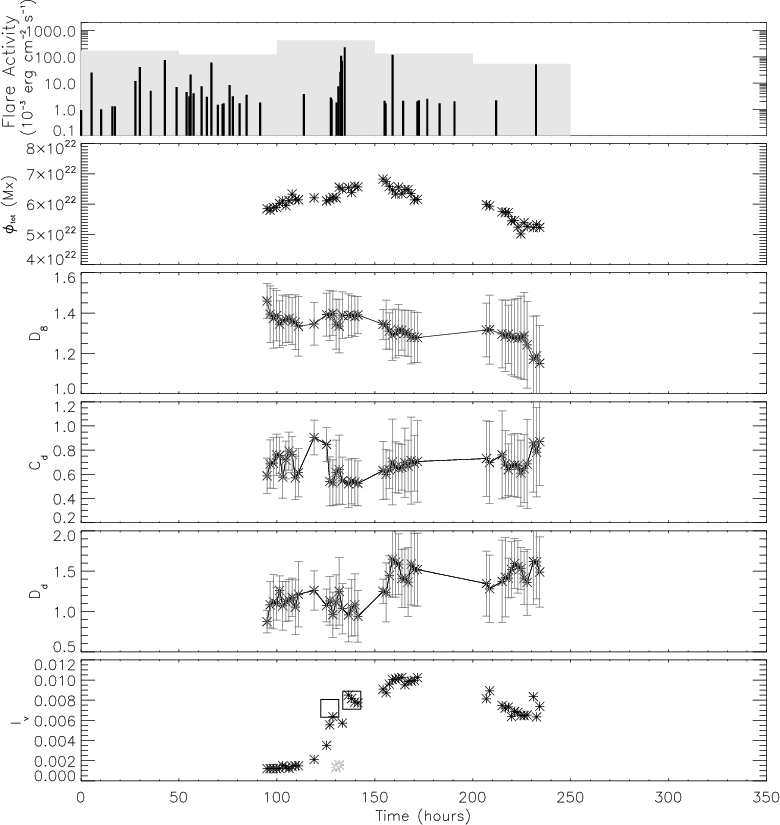

<td class="img-txt"><span class="bold">Figure A.6:</span><p>
Flare activity,
<!-- MATH: $\Phi_{\rm tot}$ -->
      <IMG SRC="img2.png" ALT="$\Phi _{\rm tot}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="24">,
      <i>D</i><sub>8</sub>, <IMG SRC="img3.png" ALT="$C_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">,
      <IMG SRC="img4.png" ALT="$D_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">
and <i>I</i><sub><i>v</i></sub> vs. time for NOAA 10039.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=11&DOI=10.1051/0004-6361/200912044" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>

<p></p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig11"></A><!-- end Label--><A NAME="929"></A><A NAME="figure766" HREF="img56.png"><IMG SRC="Timg56.png" ALT="\begin{figure}
\par\includegraphics[height=14cm]{12044f35.ps}
\end{figure}" HEIGHT="158" WIDTH="149"></A><!-- HTML Figure number: 12 -->
</td>

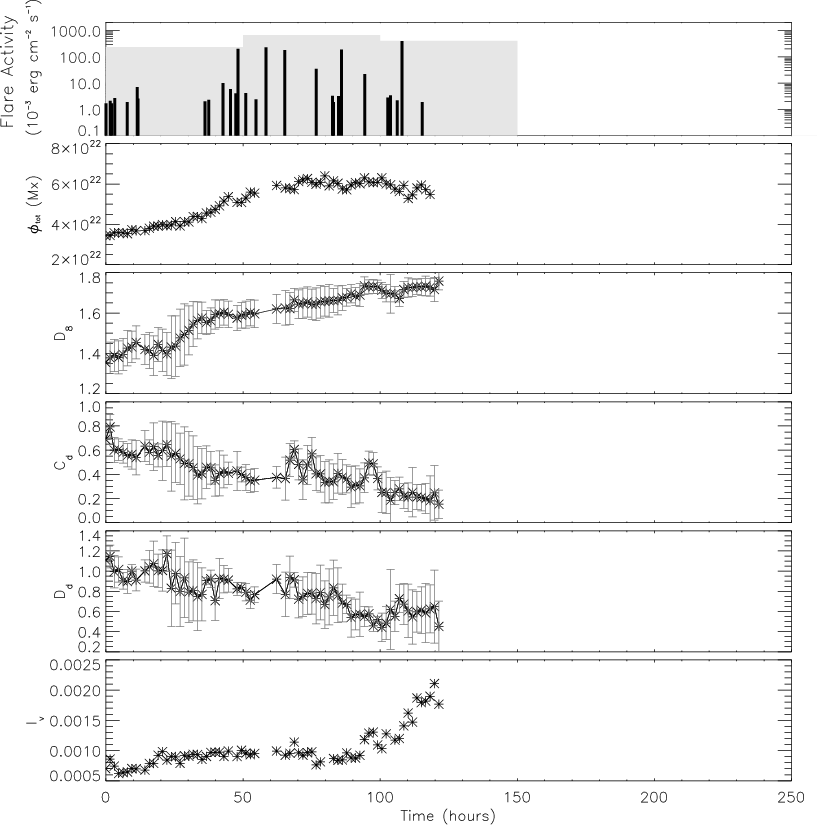

<td class="img-txt"><span class="bold">Figure A.7:</span><p>
Flare activity,
<!-- MATH: $\Phi_{\rm tot}$ -->
      <IMG SRC="img2.png" ALT="$\Phi _{\rm tot}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="24">,
      <i>D</i><sub>8</sub>, <IMG SRC="img3.png" ALT="$C_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">,
      <IMG SRC="img4.png" ALT="$D_{\rm d}$" ALIGN="MIDDLE" BORDER="0" HEIGHT="26" WIDTH="19">
and <i>I</i><sub><i>v</i></sub> vs. time for NOAA 10314.
</td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=12&DOI=10.1051/0004-6361/200912044" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>

<p></p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig12"></A><!-- end Label--><A NAME="930"></A><A NAME="figure774" HREF="img57.png"><IMG SRC="Timg57.png" ALT="\begin{figure}
\par\includegraphics[height=14cm]{12044f36.ps}
\end{figure}" HEIGHT="158" WIDTH="149"></A><!-- HTML Figure number: 13 -->
</td>

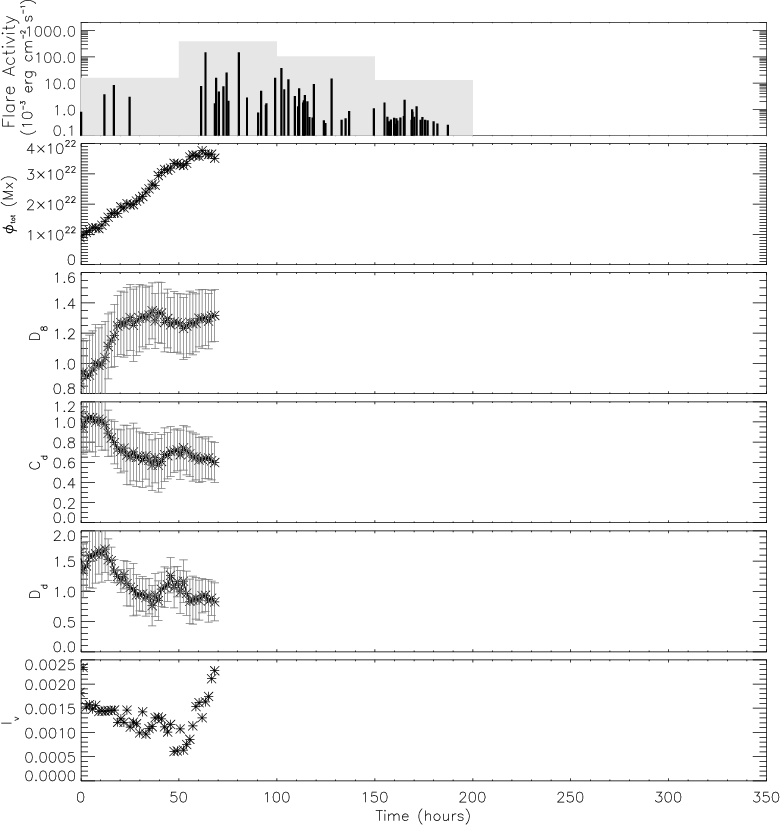

<td class="img-txt"><span class="bold">Figure A.8:</span><p>
