Online Material

Appendix A: Tables

Table A.1:   The other Galactic Bulge PNe observed with Spitzer/IRS (program $\char93 $3633).

Table A.2:   The rest of PNe (non-Galactic Bulge) observed within Spitzer/IRS program $\char93 $3633.

Appendix B: Spectra

 \begin{figure}
\par\includegraphics[width=18cm,clip]{1457Fig3.eps}

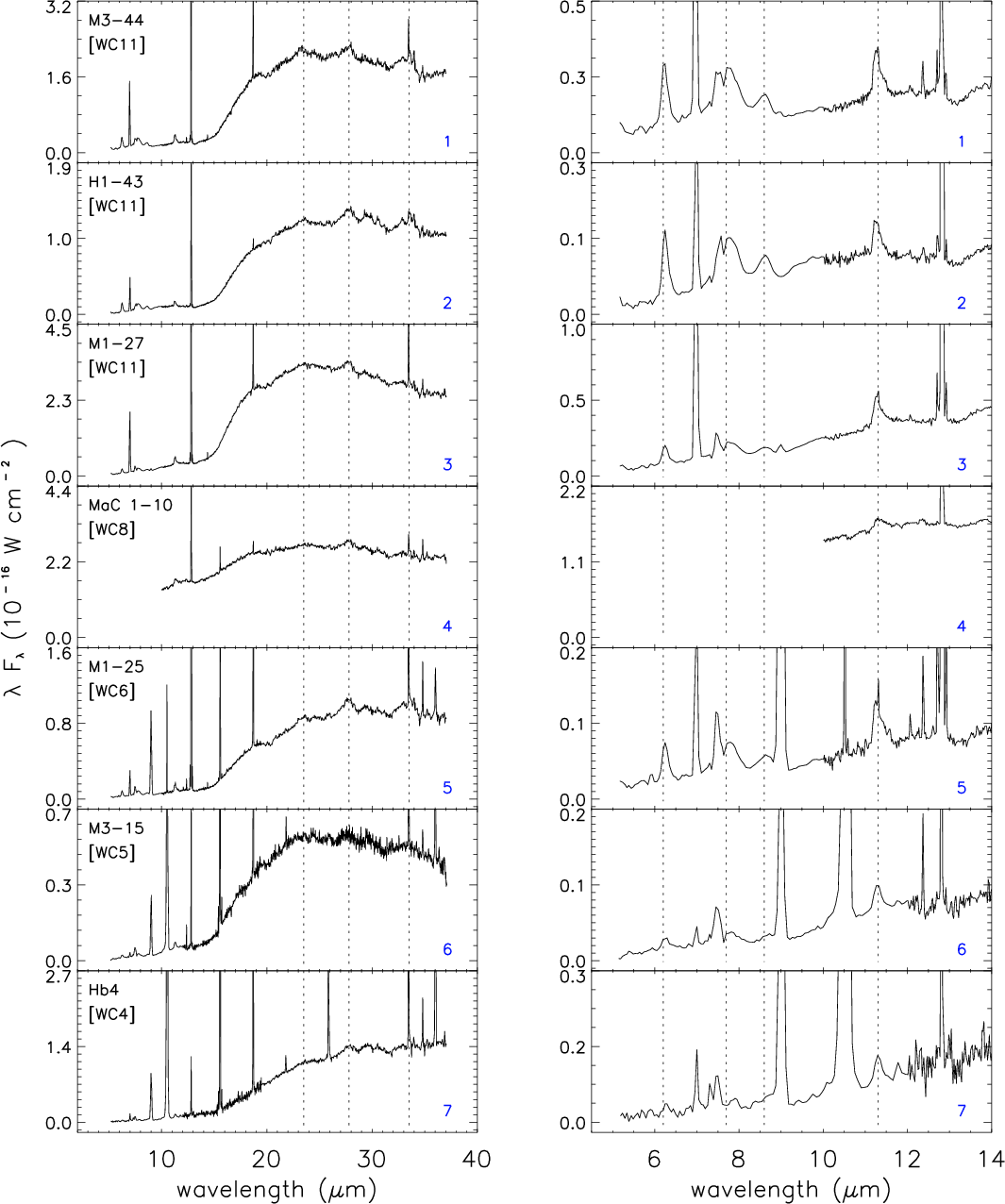

\end{figure} Figure B.1:

Spitzer/IRS spectra of Galactic Bulge PNe, which show dual-dust chemistry (see Table 1). The spectral type is shown under name of PN. Note the simultaneous detection of PAH emission features in the 6-14 $\mu $m range (dashed vertical lines at 6.2, ``7.7'', 8.6 and 11.3 $\mu $m - right panels) together with crystalline silicate features (dashed vertical lines at 23.5, 27.5 and 33.8 $\mu $m - left panels).

Open with DEXTER

 \begin{figure}
\par\includegraphics[width=18cm,clip]{1457Fig4.eps}

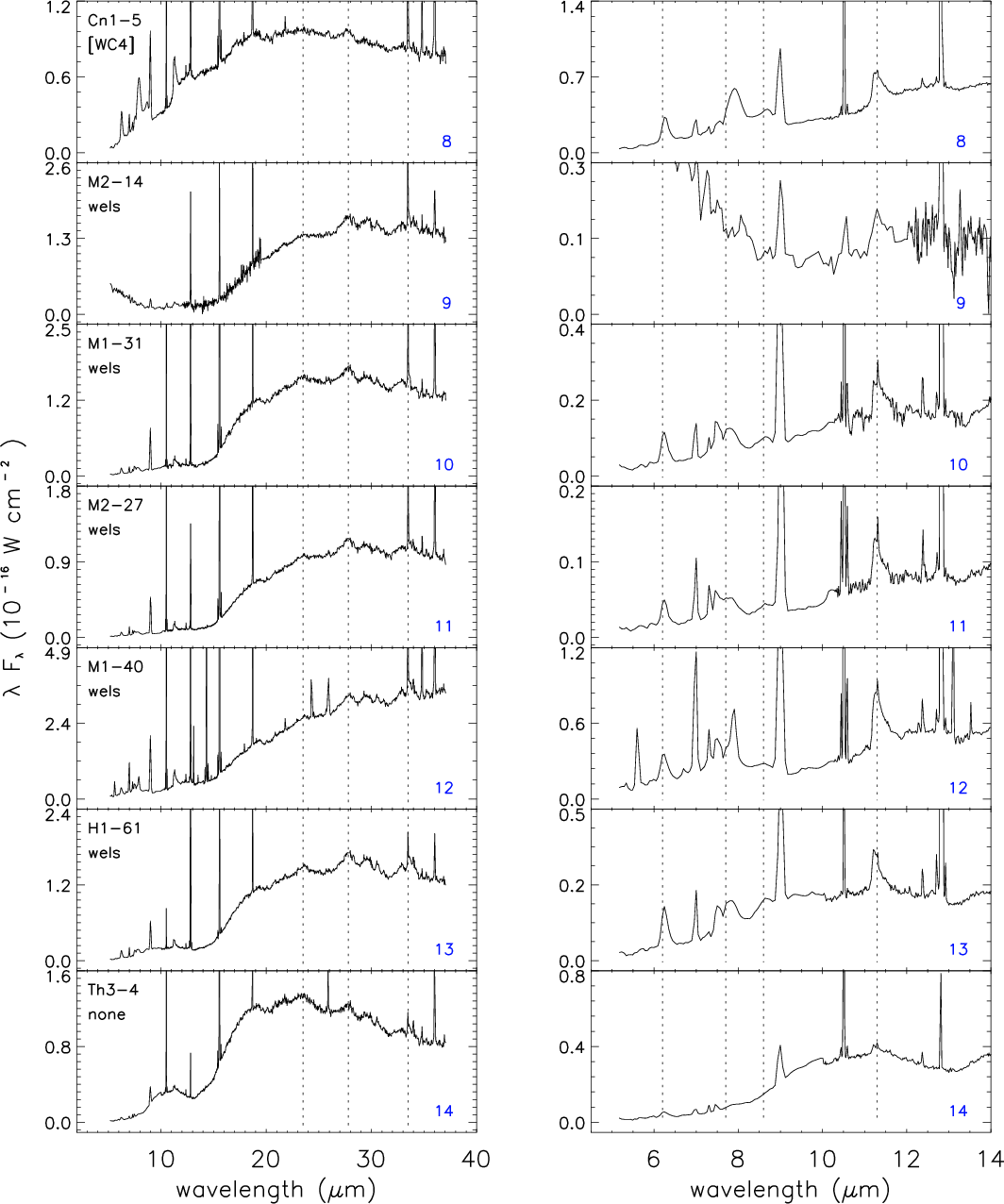

\end{figure} Figure B.2:

Spitzer/IRS spectra of Galactic Bulge PNe, which show dual-dust chemistry cont. (see Table 1). The spectral type is shown under name of PN; none - means neither [WC] nor wels. Note the simultaneous detection of PAH emission features in the 6-14 $\mu $m range (dashed vertical lines at 6.2, ``7.7'', 8.6 and 11.3 $\mu $m - right panels) together with crystalline silicate features (dashed vertical lines at 23.5, 27.5 and 33.8 $\mu $m - left panels).

Open with DEXTER

 \begin{figure}
\par\includegraphics[width=18cm,clip]{1457Fig5.eps}

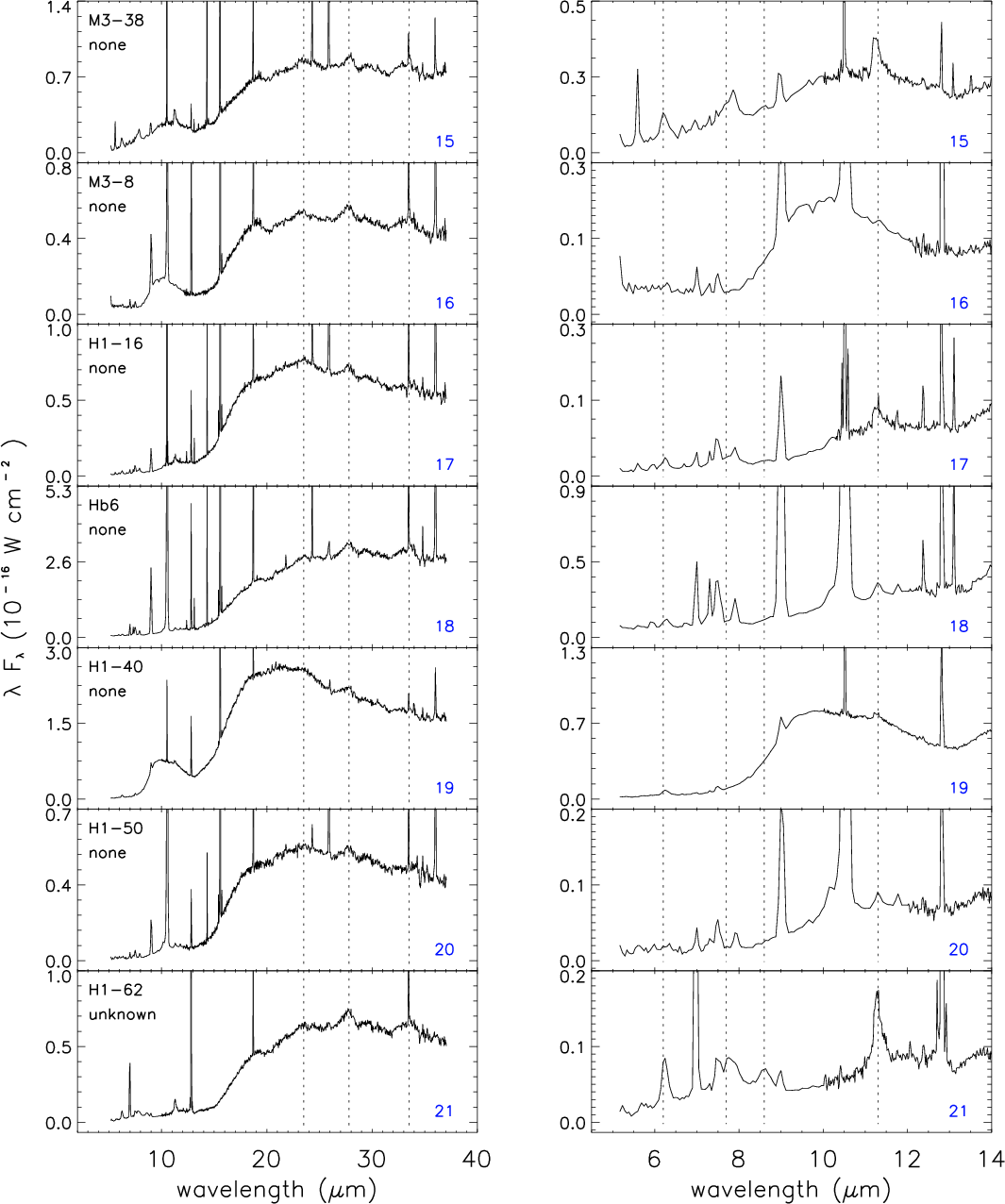

\end{figure} Figure B.3:

Spitzer/IRS spectra of Galactic Bulge PNe, which show dual-dust chemistry cont. (see Table 1). The spectral type is shown under name of PN; none - means neither [WC] nor wels. Note the simultaneous detection of PAH emission features in the 6-14 $\mu $m range (dashed vertical lines at 6.2, ``7.7'', 8.6 and 11.3 $\mu $m - right panels) together with crystalline silicate features (dashed vertical lines at 23.5, 27.5 and 33.8 $\mu $m - left panels).

Open with DEXTER

 \begin{figure}
\par\includegraphics[width=18cm]{1457Fig6.eps}

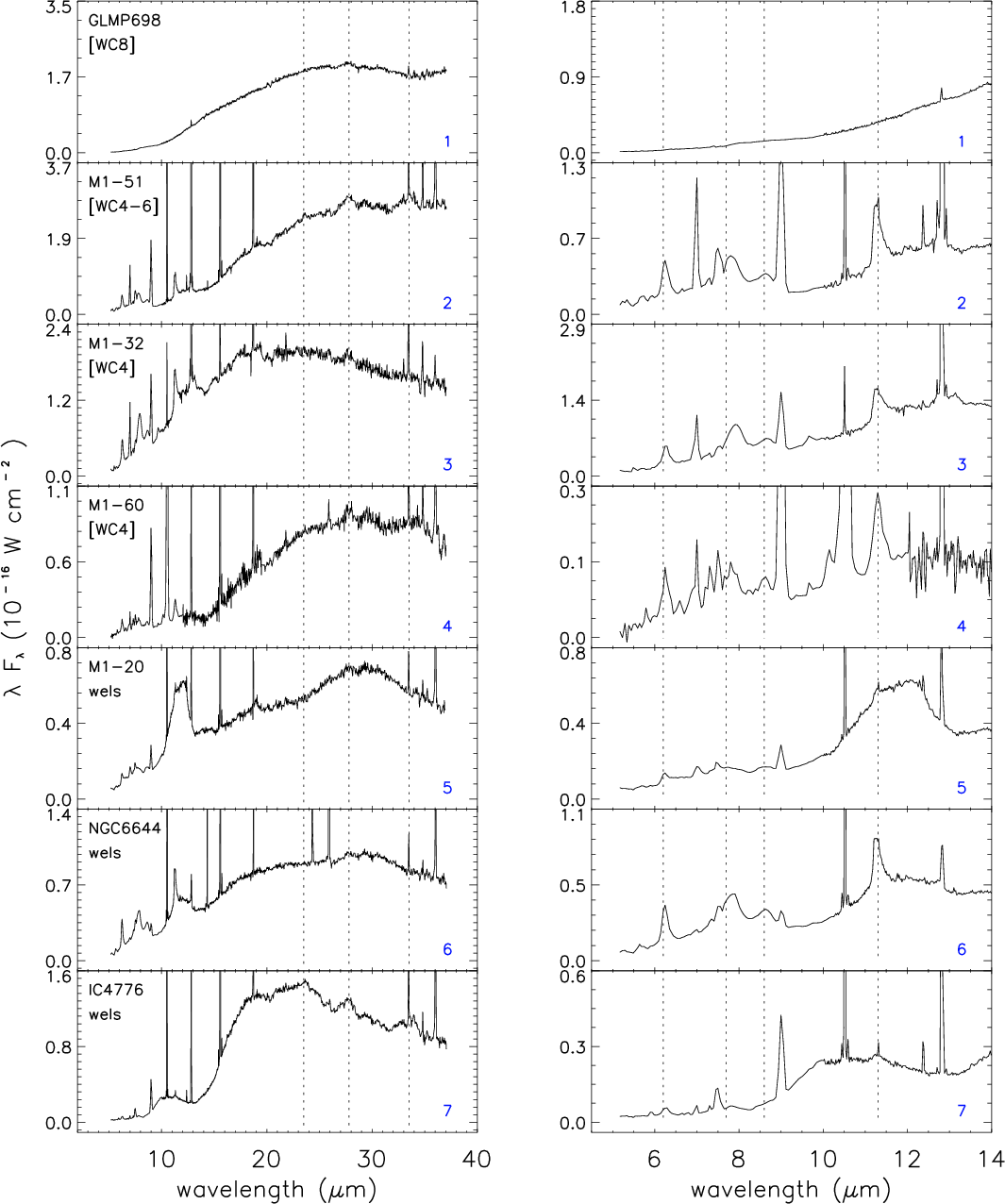

\end{figure} Figure B.4:

Spitzer/IRS spectra of Galactic Bulge PNe, which do not show dual-dust chemistry (see Table A.1). The spectral type is shown under name of PN; none - means neither [WC] nor wels. Dashed vertical lines at 23.5, 27.5 and 33.8 $\mu $m on the left panels mark position of crystalline silicate bands, while those at 6.2, ``7.7'', 8.6 and 11.3 $\mu $m on the right panels show position of PAH features.

Open with DEXTER
 \begin{figure}
\par\includegraphics[width=18cm]{1457Fig7.eps}

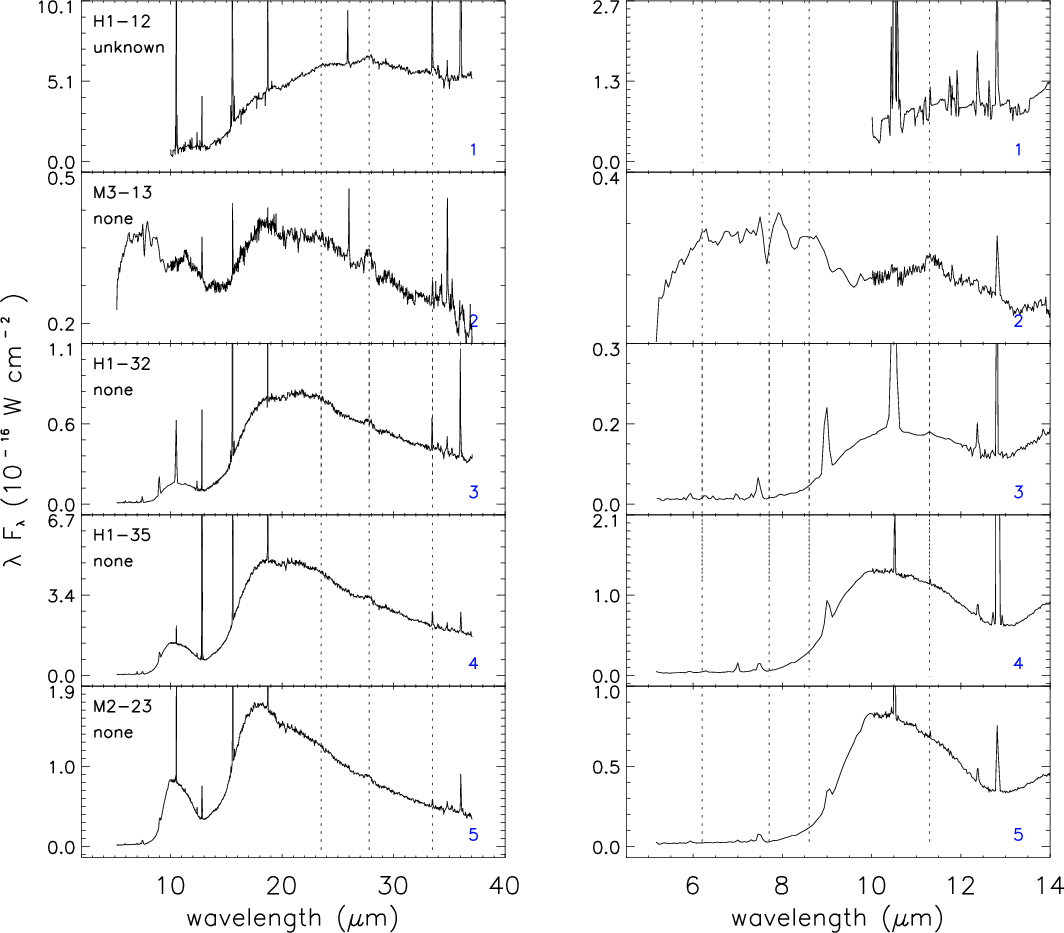

\end{figure} Figure B.5:

Spitzer/IRS spectra of PNe, which are classified here as non-Galactic Bulge sources (see Table A.2). The spectral type is shown under name of PN. Dashed vertical lines at 23.5, 27.5 and 33.8 $\mu $m on the left panels mark position of crystalline silicate bands, while those at 6.2, ``7.7'', 8.6 and 11.3 $\mu $m on the right panels show position of PAH features.

Open with DEXTER

 \begin{figure}
\par\includegraphics[width=18cmh]{1457Fig8.eps}

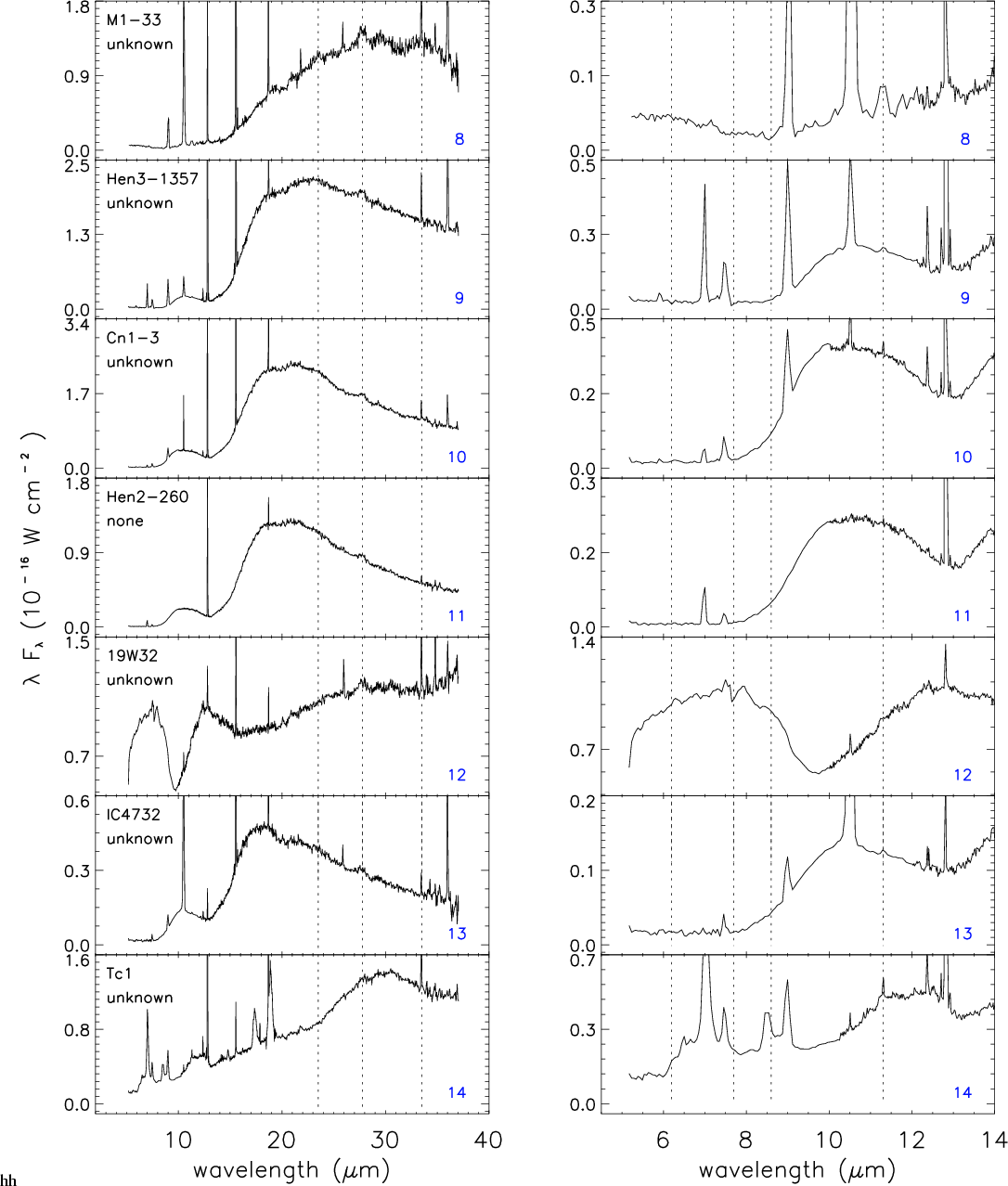

\end{figure} Figure B.6:

Spitzer/IRS spectra of PNe, which are classified here as non-Galactic Bulge sources cont. (see Table A.2). The spectral type is shown under name of PN; none - means neither [WC] nor wels. Dashed vertical lines at 23.5, 27.5, and 33.8 $\mu $m on the left panels mark position of crystalline silicate bands, while those at 6.2, ``7.7'', 8.6, and 11.3 $\mu $m on the right panels show position of PAH features.

Open with DEXTER
